UML for Agile Teams: A Comprehensive Guide

Introduction

Unified Modeling Language (UML) has long been associated with heavyweight, documentation-driven development processes. However, when applied thoughtfully, UML can be a powerful tool for Agile teams. The key is using UML as a communication aid rather than a documentation burden—creating just enough visual models to enhance understanding without slowing down delivery.

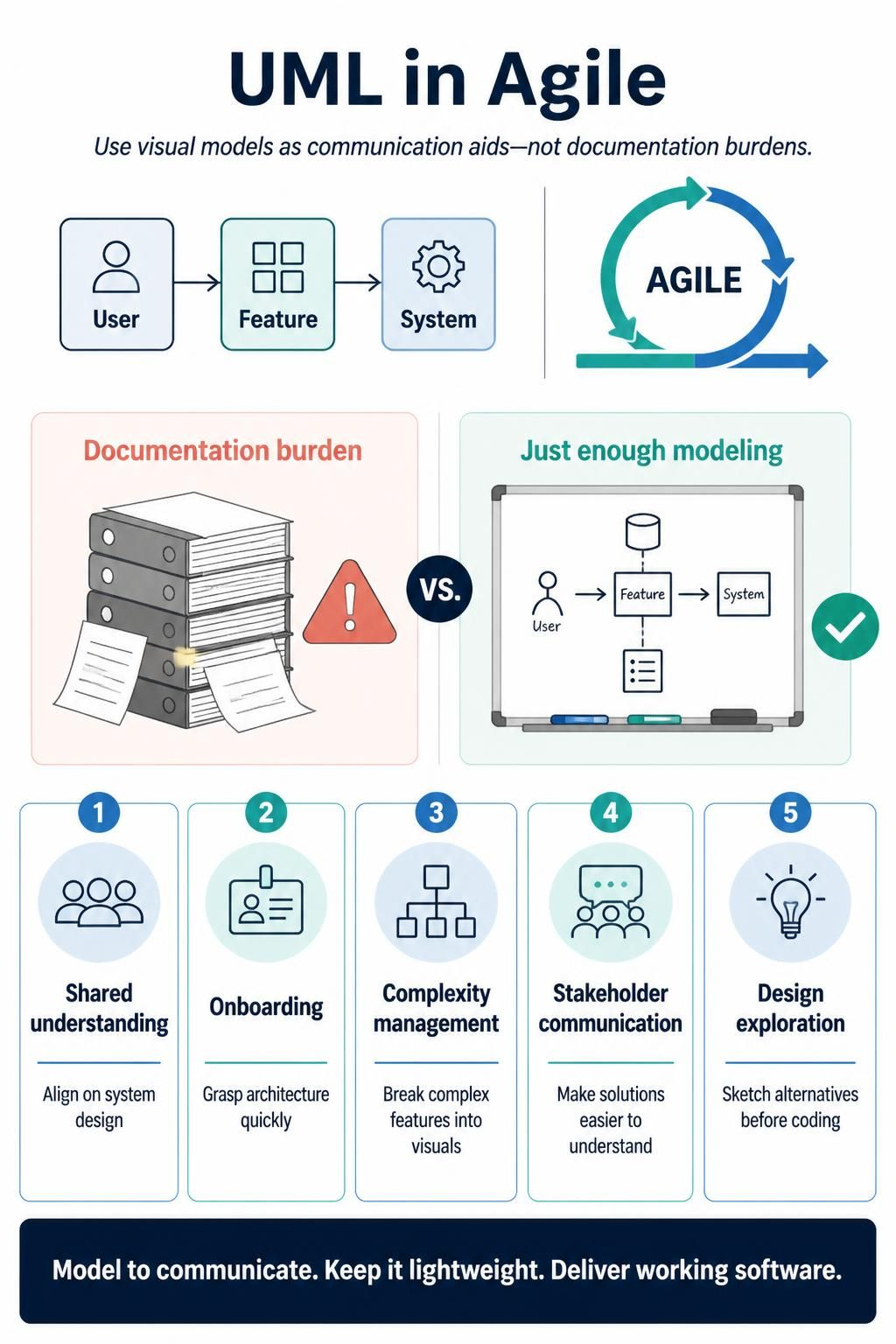

Why UML in Agile?

Agile teams value working software over comprehensive documentation, but they also value clear communication. UML diagrams serve several purposes in Agile contexts:

• Shared understanding: Visual models help team members align on system design

• Onboarding: New team members can quickly grasp architecture and relationships

• Complexity management: Breaking down complex features into visual representations

• Stakeholder communication: Non-technical stakeholders can better understand proposed solutions

• Design exploration: Quickly sketching alternatives before committing to code

Core Principles for Agile UML

1. Just Enough, Just in Time

Create diagrams only when they add value. Don’t diagram everything upfront. Create models when you encounter complexity that’s hard to discuss verbally or in text alone.

2. Whiteboard Over Documentation

Prefer sketching on whiteboards, digital collaboration tools, or napkins over creating formal, polished diagrams. The goal is conversation, not perfection.

3. Evolve with the Code

Treat diagrams as living artifacts. Update them when the code changes significantly, or discard them if they’re no longer relevant. Avoid letting diagrams become outdated relics.

4. Focus on Communication, Not Completeness

A good Agile UML diagram communicates the specific point you need to make. It doesn’t need to show every attribute, method, or relationship.

5. Collaborative Creation

Create diagrams together during refinement sessions, design discussions, or sprint planning. The act of drawing together builds shared understanding.

Essential UML Diagrams for Agile Teams

Not all 14 UML diagram types are equally useful for Agile teams. Focus on these high-value diagrams:

1. Class Diagrams

When to use: Understanding domain models, defining data structures, clarifying relationships between entities

Agile approach:

• Show only relevant classes for the current feature or sprint

• Include key attributes and methods that matter for the discussion

• Use simplified notation—skip visibility markers unless important

• Focus on relationships (associations, inheritance, composition)

Example scenario: During backlog refinement for a new e-commerce feature, sketch classes for Product, Cart, and Order to clarify how they interact.

2. Sequence Diagrams

When to use: Understanding interactions between components, clarifying API calls, debugging complex flows

Agile approach:

• Model one specific user story or interaction path

• Show only the objects/components involved in that flow

• Keep it horizontal—limit to 5-7 lifelines for readability

• Use for discussing integration points or asynchronous behavior

Example scenario: Mapping out the sequence of events when a user checks out, showing interactions between frontend, payment service, inventory service, and notification service.

3. Activity Diagrams

When to use: Modeling business processes, workflow logic, decision points

Agile approach:

• Focus on one process or user journey

• Use swimlanes to show responsibility across teams or systems

• Keep decision points simple

• Great for acceptance criteria clarification

Example scenario: Diagramming the approval workflow for expense reports, showing different paths based on amount and department.

4. Component Diagrams

When to use: Understanding system architecture, microservices boundaries, deployment concerns

Agile approach:

• Show high-level components and their interfaces

• Useful for discussing technical debt or refactoring opportunities

• Helps visualize dependencies between services

Example scenario: During architectural review, showing how the user authentication component interacts with the user profile service and session management.

5. State Machine Diagrams

When to use: Modeling objects with complex lifecycle states, order processing, workflow engines

Agile approach:

• Focus on one entity with meaningful state transitions

• Clearly label triggers and conditions

• Helpful for identifying edge cases

Example scenario: Modeling an order’s states (Created, Paid, Shipped, Delivered, Returned) and valid transitions between them.

6. Use Case Diagrams

When to use: Initial project scoping, stakeholder alignment, identifying actors and goals

Agile approach:

• Use sparingly—often user stories are sufficient

• Helpful early in a project to identify scope boundaries

• Keep at a high level; don’t drill into details

Example scenario: Early discovery phase to identify all actor types (Customer, Admin, Support Agent) and their primary goals.

When NOT to Use UML

Avoid UML when:

• The concept is simple enough to explain in words

• You’re creating diagrams nobody will reference again

• The diagram takes longer to create than the feature takes to build

• You’re documenting something that’s already clear in the code

• Stakeholders won’t understand or engage with the diagram

Practical Integration into Agile Ceremonies

Backlog Refinement

• Sketch class or sequence diagrams to clarify complex stories

• Use activity diagrams to walk through acceptance criteria

• Capture decisions and assumptions visually

Sprint Planning

• Use component diagrams to identify dependencies between stories

• Clarify technical approach with quick sketches

• Estimate more accurately by visualizing complexity

Daily Standups

• Reference existing diagrams when discussing blockers

• Update diagrams if implementation diverges from design

Sprint Reviews

• Show before/after diagrams to demonstrate architectural improvements

• Use visuals to explain technical achievements to stakeholders

Retrospectives

• Identify where better visualization could have prevented misunderstandings

• Discuss whether certain diagrams added value or were waste

Design Sessions

• Whiteboard multiple alternatives using UML notation

• Vote on approaches based on clarity and feasibility

• Capture agreed-upon design for future reference

Tools and Techniques (Without Specific Tool Recommendations)

Low-Fidelity Approaches

• Whiteboards and markers

• Paper and pencil

• Napkin sketches

• Sticky notes arranged on walls

Digital Collaboration

• Shared digital whiteboards

• Screen sharing during remote sessions

• Simple drawing tools built into collaboration platforms

• Text-based UML that can be version-controlled

Version Control for Diagrams

• Store diagrams alongside code in repositories

• Use formats that support diffing and merging

• Treat diagram updates as part of pull requests when significant

Common Pitfalls and How to Avoid Them

Pitfall 1: Over-Engineering Diagrams

Problem: Spending hours perfecting notation, colors, and layout
Solution: Set time limits. If a diagram takes more than 15-20 minutes to create, it’s probably too detailed.

Pitfall 2: Creating Diagrams No One Reads

Problem: Generating comprehensive documentation that becomes obsolete
Solution: Only create diagrams that serve an immediate communication need. Ask: “Who needs this, and when?”

Pitfall 3: Ignoring Diagrams After Creation

Problem: Diagrams diverge from implementation
Solution: Either keep diagrams updated as part of definition of done, or explicitly mark them as “snapshot in time” and accept they’ll become historical references.

Pitfall 4: Using UML as a Substitute for Conversation

Problem: Sending diagrams instead of discussing designs
Solution: Use diagrams as conversation starters, not replacements for dialogue. Walk through diagrams together.

Pitfall 5: Requiring UML Expertise

Problem: Team members feel excluded because they don’t know UML notation
Solution: Teach basics informally. Use simplified notation. Focus on concepts over strict syntax. Most people can understand boxes, arrows, and labels.

Scaling UML Across Multiple Teams

Architecture Decision Records (ADRs)

Include simple UML diagrams in ADRs to capture why certain architectural choices were made. This helps other teams understand context.

Interface Contracts

Use component or class diagrams to define APIs and interfaces between teams. This creates clear boundaries and expectations.

Onboarding Packages

Create a small set of key diagrams that help new team members understand the system. Keep this curated and updated.

Cross-Team Dependencies

Use sequence or component diagrams to visualize dependencies between teams’ services. This aids in coordination and identifies coupling.

Measuring Value

How do you know if UML is helping your Agile team?

Positive indicators:

• Fewer misunderstandings during implementation

• Faster onboarding for new team members

• Clearer technical discussions

• Reduced rework due to design flaws caught early

• Stakeholders better understand technical constraints

Negative indicators:

• Time spent on diagrams reduces velocity

• Team members ignore or complain about diagrams

• Diagrams are consistently outdated

• Creating diagrams becomes a bureaucratic requirement

Adapting to Your Context

Every team is different. Consider these factors when deciding how to use UML:

Team maturity: Experienced teams may need fewer diagrams. Junior-heavy teams may benefit more from visual models.

System complexity: Simple CRUD applications rarely need extensive modeling. Complex distributed systems benefit from visualizing interactions.

Regulatory environment: Some industries require certain documentation. Find the minimum viable UML that satisfies compliance.

Remote vs. co-located: Remote teams may rely more on digital diagrams. Co-located teams can leverage physical whiteboards.

Stakeholder technical literacy: More technical stakeholders can engage with detailed diagrams. Business stakeholders need simpler, higher-level views.

Quick Reference: Which Diagram When?

Situation	Recommended Diagram
Understanding data relationships	Class Diagram
Clarifying API interactions	Sequence Diagram
Modeling business workflows	Activity Diagram
Explaining system architecture	Component Diagram
Tracking object lifecycle	State Machine Diagram
Initial scope discovery	Use Case Diagram
Deployment concerns	Deployment Diagram
Parallel processes	Activity Diagram with Swimlanes

Conclusion

UML in Agile is about pragmatic communication, not comprehensive documentation. The most successful Agile teams use UML selectively, collaboratively, and lightly. They create diagrams when visual thinking adds value, keep them simple and focused, and aren’t afraid to discard them when they’ve served their purpose.

Remember: the goal isn’t to produce perfect UML diagrams. The goal is to build the right software, and sometimes a quick sketch helps everyone get on the same page faster than words alone. Start small, experiment with what works for your team, and let your practices evolve based on actual value delivered.

The best UML diagram is the one that prevents a misunderstanding, accelerates a decision, or clarifies a complex concept—and then gets out of the way so the team can focus on delivering value.
