Business Process Model and Notation, or BPMN, is a standardized visual language for describing how work gets done. It helps business analysts, managers, developers, and process participants understand the same process without relying on lengthy written procedures.

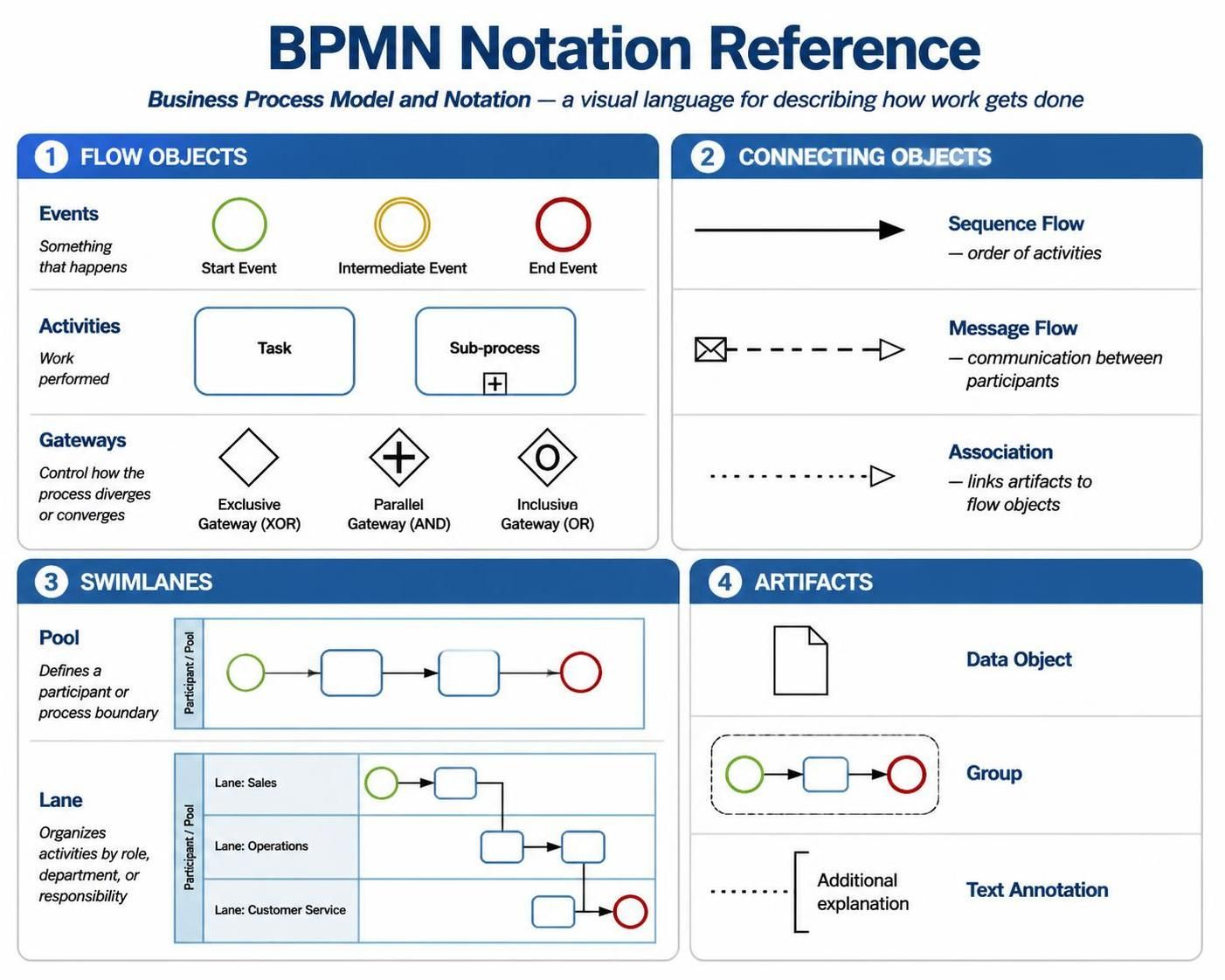

A BPMN diagram is built from four broad categories:

Flow objects: Events, activities, and gateways
Connecting objects: Sequence flows, message flows, and associations
Swimlanes: Pools and lanes
Artifacts: Data objects, groups, and text annotations

This guide focuses on the most important category: BPMN flow objects. Flow objects describe what happens in a process, what work is performed, and how the process moves from one path to another.

1. What Are BPMN Flow Objects?

Flow objects are the central elements of a BPMN process diagram. They are connected by sequence flows and represent the behavior of a process.

There are three types:

Flow object	Basic shape	Main purpose
Event	Circle	Something that happens
Activity	Rounded rectangle	Work that is performed
Gateway	Diamond	A decision, split, merge, or synchronization point

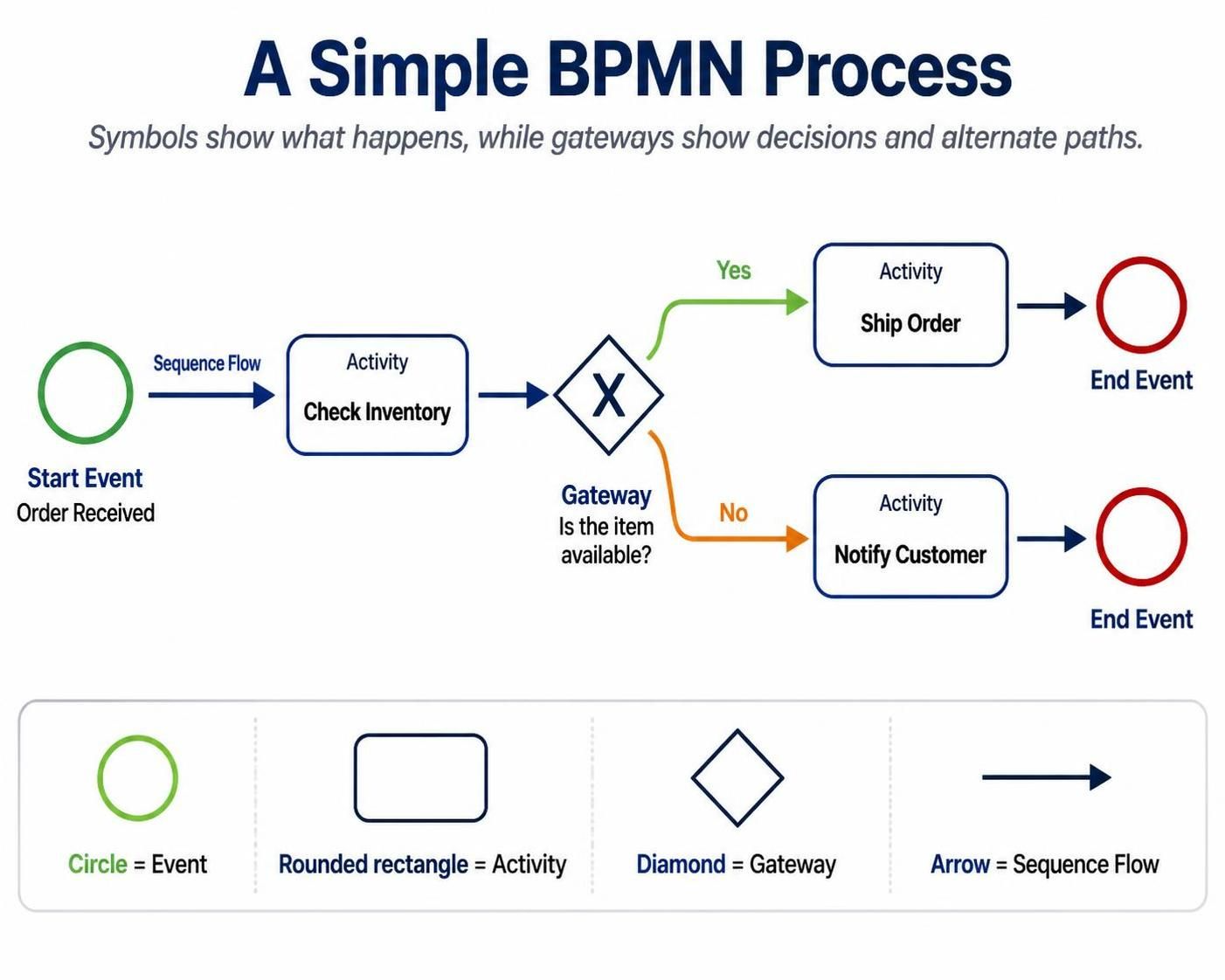

A simple process might look conceptually like this:

Start Event → Activity → Gateway → Activity → End Event

For example:

Order Received → Check Inventory → Is the item available?
                                      ├── Yes → Ship Order
                                      └── No  → Notify Customer

The shapes are simple, but the symbols inside them provide additional meaning.

2. Events: Things That Happen

An event represents something that happens during the course of a process. Unlike an activity, an event is not work performed by a person or system. It may trigger a process, interrupt an activity, signal a condition, or indicate how a process ends.

Events are shown as circles. The border indicates where the event occurs in the process:

Event type	Border appearance	Meaning
Start event	Thin single line	Shows how a process begins
Intermediate event	Double line	Occurs between the start and end
End event	Thick single line	Shows how a process path ends

A start event can catch a trigger, such as an incoming message or a scheduled time. An intermediate event may wait for or send something. An end event produces the final result of a process path.

2.1 Start Events

A start event indicates the trigger that begins a process or subprocess.

It is drawn as a circle with a thin border.

Common examples include:

A customer submits an order
An employee submits a leave request
A timer reaches a scheduled date
A message arrives
A system detects a condition
A new case is created

None start event

A plain start circle means the process begins without a specifically modeled trigger.

○

Example:

○ → Review Application

Use a none start event when the precise trigger is either unknown, irrelevant, or intentionally left general.

Message start event

A message symbol inside the start event indicates that the process begins when a message is received.

Example:

◉ envelope symbol → Process Customer Request

Typical use cases:

Receiving an email
Receiving an API request
Receiving a purchase order
Receiving a request from another participant

Timer start event

A clock inside the start event indicates that the process begins according to a schedule or date.

Examples:

Start invoice generation every month
Begin a renewal process 30 days before expiration
Run a daily reconciliation process

Conditional start event

A conditional start event begins when a business condition becomes true.

Example:

Inventory level falls below reorder point

Signal start event

A signal start event begins when a broadcast signal is received. Unlike a message, a signal is generally not directed to one specific recipient.

Example:

Receive “Emergency Closure” signal → Close All Branches

Multiple start event

A multiple start event indicates that several different triggers can begin the same process.

For example, a support case might begin when:

A customer submits a web form
An agent enters a case manually
An automated monitoring system detects an issue

2.2 Intermediate Events

An intermediate event occurs after a process has started but before it has ended. It can pause the process, wait for something, send a message, create an exception path, or respond to a condition.

It is drawn with a double border.

Intermediate events can be:

Catching: Waiting for or receiving something
Throwing: Sending or producing something

A catching event generally has an unfilled or outline marker, while a throwing event generally uses a filled marker.

Timer intermediate event

A timer event represents a delay, deadline, duration, or recurring schedule.

Examples:

Wait three business days
Wait until a specific date
Escalate if no response arrives within 24 hours
Perform a recurring action while the process is active

Example:

Send Quote → Wait 3 Days → Check for Response

Message intermediate event

A message intermediate event either waits for a message or sends one.

Examples:

Send Approval Request → Wait for Approval Response

A message event is especially useful when a process interacts with another participant, department, organization, or system.

Error intermediate event

An error event represents an error condition that affects the normal process flow.

It is commonly used as a boundary event attached to an activity or subprocess.

Example:

Process Payment
      │
      └── Error → Handle Payment Failure

Escalation intermediate event

An escalation event indicates that an issue requires attention at a higher level without necessarily representing a technical failure.

Example:

Resolve Customer Complaint
      │
      └── Escalation → Supervisor Review

Conditional intermediate event

A conditional event waits until a specified condition becomes true.

Example:

Wait until customer account is verified

Signal intermediate event

A signal event broadcasts or receives a signal that may be relevant to multiple process participants.

Example:

Broadcast Product Recall Signal

Link intermediate event

A link event connects two distant points within the same process diagram without drawing a long sequence-flow line across the page.

Use link events carefully. They can improve diagram readability, but excessive use may make the process harder to follow.

Compensation intermediate event

A compensation event triggers corrective work to undo or compensate for an earlier activity.

Example:

Cancel Hotel Reservation

Compensation is different from an ordinary error path. It is specifically concerned with reversing or compensating for completed work.

2.3 Boundary Events

A boundary event is attached directly to the edge of an activity or subprocess. It represents something that can happen while that activity is in progress.

Example:

┌────────────────────┐
│ Process Application │
└────────────────────┘
          ○
          │
          └── Timeout → Escalate Case

Boundary events are useful for modeling:

Timeouts
Cancellations
Errors
Escalations
Incoming messages
Compensation
External signals

Interrupting boundary events

An interrupting boundary event stops the attached activity when it occurs.

Example:

Process Payment
      │
      └── Payment Error → Handle Failure

The payment activity ends when the error occurs.

Non-interrupting boundary events

A non-interrupting boundary event starts an additional path while the original activity continues.

It is usually shown with a dashed border.

Example:

Process Application
      │
      └── Timer reminder → Send Reminder

The application process continues while the reminder path runs.

This distinction is important:

Boundary event type	Effect on attached activity
Interrupting	Stops the activity
Non-interrupting	Leaves the activity running

2.4 End Events

An end event indicates the conclusion of a process path. It is drawn as a circle with a thick border.

A process may have more than one end event because different outcomes may terminate the process.

Examples:

Order completed
Request rejected
Payment failed
Case canceled
Customer notified
Process completed with compensation

None end event

A plain end event indicates that the path has finished without specifying a particular result.

●

Message end event

A message end event sends a message when the process ends.

Example:

Order Approved → Send Confirmation → Message End

Error end event

An error end event ends the process by throwing an error to a higher-level process or handler.

Use it for process-level failure conditions that must be handled elsewhere.

Escalation end event

An escalation end event ends the current process path and communicates that an escalation has occurred.

Terminate end event

A terminate end event immediately ends the entire process instance, including other active paths.

This is stronger than an ordinary end event. It should be used when all remaining work must stop.

Compensation end event

A compensation end event triggers compensation activities before the process path concludes.

3. Activities: Work That Is Performed

An activity represents work performed by a person, team, system, or automated service. Activities are drawn as rounded rectangles.

Examples include:

Review application
Approve invoice
Send confirmation
Validate customer details
Calculate shipping cost
Update account
Generate report

Activities form the operational backbone of a BPMN diagram because they show where time, effort, cost, and responsibility are concentrated.

3.1 Naming Activities

A good activity name usually follows this pattern:

Verb + object

Examples:

Review Application
Approve Invoice
Create Customer Record
Validate Payment
Send Confirmation Email

Avoid vague names such as:

Processing
Handle Request
Step 1
Other Work
Administration

A clear activity name should describe an action and its subject.

Weak name	Better name
Processing	Process Payment
Review	Review Application
Customer step	Verify Customer Identity
Email	Send Approval Email
Update	Update Order Status

A task normally represents one unit of work that cannot or should not be broken down further. A subprocess represents a collection of related activities.

3.2 Tasks

A task is the simplest type of activity. It represents a single unit of work.

A basic task is shown as a rounded rectangle:

╭────────────────────╮
│ Review Application │
╰────────────────────╯

Tasks may include markers that identify the type of work being performed.

User task

A user task is performed by a human using a system or application.

Examples:

Approve expense report
Enter customer information
Review contract
Assign support case

Manual task

A manual task is performed by a person without the assistance of a business process engine or application.

Examples:

Inspect equipment
Sign a paper document
Package a physical product
Deliver a document by hand

Service task

A service task is performed automatically by a system, application, web service, or API.

Examples:

Retrieve credit score
Send automated email
Calculate tax
Create database record
Call payment service

Script task

A script task executes a script or piece of code within the process environment.

Examples:

Transform data
Calculate a value
Format a message
Apply a simple data rule

Business rule task

A business rule task evaluates business rules, often through a rules engine.

Examples:

Determine credit limit
Calculate insurance premium
Decide whether an order qualifies for free shipping
Determine approval level

Send task

A send task sends a message to another participant or system.

Examples:

Send invoice
Send order confirmation
Send notification to warehouse

Receive task

A receive task waits for a message from another participant or system.

Examples:

Receive signed contract
Receive payment confirmation
Receive shipping status

3.3 Subprocesses

A subprocess is an activity that contains a more detailed process.

It can be shown in two ways:

Collapsed subprocess: A rounded rectangle with a plus marker
Expanded subprocess: A larger rounded rectangle displaying the internal flow

Use a subprocess when several tasks belong together and the high-level diagram would become too detailed if all of them were shown.

Example:

╭──────────────────────────────╮
│ + Complete Customer Onboarding│
╰──────────────────────────────╯

The subprocess might contain:

Collect Information
        ↓
Verify Identity
        ↓
Create Account
        ↓
Send Welcome Message

When to use a subprocess

Use one when:

A group of steps has a clear business purpose
The group may be reused conceptually
The main diagram is becoming crowded
Stakeholders need both a summary and a detailed view
The internal process has its own start, end, exception, or decision logic

Embedded subprocess

An embedded subprocess is defined inside its parent process and is part of that process’s flow.

Call activity

A call activity invokes a separately defined reusable process or global task.

Use it when the same process logic is called from multiple places, such as:

Verify Customer Identity

If customer verification appears in several business processes, a reusable call activity may be more appropriate than duplicating all of its internal steps.

Event subprocess

An event subprocess is activated by a start event while its containing process or subprocess is active. It is useful for handling exceptional or parallel situations, such as cancellation requests, urgent escalations, or incoming updates. Event subprocesses may be interrupting or non-interrupting.

Example:

Main Process: Fulfill Order

Event subprocess:
Cancellation Request → Cancel Fulfillment → Refund Customer

3.4 Activity Markers

Activities may include small markers that add information about how they behave.

Loop marker

A loop marker indicates that an activity repeats until a condition is satisfied.

Example:

Review Document
      ↻

Use it for activities such as:

Review until approved
Attempt delivery until successful
Contact customer until reached

Parallel multi-instance marker

This indicates that multiple instances of the same activity run at the same time.

Example:

Obtain Three Approvals

The activity may be performed simultaneously by several reviewers.

Sequential multi-instance marker

This indicates that multiple instances run one after another.

Example:

Review Items One at a Time

Compensation marker

This identifies an activity used to compensate for previously completed work.

Example:

Refund Customer

Ad hoc marker

An ad hoc subprocess is represented by a tilde-like marker. It indicates that activities inside the subprocess may be carried out in a flexible or loosely structured order rather than following one fixed sequence.

4. Gateways: Decisions, Splits, and Merges

A gateway controls how the process flow diverges or converges. Gateways are drawn as diamonds.

A gateway is not normally a task. It does not perform the decision-making work itself. Instead, it represents how the process flow is controlled after a decision, condition, or event has been evaluated.

For example:

Review Application → Is the application complete?

The review activity gathers or evaluates information. The gateway then routes the process according to the result.

Gateways can:

Split one path into several paths
Merge multiple paths into one
Synchronize parallel work
Wait for one or more events
Route work based on conditions or rules

4.1 Exclusive Gateway: XOR

An exclusive gateway selects exactly one outgoing path.

It is commonly shown as a diamond containing an “X,” although the marker may be omitted in some diagrams.

Example:

                    ┌── Approved → Create Account
Check Application ─◇
                    └── Rejected → Send Rejection

Only one path is followed.

Typical uses:

If payment is approved, continue; otherwise reject
If the customer is eligible, offer a discount
If the request is complete, process it; otherwise return it

The outgoing paths should normally have clear conditions or labels:

Approved
Rejected
Complete
Incomplete
Amount > $10,000
Amount ≤ $10,000

Exclusive merge

An exclusive gateway can also merge alternative paths back into one path. It does not wait for all paths because only one of the alternative paths should have been taken.

Default flow

A default path may be used when none of the specified conditions is true.

For example:

Approved
Rejected
Default → Manual Review

A default path is useful for unexpected or unclassified cases.

4.2 Parallel Gateway: AND

A parallel gateway splits the process into multiple paths that run concurrently.

It is represented by a diamond containing a plus sign.

Example:

                 ┌── Prepare Invoice ──┐
Order Approved ─◇                       ◇── Ship Order
                 └── Reserve Inventory ┘

Both activities begin, and the process may later wait for both to finish.

Parallel split

A parallel split starts all outgoing paths.

Use it when all activities must occur, regardless of conditions.

Examples:

Send confirmation and update inventory
Notify finance and notify operations
Perform security check and fraud check

Parallel join

A parallel join waits for all incoming paths to complete before continuing.

This is sometimes called synchronization.

Prepare Invoice ──┐
                  ◇── Fulfill Order
Reserve Inventory ┘

If one incoming branch is delayed, the join waits for it.

4.3 Inclusive Gateway: OR

An inclusive gateway selects one or more outgoing paths depending on which conditions are true.

It is represented by a diamond containing a circle.

Example:

Customer qualifies for:
- Standard discount
- Loyalty discount
- Promotional discount

More than one discount-related action may be selected if multiple conditions are satisfied.

Use an inclusive gateway when:

One or more conditions may be true
Several paths can run at the same time
The process should continue after all selected paths finish

Unlike an exclusive gateway, an inclusive gateway does not necessarily choose only one path. Unlike a parallel gateway, it does not necessarily choose every path.

4.4 Event-Based Gateway

An event-based gateway routes the process according to whichever event happens first.

It is commonly followed by catching intermediate events or receive tasks.

Example:

Send Quote → Event-Based Gateway
                         ├── Message received → Process Acceptance
                         └── Timer expires → Send Reminder

Only the first event to occur determines the path.

Use an event-based gateway when the process is waiting for external behavior rather than evaluating a known business condition. For example, the process might wait for either a customer response or a timeout.

Event-based versus exclusive gateway

Question	Exclusive gateway	Event-based gateway
What determines the path?	A condition or business rule	The first event to occur
Typical question	“Is the request approved?”	“What happens first?”
Common following elements	Activities or sequence flows	Catching events or receive tasks
Decision source	Data or logic	External event

4.5 Complex Gateway

A complex gateway handles advanced routing logic that cannot be expressed clearly with the standard gateway types.

Examples include:

Continue when at least two of three approvals are received
Choose a path based on a complex combination of conditions
Synchronize selected paths according to custom rules

Complex gateways should be used sparingly. In many cases, several simpler gateways or a clearly named business rule task will be easier to understand and maintain.

4.6 Event-Based Gateway Variants

BPMN also supports event-based gateway variations, including:

Exclusive event-based gateways
Parallel event-based gateways
Instantiating event-based gateways

A parallel event-based gateway may wait for multiple event conditions, while an exclusive event-based gateway proceeds based on the first event that occurs. The correct variant depends on whether the process is waiting for one event or a combination of events.

5. How Flow Objects Work Together

The meaning of a BPMN diagram comes from the relationships among events, activities, gateways, and sequence flows.

Consider an order process:

Start
  ↓
Receive Order
  ↓
Check Inventory
  ↓
Is Item Available?
  ├── Yes → Pack Order → Ship Order → End
  └── No  → Notify Customer → End

This example contains:

A start event that begins the process
Activities for receiving, checking, packing, shipping, and notifying
An exclusive gateway that chooses one path
Two end events or end paths representing different outcomes

A more advanced version might be:

Start
  ↓
Receive Order
  ↓
Check Inventory
  ↓
Is Item Available?
  ├── No → Notify Customer → End
  └── Yes → Parallel Gateway
                   ├── Reserve Inventory
                   ├── Prepare Invoice
                   └── Check Fraud
                         ↓
                 Parallel Join
                         ↓
                    Ship Order
                         ↓
                        End

Here:

The exclusive gateway determines whether fulfillment can proceed.
The parallel gateway launches three activities.
The parallel join waits for all three activities.
Shipping begins only after synchronization is complete.

6. Events, Activities, and Gateways: A Quick Comparison

Element	Key question	Example
Event	What happened or will happen?	Payment received
Activity	What work is performed?	Verify payment
Gateway	Which route should the process take?	Is payment valid?

A useful rule is:

Events happen
Activities are done
Gateways control the path

If you are unsure which symbol to use, ask:

Is this something that occurs without being treated as work? Use an event.
Is someone or something performing an action? Use an activity.
Is the process splitting, merging, or waiting for a routing condition? Use a gateway.

7. Connecting Flow Objects Correctly

Flow objects are connected by different types of lines. Using the wrong connector can make a diagram misleading.

7.1 Sequence Flow

A sequence flow is a solid line with an arrowhead. It shows the order in which flow objects are executed within the same process.

Activity A → Activity B

Use sequence flow to connect:

Events to activities
Activities to gateways
Gateways to activities
Activities to end events

A sequence flow normally should not cross the boundary between separate pools.

7.2 Message Flow

A message flow is a dashed line with an open arrowhead. It represents communication between separate participants or pools.

Examples:

Customer sends order to seller
Seller sends confirmation to customer
Bank sends payment result to merchant

Use message flow for communication, not for showing internal process order.

7.3 Association

An association is a dotted line used to connect artifacts, notes, or data representations to flow objects.

Examples:

Attach a document to a task
Link a text annotation to an activity
Show that a task uses a data object

The three main types of connecting objects are sequence flows, message flows, and associations.

8. Pools and Lanes

Although pools and lanes are not flow objects, they provide essential context for understanding who performs each activity.

Pool

A pool represents a participant in a process.

Examples:

Customer
Supplier
Bank
Company
Government agency
External system

A pool may contain an entire process or may be shown as a black-box participant with no internal detail.

Lane

A lane divides a pool according to responsibility, role, department, system, or location.

Examples:

Customer Service
Finance
Warehouse
Manager
Payment System

Lanes help answer the question:

Who is responsible for this activity?

They can also reveal handoffs, delays, duplicated work, and unclear ownership.

9. Data Objects and Other Supporting Elements

Data objects are not flow objects, but they provide useful context about information used, created, or changed by activities.

Examples:

Application form
Invoice
Purchase order
Customer record
Approval document
Shipping label

A data object might be connected to an activity like this:

Application Form → Review Application

Data objects identify relevant information, but they do not necessarily represent every piece of data handled by the process.

Other supporting elements include:

Data stores: Persistent locations where data is stored
Text annotations: Explanatory notes
Groups: Visual organization of related elements
Associations: Links between supporting elements and flow objects

10. A Step-by-Step Method for Modeling a Process

Step 1: Define the process scope

Decide where the process starts and ends.

For example:

From: Customer submits order
To: Order is shipped or rejected

Avoid modeling the entire organization in one diagram.

Step 2: Identify the participants

List the people, departments, systems, or organizations involved.

Examples:

Customer
Sales team
Finance department
Warehouse
Payment gateway

These may become pools or lanes.

Step 3: Identify the start trigger

Ask:

What causes this process to begin?

Use the appropriate start event:

Message
Timer
Conditional trigger
Signal
None

Step 4: List the major activities

Write each activity using a verb-and-object format:

Receive Order
Validate Order
Calculate Total
Approve Payment
Ship Order

At this stage, do not worry about every exception.

Step 5: Add decisions

Look for questions such as:

Is the order complete?
Is payment approved?
Is inventory available?
Does the customer qualify?
Has the deadline passed?

Use gateways to represent how the answer affects the process.

Step 6: Add parallel work

Identify activities that can occur simultaneously.

For example:

Update inventory
Send confirmation
Create invoice

Use parallel gateways when all branches must be completed or synchronized.

Step 7: Add intermediate and boundary events

Ask what may happen while work is in progress:

Does the activity have a deadline?
Can it be canceled?
Can an error occur?
Can an external message arrive?
Should the process escalate if it takes too long?

Step 8: Add end events

Identify all meaningful outcomes:

Completed
Rejected
Canceled
Failed
Escalated
Compensated

Step 9: Add data and annotations

Include documents, systems, notes, and business rules only where they improve understanding.

Step 10: Review the diagram

Check that:

Every process path has a clear start
Every path eventually ends
Gateway conditions are understandable
Activities have clear owners
Sequence flows show actual order
Message flows are used only between participants
No gateway is being used as a task
The diagram is not overloaded with unnecessary detail

11. Common BPMN Modeling Mistakes

Mistake 1: Using a gateway as a decision activity

A gateway should route the process, not perform the analysis.

Weak model:

◇ Check Credit Score

Better model:

Check Credit Score → Credit Approved?

The activity performs the check. The gateway routes based on the result.

Mistake 2: Using sequence flow between separate pools

Sequence flow represents internal process order. Communication between separate participants should use message flow.

Incorrect concept:

Customer Pool ── solid sequence flow ── Seller Pool

Better concept:

Customer Pool ── dashed message flow ── Seller Pool

Mistake 3: Leaving gateway paths unlabeled

An unlabeled gateway creates ambiguity.

Instead of:

◇ → Path A
  → Path B

Use:

◇
├── Approved
└── Rejected

Mistake 4: Using an exclusive gateway for parallel work

If all activities must happen, do not use an exclusive gateway.

Incorrect:

◇ ├── Send Confirmation
   └── Update Inventory

This means only one path is selected.

Use a parallel gateway if both activities must happen:

+ ├── Send Confirmation
  └── Update Inventory

Mistake 5: Using a parallel gateway for conditional work

A parallel gateway activates every outgoing path. If only some paths should run, use an exclusive or inclusive gateway.

Mistake 6: Modeling every minor action

A diagram can become unreadable if every click, field entry, and internal system action is included.

Model at the level appropriate for your audience:

Executives need major stages
Process owners need responsibilities and decisions
Developers may need implementation-level detail
Auditors may need controls and evidence

Mistake 7: Creating dead-end paths

Every sequence-flow path should eventually reach an appropriate end event or a clearly defined subprocess boundary.

Mistake 8: Mixing business logic and technical implementation unnecessarily

A business process diagram should explain the process first. Technical details should be included only when they help the intended audience.

12. Practical Naming Conventions

Consistent naming makes diagrams easier to read.

Events

Name events with a result, occurrence, or condition:

Order Received
Payment Confirmed
Deadline Reached
Customer Canceled
Error Occurred

Activities

Use:

Verb + object

Examples:

Review Contract
Approve Request
Update Account
Send Notification

Gateways

Gateways are often clearest when associated with a question:

Is the application complete?
Is payment approved?
Is inventory available?
Has the deadline passed?

The outgoing paths should contain the answers:

Yes / No
Approved / Rejected
Available / Unavailable

End events

Name end events according to the outcome:

Order Completed
Request Rejected
Payment Failed
Case Canceled

13. Choosing the Right Gateway

Use this decision guide:

Modeling need	Gateway to use
Choose exactly one path based on conditions	Exclusive gateway
Start every outgoing path	Parallel gateway
Choose one or more paths based on conditions	Inclusive gateway
Follow the path for the first event that occurs	Event-based gateway
Apply highly specialized routing rules	Complex gateway

A quick mental test:

One path? Exclusive
All paths? Parallel
Some paths? Inclusive
First event? Event-based
Unusual custom logic? Complex

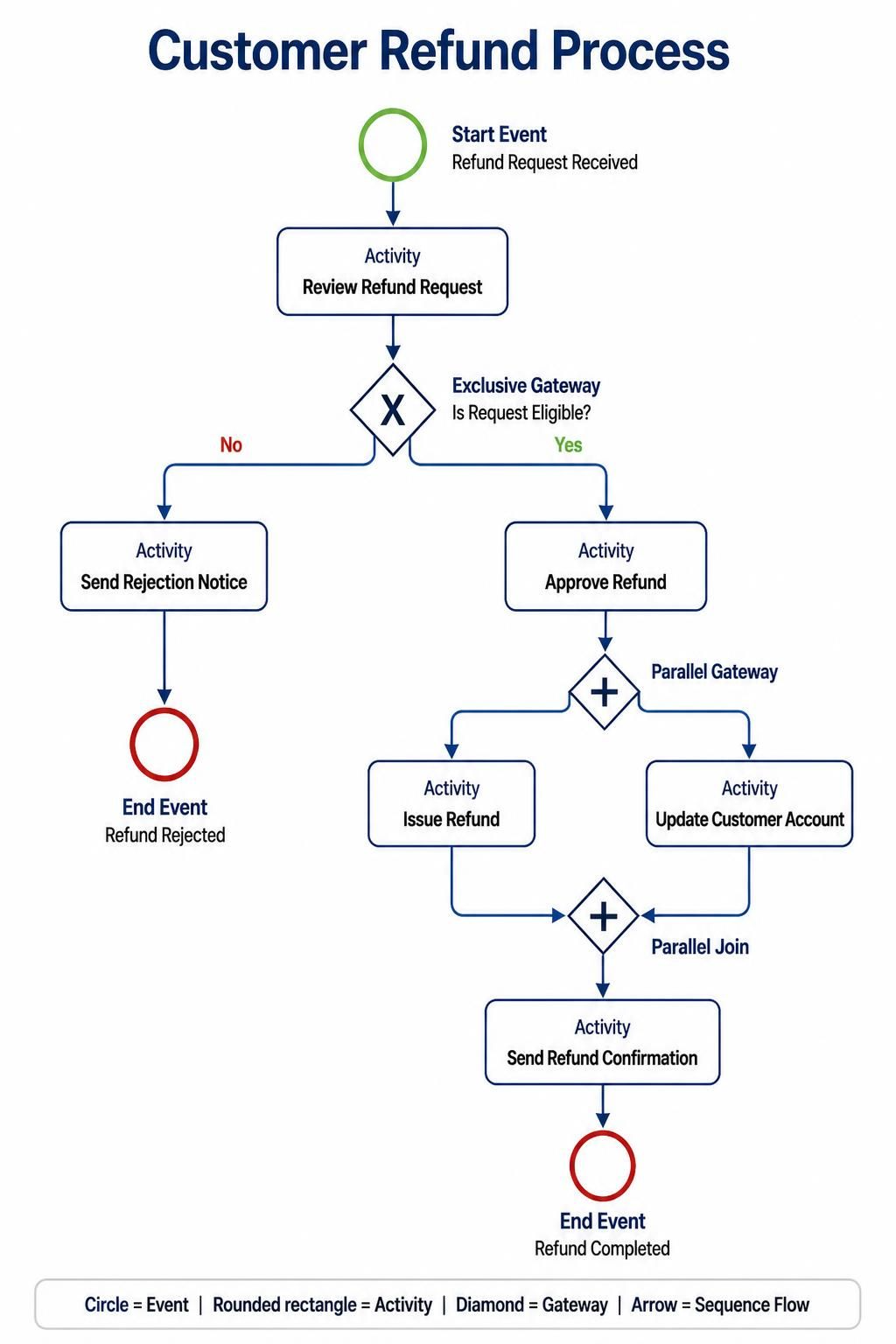

14. A Complete Example: Customer Refund Process

Consider a customer refund process.

Start: Refund Request Received
                ↓
        Review Refund Request
                ↓
        Is Request Eligible?
          ├── No
          │    ↓
          │  Send Rejection Notice
          │    ↓
          │  End: Refund Rejected
          │
          └── Yes
               ↓
          Approve Refund
               ↓
        Parallel Gateway
          ├── Issue Refund
          └── Update Customer Account
               ↓
        Parallel Join
               ↓
        Send Refund Confirmation
               ↓
        End: Refund Completed

This model demonstrates:

A message start event
User or manual activities
An exclusive gateway
A rejection path
A parallel split
A parallel join
A confirmation activity
Different end outcomes

If the refund service can fail, add a boundary error event to Issue Refund:

Issue Refund
      │
      └── Error → Create Manual Review Case

If the refund must be completed within five business days, add a boundary timer event:

Issue Refund
      │
      └── 5-day timeout → Escalate Refund

15. A Compact BPMN Symbol Cheat Sheet

Symbol category	Meaning	Typical use
Thin circle	Start event	Begin a process
Double circle	Intermediate event	Wait, send, receive, or react
Thick circle	End event	Finish a process path
Rounded rectangle	Task or activity	Perform work
Rounded rectangle with plus	Collapsed subprocess	Group detailed work
Diamond with X	Exclusive gateway	Choose one path
Diamond with plus	Parallel gateway	Run all paths
Diamond with circle	Inclusive gateway	Run one or more paths
Diamond with event marker	Event-based gateway	Follow the first event
Solid arrow	Sequence flow	Show internal order
Dashed arrow	Message flow	Show communication
Dotted connector	Association	Link notes or data
Pool	Participant	Represent an organization or process
Lane	Role or responsibility	Assign ownership
Document/data shape	Data object	Show information used or produced

16. Final Modeling Principles

The most effective BPMN diagrams follow a few basic principles:

Use events for things that happen.
Use activities for work that people or systems perform.
Use gateways to control or synchronize paths.
Use sequence flows for internal process order.
Use message flows for communication between participants.
Label decisions and outgoing conditions clearly.
Use subprocesses to control complexity.
Show responsibility with pools and lanes.
Use boundary events for timeouts, errors, and interruptions.
Model at the level appropriate for the audience.
Give every meaningful path a clear outcome.
Prefer simple, understandable diagrams over overly elaborate ones.

Once these three core ideas become familiar—events happen, activities are performed, and gateways control the flow—most BPMN diagrams become much easier to read and create.
