Comprehensive Guide to PlantUML: Diagrams as Code

Introduction: Mastering Diagrams as Code with PlantUML and Visual Paradigm

In today’s fast-paced software development landscape, clear visual communication is no longer a luxury—it’s a necessity. Yet, traditional diagramming tools often create more friction than they solve. Drag-and-drop interfaces produce binary files that resist version control, become outdated the moment code changes, and create silos between developers and documentation.
Enter PlantUML: a revolutionary approach that treats diagrams as code. By describing your systems in plain text, you unlock the power of version control, automated generation, and seamless collaboration. But why stop at just writing code when AI can help you write it better?
This comprehensive guide explores how PlantUML, combined with Visual Paradigm’s AI Chatbot and VPasCode, transforms diagram creation from a tedious chore into an efficient, intelligent workflow. Whether you’re a seasoned architect mapping complex microservices or a product manager sketching user journeys, you’ll discover how to leverage text-based diagrams to create maintainable, professional-quality visuals that evolve with your project.

Comprehensive Guide to PlantUML: Diagrams as Code

From class diagrams to Gantt charts, sequence diagrams to C4 architecture models, we’ll walk through practical examples and best practices that will elevate your documentation game. Say goodbye to outdated Visio files and hello to diagrams that live in your repository, change with your code, and speak the language of developers.

Why PlantUML for Diagram as Code? What Are the Benefits?

PlantUML is an open-source tool that allows you to create UML diagrams from plain text descriptions. Here are the key benefits:

Why PlantUML For Diagram As Code: Benefits & Power Using VPasCode

1. Version Control Friendly

  • Text-based diagrams can be stored in Git repositories

  • Easy to track changes, review diffs, and collaborate

  • No binary files that are hard to merge

2. Maintainability

  • Easy to update and modify diagrams

  • Consistent styling across all diagrams

  • Reusable components and templates

3. Developer-Centric

  • Write diagrams in code (no drag-and-drop)

  • Integrates with IDEs and documentation tools

  • Automated diagram generation from code

4. Tooling Integration

  • Works with Visual Paradigm AI Chatbot for intelligent diagram suggestions

  • VPasCode provides enhanced editing experience

  • Supports multiple output formats (PNG, SVG, PDF)

5. Wide Diagram Support

  • Class diagrams, sequence diagrams, activity diagrams

  • Use case diagrams, component diagrams, deployment diagrams

  • And many more specialized diagram types


Tooling: Visual Paradigm AI Chatbot + VPasCode

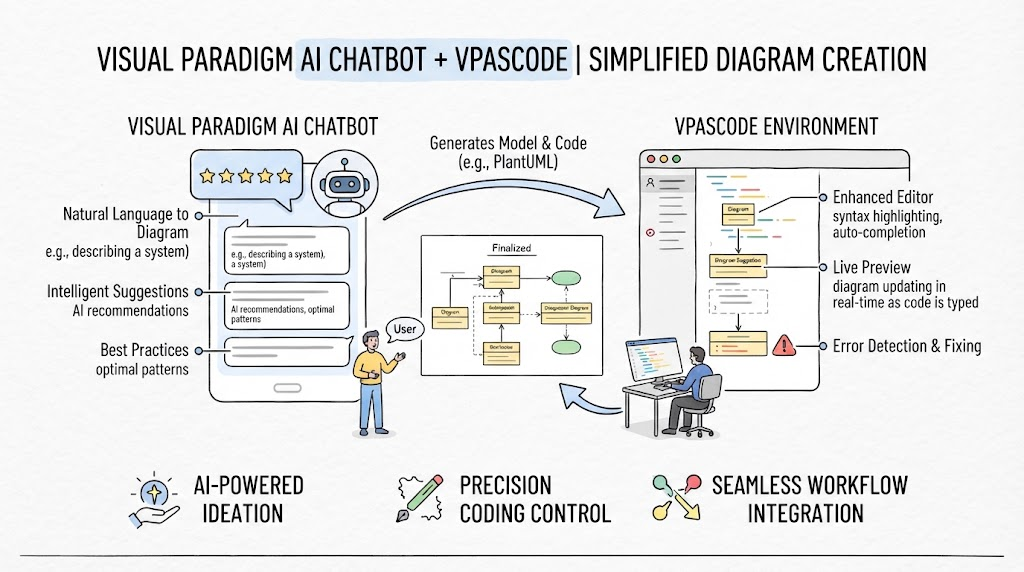

Diagram showing Visual Paradigm AI Chatbot generating PlantUML code for VPasCode environment.

Visual Paradigm AI Chatbot

  • Intelligent Suggestions: Get AI-powered recommendations for diagram structures

  • Natural Language to Diagram: Describe your system in plain English, get PlantUML code

  • Best Practices: Learn optimal diagram patterns and conventions

VPasCode

  • Enhanced Editor: Syntax highlighting, auto-completion, error detection

  • Live Preview: See your diagram update in real-time as you type

  • Integration: Seamlessly works with Visual Paradigm’s full suite of modeling tools


PlantUML Diagram Examples

1. Class Diagram

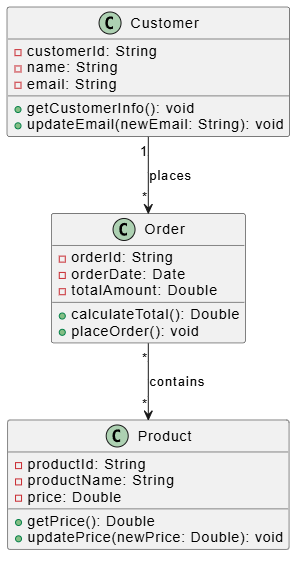

PlantUML class diagram showing Customer, Order, and Product entities with attributes and methods.

@startuml
class Customer {
    -customerId: String
    -name: String
    -email: String
    +getCustomerInfo(): void
    +updateEmail(newEmail: String): void
}

class Order {
    -orderId: String
    -orderDate: Date
    -totalAmount: Double
    +calculateTotal(): Double
    +placeOrder(): void
}

class Product {
    -productId: String
    -productName: String
    -price: Double
    +getPrice(): Double
    +updatePrice(newPrice: Double): void
}

Customer "1" --> "*" Order : places
Order "*" --> "*" Product : contains
@enduml

2. Sequence Diagram

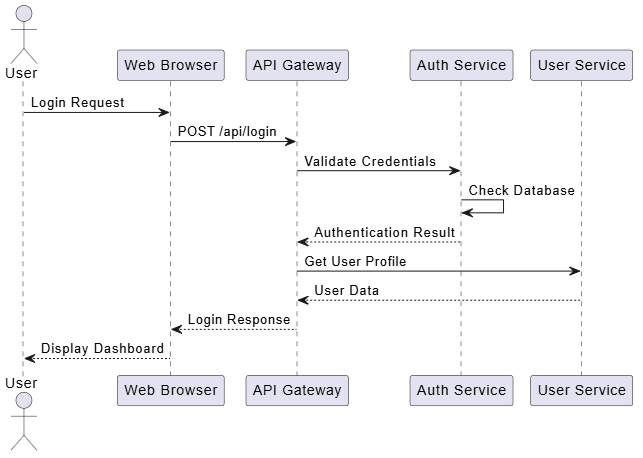

Login sequence diagram showing interactions between User, Web Browser, API Gateway, Auth Service, and User Service.

@startuml
actor User
participant "Web Browser" as Browser
participant "API Gateway" as Gateway
participant "Auth Service" as Auth
participant "User Service" as UserService

User -> Browser : Login Request
Browser -> Gateway : POST /api/login
Gateway -> Auth : Validate Credentials
Auth -> Auth : Check Database
Auth --> Gateway : Authentication Result
Gateway -> UserService : Get User Profile
UserService --> Gateway : User Data
Gateway --> Browser : Login Response
Browser --> User : Display Dashboard
@enduml

3. Activity Diagram

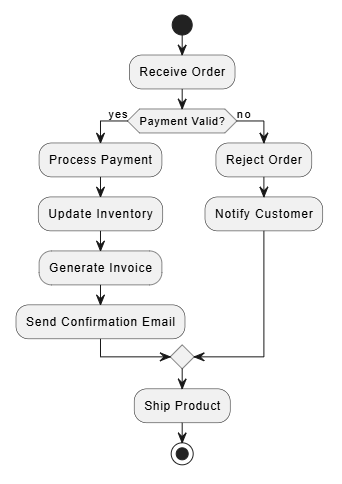

PlantUML activity diagram illustrating the order processing workflow with payment validation and inventory updates.

@startuml
start
:Receive Order;
if (Payment Valid?) then (yes)
  :Process Payment;
  :Update Inventory;
  :Generate Invoice;
  :Send Confirmation Email;
else (no)
  :Reject Order;
  :Notify Customer;
endif
:Ship Product;
stop
@enduml

4. Use Case Diagram

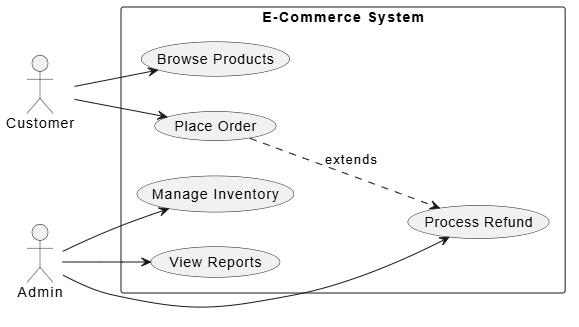

E-Commerce System use case diagram showing Customer and Admin interactions with Browse Products, Place Order, Manage Inventory, View Reports, and Process Refund.

@startuml
left to right direction
actor "Customer" as Customer
actor "Admin" as Admin

rectangle "E-Commerce System" {
  usecase "Browse Products" as UC1
  usecase "Place Order" as UC2
  usecase "Manage Inventory" as UC3
  usecase "View Reports" as UC4
  usecase "Process Refund" as UC5
}

Customer --> UC1
Customer --> UC2
Admin --> UC3
Admin --> UC4
Admin --> UC5
UC2 ..> UC5 : extends
@enduml

5. Component Diagram

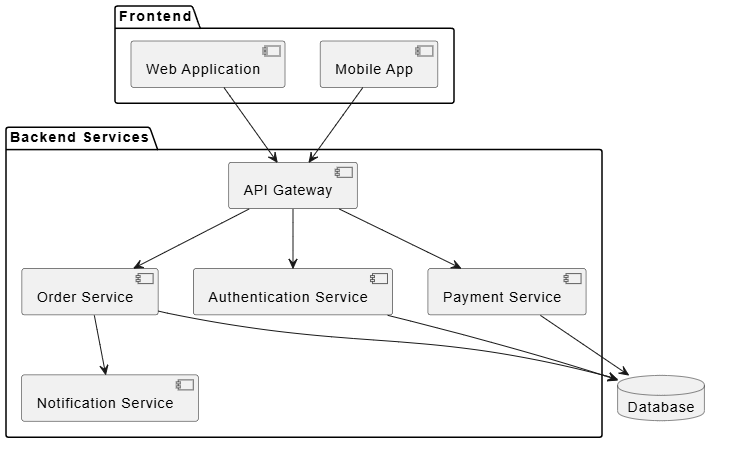

PlantUML component diagram showing frontend web and mobile apps connecting to backend API Gateway and microservices like Order, Authentication, and Payment.

@startuml
package "Frontend" {
  [Web Application] as WebApp
  [Mobile App] as MobileApp
}

package "Backend Services" {
  [API Gateway] as Gateway
  [Authentication Service] as AuthService
  [Order Service] as OrderService
  [Payment Service] as PaymentService
  [Notification Service] as NotificationService
}

database "Database" as DB

WebApp --> Gateway
MobileApp --> Gateway
Gateway --> AuthService
Gateway --> OrderService
Gateway --> PaymentService
OrderService --> NotificationService
AuthService --> DB
OrderService --> DB
PaymentService --> DB
@enduml

6. Deployment Diagram

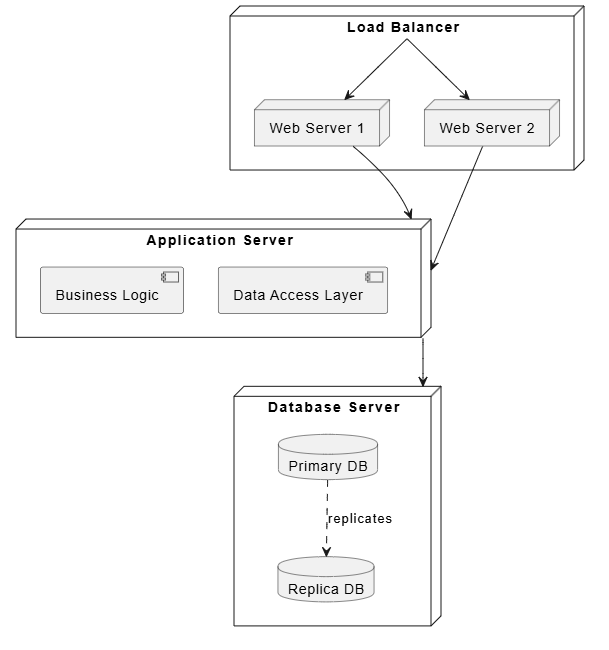

PlantUML deployment diagram showing load balancer, web servers, application server, and database replication.

@startuml
node "Load Balancer" as LB {
  node "Web Server 1" as WS1
  node "Web Server 2" as WS2
}

node "Application Server" as AppServer {
  component "Business Logic" as BL
  component "Data Access Layer" as DAL
}

node "Database Server" as DBServer {
  database "Primary DB" as PrimaryDB
  database "Replica DB" as ReplicaDB
}

LB --> WS1
LB --> WS2
WS1 --> AppServer
WS2 --> AppServer
AppServer --> DBServer
PrimaryDB ..> ReplicaDB : replicates
@enduml

7. State Diagram

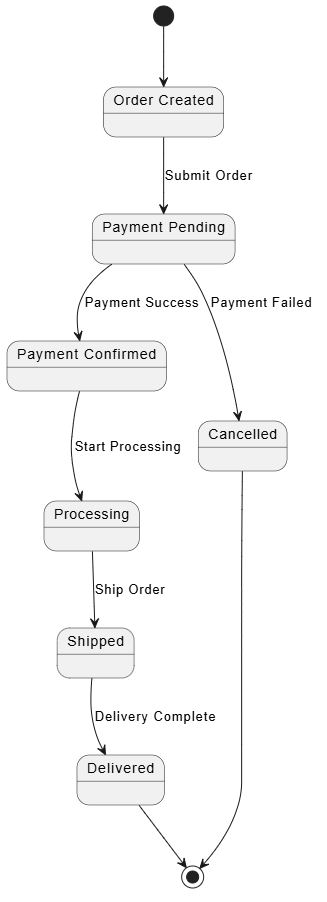

PlantUML state diagram illustrating order lifecycle from creation to delivery or cancellation.

@startuml
state "Order Created" as Created
state "Payment Pending" as PaymentPending
state "Payment Confirmed" as PaymentConfirmed
state "Processing" as Processing
state "Shipped" as Shipped
state "Delivered" as Delivered
state "Cancelled" as Cancelled

[*] --> Created
Created --> PaymentPending : Submit Order
PaymentPending --> PaymentConfirmed : Payment Success
PaymentPending --> Cancelled : Payment Failed
PaymentConfirmed --> Processing : Start Processing
Processing --> Shipped : Ship Order
Shipped --> Delivered : Delivery Complete
Cancelled --> [*]
Delivered --> [*]
@enduml

8. Object Diagram

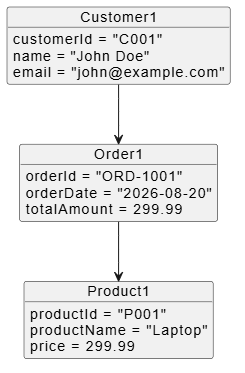

PlantUML Object Diagram showing relationships between Customer1, Order1, and Product1 instances with specific attribute values.

@startuml
object Customer1 {
  customerId = "C001"
  name = "John Doe"
  email = "[email protected]"
}

object Order1 {
  orderId = "ORD-1001"
  orderDate = "2026-08-20"
  totalAmount = 299.99
}

object Product1 {
  productId = "P001"
  productName = "Laptop"
  price = 299.99
}

Customer1 --> Order1
Order1 --> Product1
@enduml

9. Timing Diagram

PlantUML timing diagram showing client and server interaction states over time.

@startuml
robust "Client" as Client
robust "Server" as Server

@0
Client is idle
@10
Client is "sending request"
@20
Server is processing
@30
Server is "sending response"
@40
Client is "receiving response"
@50
Client is idle
@enduml

10. Mind Map

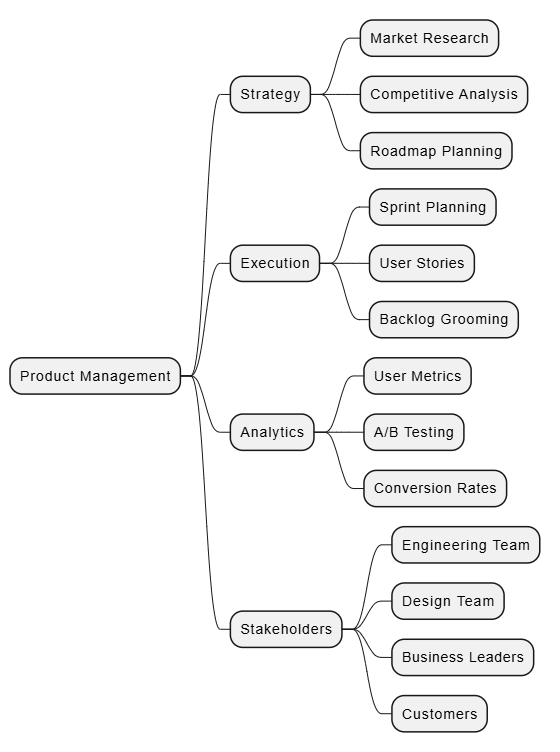

Product Management mind map diagram created with PlantUML showing Strategy, Execution, Analytics, and Stakeholders.

@startmindmap
* Product Management
** Strategy
*** Market Research
*** Competitive Analysis
*** Roadmap Planning
** Execution
*** Sprint Planning
*** User Stories
*** Backlog Grooming
** Analytics
*** User Metrics
*** A/B Testing
*** Conversion Rates
** Stakeholders
*** Engineering Team
*** Design Team
*** Business Leaders
*** Customers
@endmindmap

11. Wireframe (Salt)

Login page wireframe with username, password, login button, and forgot password link

@startsalt
{+
  {"Login Page"
    ["Username: "]
    ["Password: "]
    <"Login">
    <"Forgot Password?">
  }
}
@endsalt

12. Network Diagram

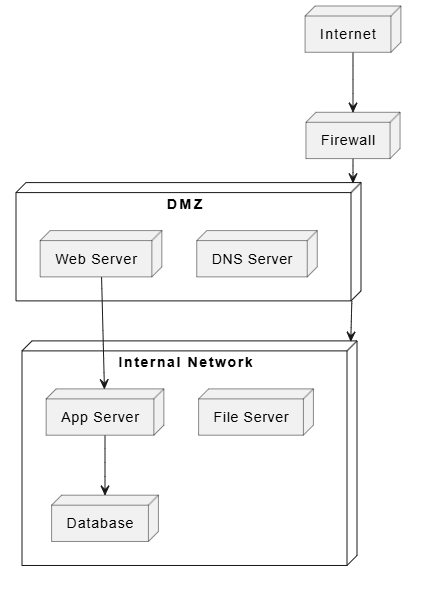

Network diagram showing traffic flow from Internet through Firewall to DMZ and Internal Network servers.

@startuml
node "Internet" as Internet
node "Firewall" as FW
node "DMZ" as DMZ {
  node "Web Server" as WS
  node "DNS Server" as DNS
}
node "Internal Network" as Internal {
  node "App Server" as AppSrv
  node "Database" as DB
  node "File Server" as FileSrv
}

Internet --> FW
FW --> DMZ
DMZ --> Internal
WS --> AppSrv
AppSrv --> DB
@enduml

13. Gantt Chart

@startgantt
title Project Timeline

projectstarts 2026-09-01

-- Planning --
[Requirements Gathering] starts 2026-09-01 and lasts 10 days
[Design Phase] starts 2026-09-11 and lasts 14 days

-- Development --
[Backend Development] starts 2026-09-25 and lasts 20 days
[Frontend Development] starts 2026-09-25 and lasts 18 days

-- Testing --
[Unit Testing] starts 2026-10-15 and lasts 10 days
[Integration Testing] starts 2026-10-25 and lasts 7 days

-- Deployment --
[Production Deploy] starts 2026-11-01 and lasts 3 days
@endgantt

14. Entity Relationship Diagram

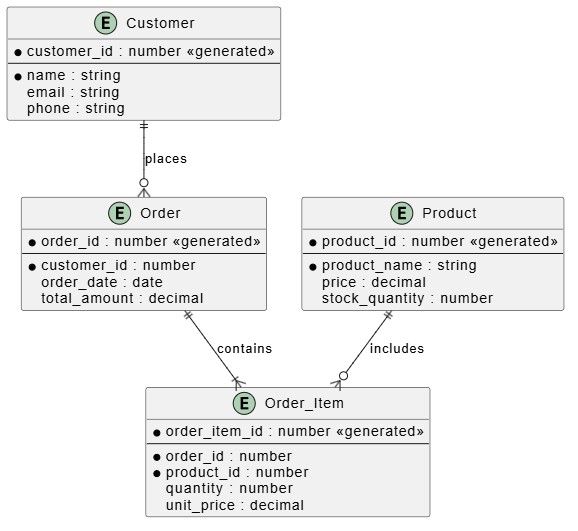

Entity Relationship Diagram showing relationships between Customer, Order, Product, and Order_Item tables.

@startuml
entity "Customer" as Customer {
  * customer_id : number <<generated>>
  --
  * name : string
  email : string
  phone : string
}

entity "Order" as Order {
  * order_id : number <<generated>>
  --
  * customer_id : number
  order_date : date
  total_amount : decimal
}

entity "Product" as Product {
  * product_id : number <<generated>>
  --
  * product_name : string
  price : decimal
  stock_quantity : number
}

entity "Order_Item" as OrderItem {
  * order_item_id : number <<generated>>
  --
  * order_id : number
  * product_id : number
  quantity : number
  unit_price : decimal
}

Customer ||--o{ Order : places
Order ||--|{ OrderItem : contains
Product ||--o{ OrderItem : includes
@enduml

15. Architecture Diagram (C4 Model Style)

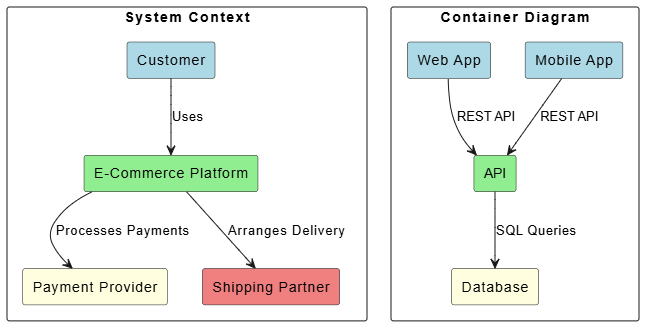

C4 model architecture diagram showing system context and container diagram for an e-commerce platform.

@startuml
skinparam backgroundColor white
skinparam rectangleBackgroundColor white

rectangle "System Context" {
  rectangle "Customer" as Customer #LightBlue
  rectangle "E-Commerce Platform" as Platform #LightGreen
  rectangle "Payment Provider" as Payment #LightYellow
  rectangle "Shipping Partner" as Shipping #LightCoral
}

Customer --> Platform : Uses
Platform --> Payment : Processes Payments
Platform --> Shipping : Arranges Delivery

rectangle "Container Diagram" {
  rectangle "Web App" as WebApp #LightBlue
  rectangle "Mobile App" as MobileApp #LightBlue
  rectangle "API" as API #LightGreen
  rectangle "Database" as DB #LightYellow
}

WebApp --> API : REST API
MobileApp --> API : REST API
API --> DB : SQL Queries
@enduml


Best Practices

1. Keep Diagrams Simple

  • Focus on one aspect per diagram

  • Avoid overcrowding with too many elements

2. Use Consistent Naming

  • Follow naming conventions throughout your diagrams

  • Use meaningful names for classes, actors, and components

3. Document Your Diagrams

  • Add titles and descriptions

  • Use notes for additional context

4. Modularize Complex Systems

  • Break down large systems into smaller, manageable diagrams

  • Use package grouping for organization

5. Leverage AI Tools

  • Use Visual Paradigm AI Chatbot for initial diagram structure

  • Refine and customize with VPasCode

6. Version Control

  • Commit PlantUML files to Git

  • Use meaningful commit messages describing diagram changes


Getting Started with Visual Paradigm + VPasCode

  1. Install Visual Paradigm with VPasCode plugin

  2. Create a new PlantUML file (.puml extension)

  3. Start typing your diagram code

  4. Use AI Chatbot for suggestions by describing your system

  5. Preview in real-time as you edit

  6. Export to your desired format (PNG, SVG, PDF)


Conclusion

PlantUML combined with Visual Paradigm AI Chatbot and VPasCode provides a powerful, developer-friendly approach to creating professional diagrams. The text-based nature ensures maintainability, version control compatibility, and easy collaboration, while the AI-powered tools accelerate diagram creation and ensure best practices.

Whether you’re documenting software architecture, planning projects, or communicating system designs, PlantUML offers a comprehensive solution that scales with your needs.
