Mastering Sequence Diagrams: A Comprehensive Guide to Visual Paradigm’s UML Modeling

Introduction

In the world of software engineering and system design, understanding how different components interact over time is crucial. While static diagrams like class diagrams show structure, Sequence Diagrams reveal behavior. They model the collaboration of objects based on a time sequence, showing exactly how objects interact with others in a particular scenario of a use case.

This guide explores the power of Sequence Diagrams using Visual Paradigm, a tool that offers advanced visual modeling capabilities. With Visual Paradigm, you can create complex sequence diagrams in just a few clicks and even generate them automatically from the flow of events defined in your use case descriptions. Whether you are documenting an existing system or designing a new one, mastering these diagrams will enhance your ability to communicate technical processes clearly.

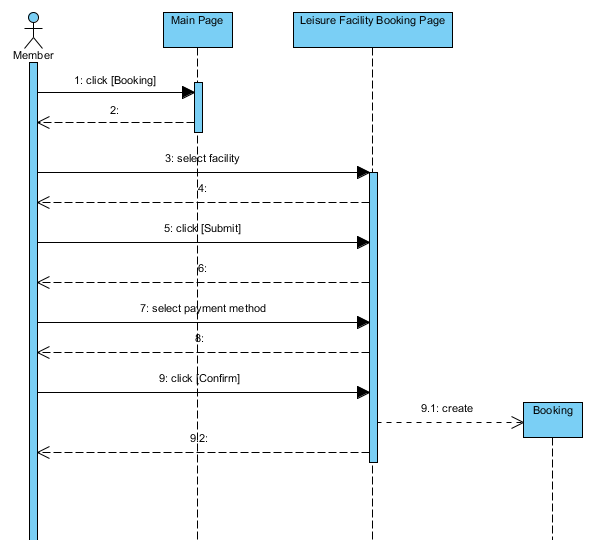

Sequence Diagram Sample

Key Concepts of Sequence Diagrams

A Sequence Diagram is composed of several key elements that work together to tell the story of an interaction. Below are the primary notations and concepts you need to know.

1. The Participants: Actors and Lifelines

Every interaction starts with participants. In UML, these are represented by Actors and Lifelines.

Actor
An Actor models a type of role played by an entity that interacts with the subject but is external to it. This could be a human user, external hardware, or another system.

  • Definition: An actor does not necessarily represent a specific physical entity but merely a particular facet (i.e., “role”) relevant to the specification of its associated use cases.

  • Properties: Name, Documentation, Abstract (if it cannot be instantiated), Leaf (if it cannot be specialized), and Operations.

Actor Icon Actor Example

Lifeline
A lifeline represents an individual participant in the Interaction. It is the vertical dashed line that shows the existence of an object over time.

  • Types of Lifelines:

    • Standard Lifeline: Represents a generic object instance.

    • <>: Represents an interface between the system and its environment (e.g., a UI screen).

    • <>: Represents coordinating logic or workflow control.

    • <>: Represents persistent data or business objects.

  • Properties: Base Classifier, Multiplicity, Active (if it executes behavior upon creation), and Stopped (if it has received a destruction event).

Lifeline Icon Lifeline Example
Boundary Lifeline Icon
Control Lifeline Icon
Entity Lifeline Icon

2. Communication: Messages

Messages are the arrows that connect lifelines, representing communication and the flow of control.

  • Call Message: Represents an invocation of an operation on the target lifeline.
    Call Message Icon

  • Return Message: Represents the pass of information back to the caller of a former message.
    Return Message Icon

  • Create Message: Represents the instantiation of a new lifeline.
    Create Message Icon

  • Destroy Message: Represents the request to destroy the lifecycle of the target lifeline.
    Destroy Message Icon

  • Self Message: Represents an invocation of a message within the same lifeline (often used for internal processing).
    Self Message Icon

  • Recursive Message: A specific type of self-message where the target points to an activation on top of the current activation.
    Recursive Message Icon

  • Found Message: A message where the receiving event is known, but the sending event is outside the scope of the diagram (e.g., external noise or input).
    Found Message Icon

  • Lost Message: A message where the sending event is known, but there is no receiving event (the message never reached its destination).
    Lost Message Icon

3. Controlling Flow: Combined Fragments

To model complex logic like loops and conditions, we use Combined Fragments.

Alternative Combined Fragment (alt)
Represents a choice of behavior. At most one of the operands will be chosen, similar to an if-else statement in code.

  • Properties: Operator Kind, Interaction Operands, Covered LifeLines.
    Alt Fragment Icon Alt Fragment Example

Loop Combined Fragment (loop)
Represents a loop where the operand is repeated a number of times.

  • Properties: Operator Kind, Interaction Operands.
    Loop Fragment Icon Loop Fragment Example

Continuation
A syntactic way to define continuations of different branches of an Alternative Combined Fragment. It acts like a label in a flow of control.
Continuation Icon

4. Advanced Elements

Frame
The frame represents the interaction itself. It usually contains the label “sd” (for sequence diagram) and the name of the interaction.
Frame Icon

Interaction Use
Allows you to reference another interaction. It’s a shorthand for copying the contents of a referred interaction, useful for keeping diagrams clean and modular.
Interaction Use Icon

Gate
A connection point for relating a message outside an Interaction Fragment with a message inside it.
Gate Icon

Constraints and Notes

  • Constraint: A condition or restriction expressed in natural language or machine-readable format.
    Constraint Icon

  • Time Constraint: Refers to a TimeInterval.
    Time Constraint Icon

  • Duration Constraint: Refers to a DurationInterval.
    Duration Constraint Icon

  • Note: A comment attached to elements to provide remarks without semantic force.
    Note Icon

Other Message Types

  • Concurrent: Represents concurrent method invocation along an activation.
    Concurrent Icon

  • Duration Message: Shows the distance between two time instants for a message invocation.
    Duration Message Icon

  • Send Message: Represents the start of execution.
    Send Message Icon

  • Sequence Message: Represents the need for performing actions in sequence.
    Sequence Message Icon

  • Reentrant Message: Points to an activation on top of another activation.
    Reentrant Message Icon

Practical Examples using Visual Paradigm

Example 1: User Login Process

Imagine a simple login scenario.

  1. Actor: User

  2. Lifelines: LoginUI (<>), AuthController (<>), Database (<>)

  3. Flow:

    • User sends a Call Message enterCredentials() to LoginUI.

    • LoginUI sends a Call Message validate() to AuthController.

    • AuthController sends a Call Message queryUser() to Database.

    • Database sends a Return Message with user data.

    • If valid, AuthController sends a Return Message success to LoginUI.

    • If invalid, an Alternative Combined Fragment would show the error path.

Example 2: Order Processing Loop

For an e-commerce system processing multiple items:

  1. Use a Loop Combined Fragment around the interaction between the OrderProcessor and InventorySystem.

  2. Inside the loop, use Call Messages to check stock for each item.

  3. Use a Destroy Message if an item is out of stock and the order is cancelled.

Why Use Visual Paradigm?

Visual Paradigm simplifies the creation of these complex diagrams. Its features include:

  • Drag-and-Drop Interface: Easily add Actors, Lifelines, and Messages from the toolbar.

  • Auto-Generation: Generate sequence diagrams directly from use case descriptions, saving hours of manual drawing.

  • Comprehensive Notation Support: Full support for all UML 2.x sequence diagram elements, including Combined Fragments and Constraints.

  • Professional Output: Create publication-ready diagrams for documentation and presentations.

Conclusion

Sequence Diagrams are an indispensable tool for visualizing the dynamic behavior of systems. By breaking down interactions into time-ordered messages between objects, they provide clarity that static diagrams cannot. With Visual Paradigm, leveraging elements like Actors, Lifelines, Combined Fragments, and various Message types becomes intuitive and efficient. Whether you are a developer, architect, or analyst, mastering these diagrams will significantly improve your design communication and system understanding.
