From Prompt to Living Docs: Mastering Visual Paradigm’s AI-Powered C4 Workflow

Introduction

In modern software engineering, the gap between architectural design and technical documentation is often where projects lose momentum. Diagrams become outdated screenshots, documentation drifts from reality, and onboarding new team members becomes a tedious exercise in deciphering legacy artifacts.

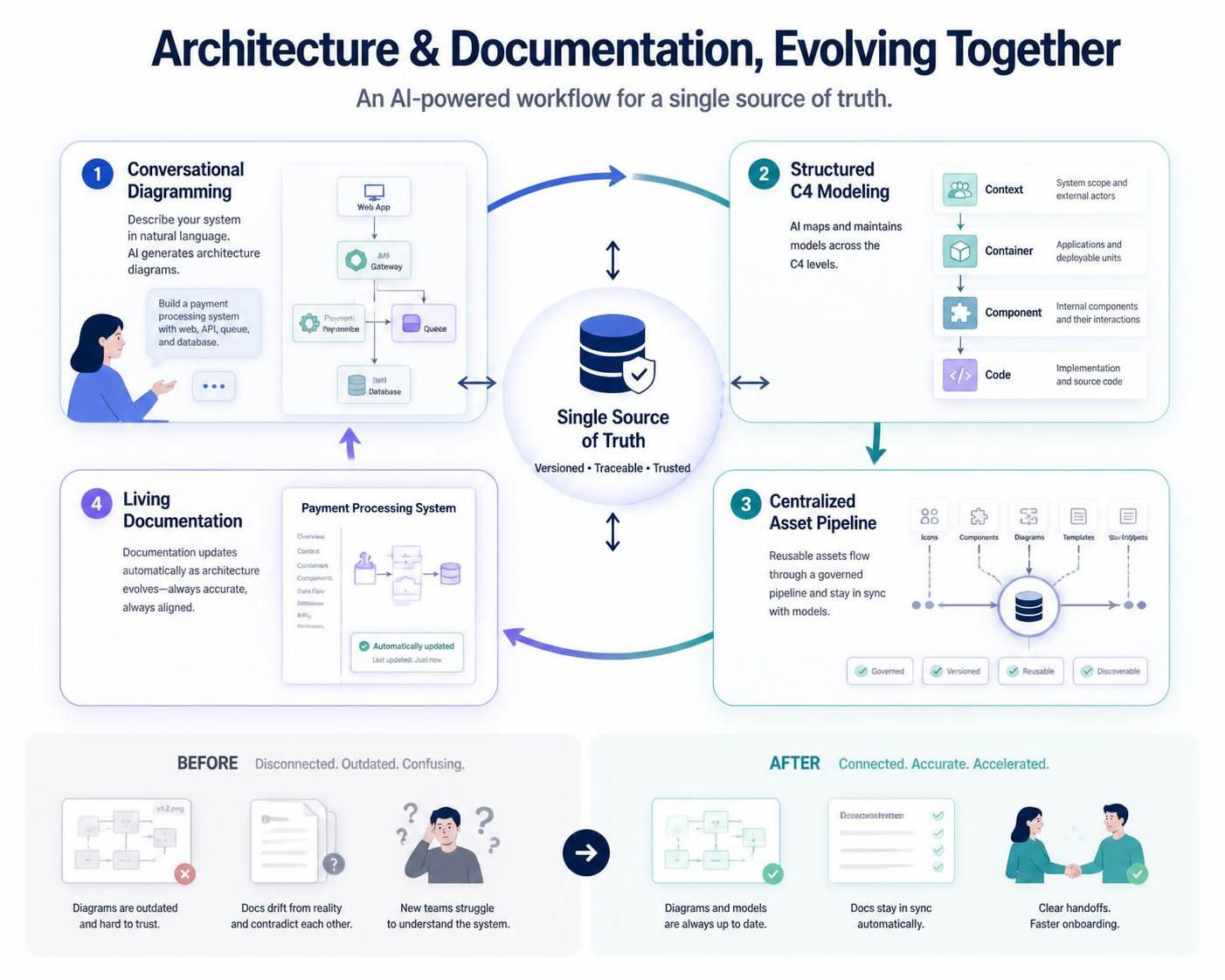

Visual Paradigm’s AI-powered ecosystem addresses this challenge by transforming how teams create and maintain technical documentation. By connecting conversational diagramming, structured C4 modeling, a centralized asset pipeline, and living documentation into one seamless workflow, it ensures that your architecture and your docs evolve together as a single source of truth.

This guide provides a comprehensive, step-by-step walkthrough of this complete workflow—from initial brainstorming with AI to publishing self-updating living documentation—complete with extensive PlantUML examples and best practices.

Part 1: Key Concepts and Ecosystem Overview

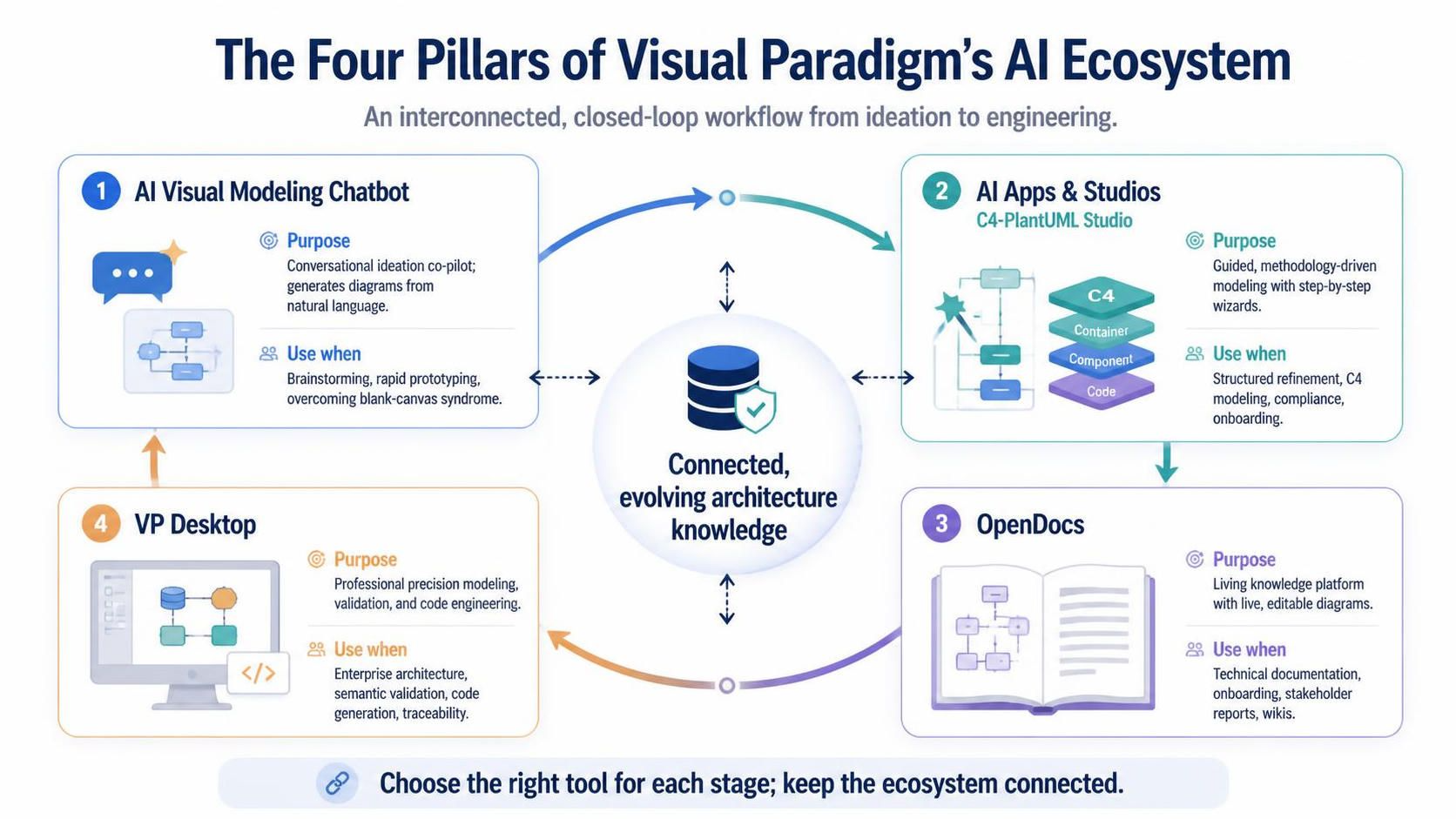

The Four Pillars

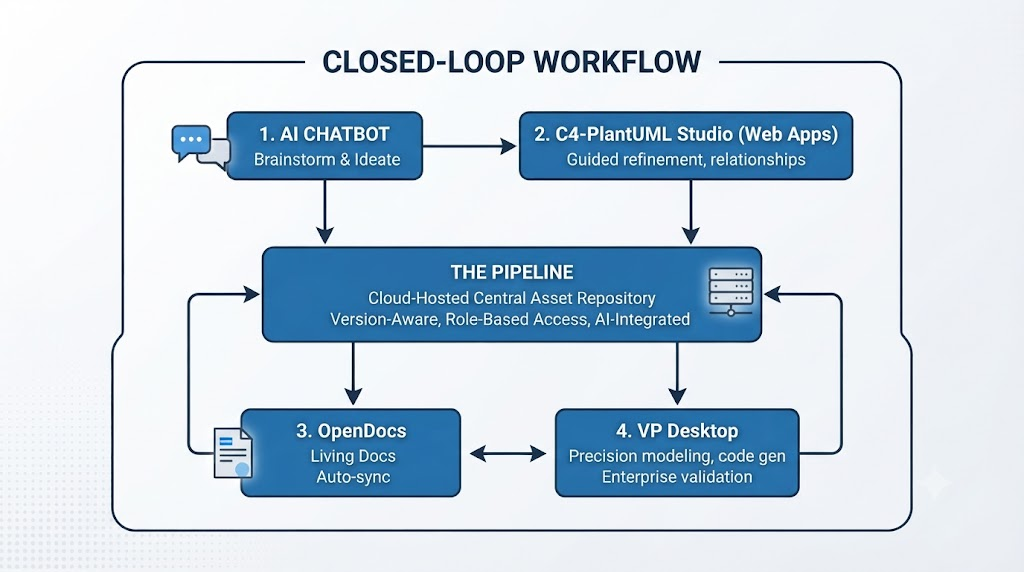

Visual Paradigm’s ecosystem consists of four interconnected AI pillars that work together to create a closed-loop workflow:

The OpenDocs Pipeline

The Pipeline serves as the secure, cloud-hosted central transit hub that connects all five execution environments within the Visual Paradigm ecosystem. It enables teams to stream multi-source artifacts directly into unified technical documentation without manual file transfers or screenshots.

Key characteristics:

• Cloud-hosted repository: Access artifacts from any device

• Version-aware: Automatic revision tracking with commit notes

• Editability preserved: Diagrams remain linked to source models, not static images

• Role-based access: Configure permissions per project, team, or artifact

• AI-integrated: Native support for AI-generated and AI-refined diagrams

The Five Execution Environments:

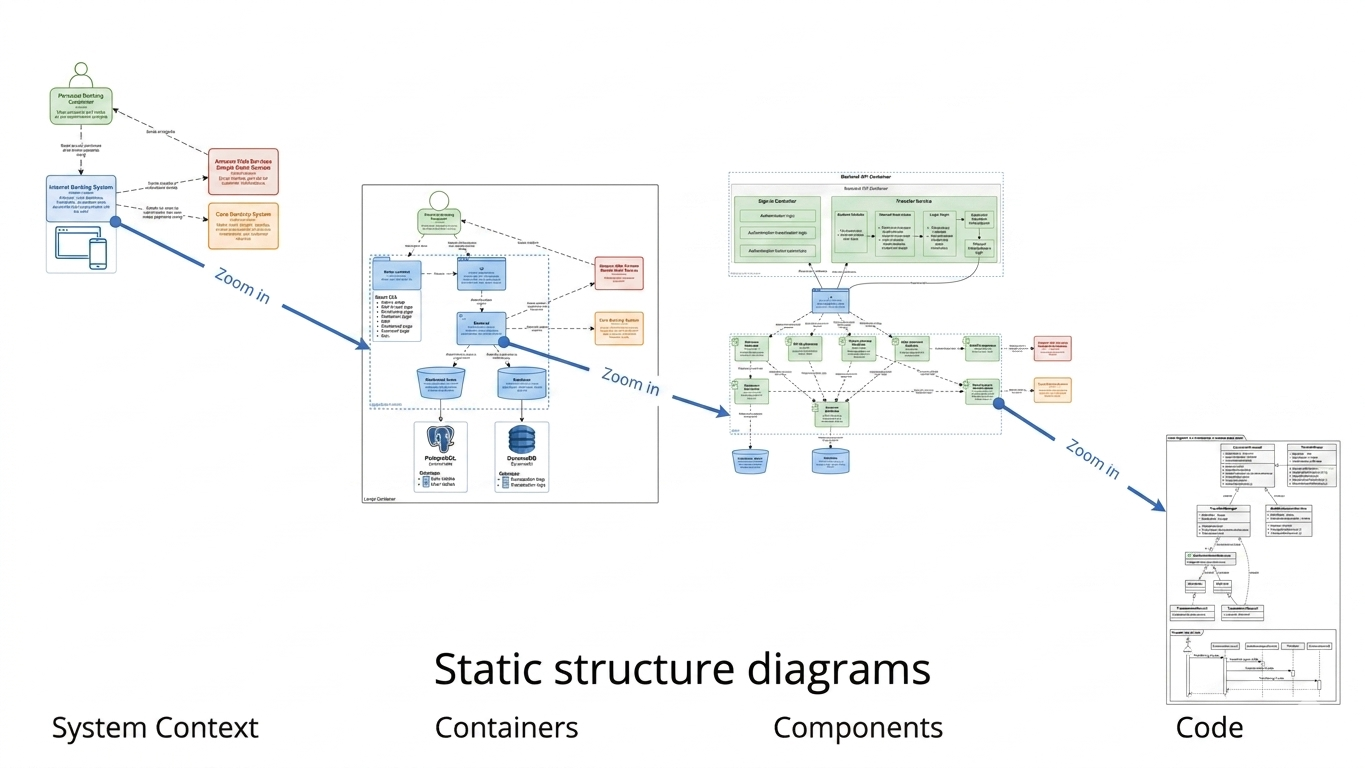

The C4 Model

The C4 model, created by Simon Brown, is a hierarchical approach to visualizing software architecture across four levels:

Dynamic views (Sequence, Deployment) complement the static structure, showing runtime behavior and infrastructure.

Part 2: Step-by-Step Workflow Guide

Step 1: Ideation with the AI Chatbot

Goal: Transform a vague idea into a visual prototype in seconds.

Workflow:

1. Access the AI Chatbot via your Visual Paradigm workspace or chat.visual-paradigm.com

2. Prompt the AI using natural language describing your system or scenario:

   "Generate a C4 System Context diagram for an e-commerce platform"
   "Create a sequence diagram for our microservices authentication flow"
   "Show me a use case diagram for a food delivery app"


3. Review and refine iteratively using follow-up commands:

   • “Add an admin actor who can reset passwords”

   • “Insert a retry loop if OTP validation fails (max 3 attempts)”

   • “Show parallel messages: after payment success, notify customer and update inventory simultaneously”

4. Export to Pipeline: Click the Export icon → Select Send to OpenDocs Pipeline

5. Add Metadata: Include descriptive comments like “Baseline auth flow draft – Q2 2026” for version identification

💡 Pro Tip: Use the Chatbot for rapid iteration on early-stage concepts. Once a diagram stabilizes, migrate it to Desktop for semantic validation and automated sync.

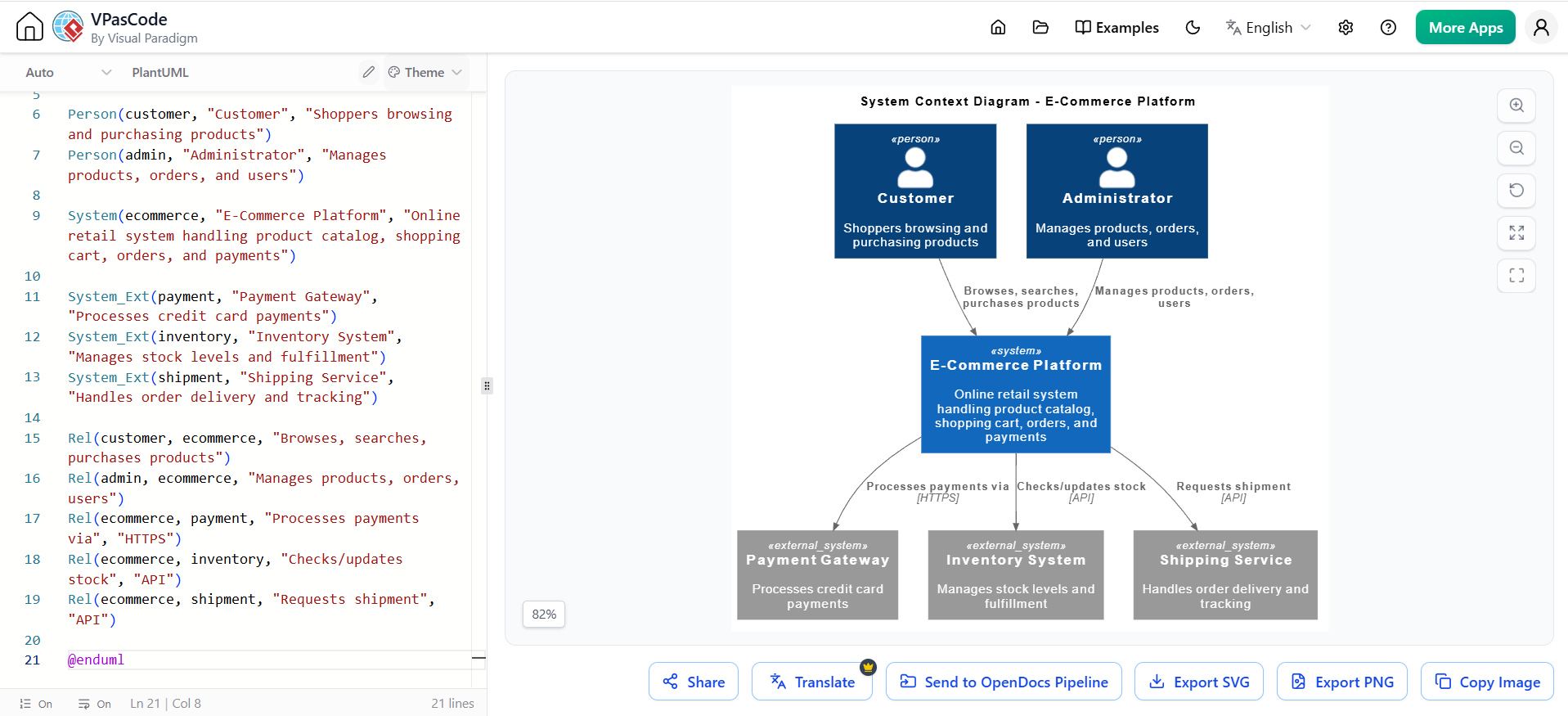

Example PlantUML for C4 Context Diagram

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Context.puml

title System Context Diagram - E-Commerce Platform

Person(customer, "Customer", "Shoppers browsing and purchasing products")
Person(admin, "Administrator", "Manages products, orders, and users")

System(ecommerce, "E-Commerce Platform", "Online retail system handling product catalog, shopping cart, orders, and payments")

System_Ext(payment, "Payment Gateway", "Processes credit card payments")
System_Ext(inventory, "Inventory System", "Manages stock levels and fulfillment")
System_Ext(shipment, "Shipping Service", "Handles order delivery and tracking")

Rel(customer, ecommerce, "Browses, searches, purchases products")
Rel(admin, ecommerce, "Manages products, orders, users")
Rel(ecommerce, payment, "Processes payments via", "HTTPS")
Rel(ecommerce, inventory, "Checks/updates stock", "API")
Rel(ecommerce, shipment, "Requests shipment", "API")

@enduml

Edit Plantuml in VPasCode

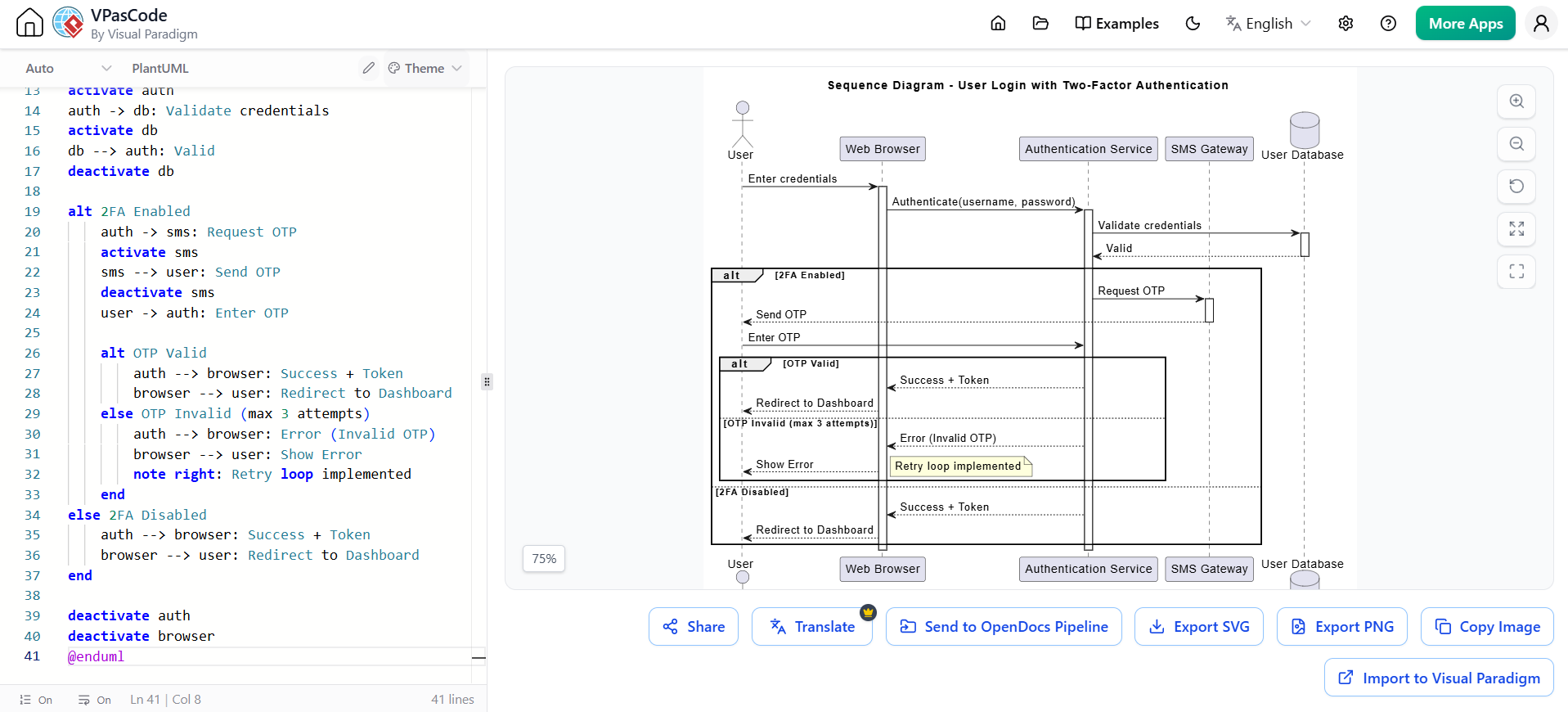

Example PlantUML for Sequence Diagram

@startuml
title Sequence Diagram - User Login with Two-Factor Authentication

actor "User" as user
participant "Web Browser" as browser
participant "Authentication Service" as auth
participant "SMS Gateway" as sms
database "User Database" as db

user -> browser: Enter credentials
activate browser
browser -> auth: Authenticate(username, password)
activate auth
auth -> db: Validate credentials
activate db
db --> auth: Valid
deactivate db

alt 2FA Enabled
    auth -> sms: Request OTP
    activate sms
    sms --> user: Send OTP
    deactivate sms
    user -> auth: Enter OTP

    alt OTP Valid
        auth --> browser: Success + Token
        browser --> user: Redirect to Dashboard
    else OTP Invalid (max 3 attempts)
        auth --> browser: Error (Invalid OTP)
        browser --> user: Show Error
        note right: Retry loop implemented
    end
else 2FA Disabled
    auth --> browser: Success + Token
    browser --> user: Redirect to Dashboard
end

deactivate auth
deactivate browser
@enduml

Edit Plantuml in VPasCode

Step 2: Structured Refinement with C4-PlantUML Studio

Goal: Evolve the AI-generated sketch into a complete, standards-compliant C4 model.

Workflow:

1. Launch the C4 Architecture Guide from the Web Apps menu

2. Define the Problem Statement – Use AI Assist to generate a full description:

   • Project name

   • System purpose

   • Primary users

   • Key integrations

3. Generate Each C4 Layer Step-by-Step:

   • Level 1 – System Context: Input system boundaries, external users, and dependent systems

   • Level 2 – Containers: Configure deployable applications, databases, and external services

   • Level 3 – Components: Refine internal code modules and their interactions

   • Level 4 – Code (optional): Map to actual code structures

4. Add Supporting Views:

   • Dynamic/Sequence Diagrams: Show runtime interactions

   • Deployment Diagrams: Map software to infrastructure

   • Landscape Diagrams: Show system in broader enterprise context

5. Stream to Pipeline: Click Stream Structure to Pipeline to export the entire hierarchical model block

🎯 Use Case: Ideal for architecture review boards, onboarding documentation, and stakeholder presentations where multi-layer clarity is essential.

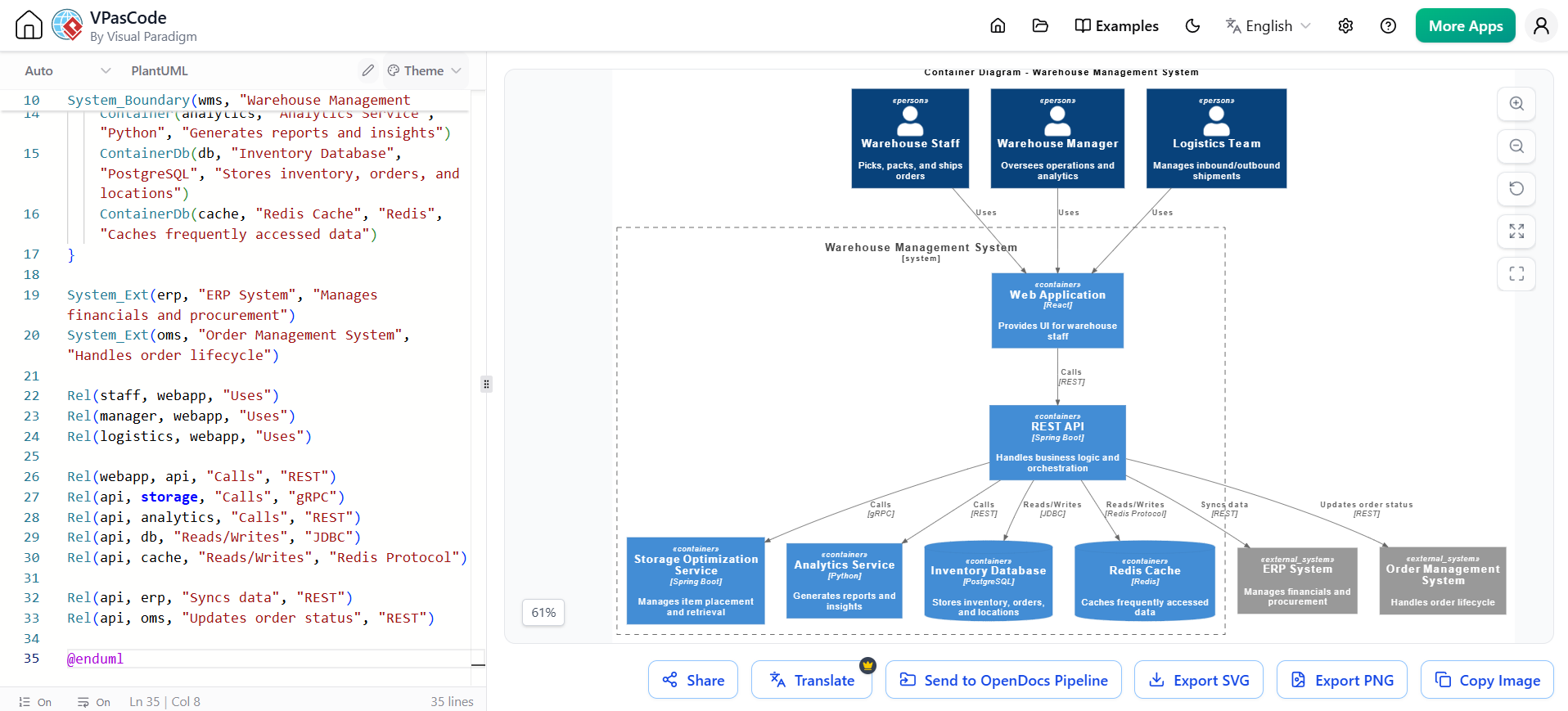

Example C4 Container Diagram (PlantUML)

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml

title Container Diagram - Warehouse Management System

Person(staff, "Warehouse Staff", "Picks, packs, and ships orders")
Person(manager, "Warehouse Manager", "Oversees operations and analytics")
Person(logistics, "Logistics Team", "Manages inbound/outbound shipments")

System_Boundary(wms, "Warehouse Management System") {
    Container(webapp, "Web Application", "React", "Provides UI for warehouse staff")
    Container(api, "REST API", "Spring Boot", "Handles business logic and orchestration")
    Container(storage, "Storage Optimization Service", "Spring Boot", "Manages item placement and retrieval")
    Container(analytics, "Analytics Service", "Python", "Generates reports and insights")
    ContainerDb(db, "Inventory Database", "PostgreSQL", "Stores inventory, orders, and locations")
    ContainerDb(cache, "Redis Cache", "Redis", "Caches frequently accessed data")
}

System_Ext(erp, "ERP System", "Manages financials and procurement")
System_Ext(oms, "Order Management System", "Handles order lifecycle")

Rel(staff, webapp, "Uses")
Rel(manager, webapp, "Uses")
Rel(logistics, webapp, "Uses")

Rel(webapp, api, "Calls", "REST")
Rel(api, storage, "Calls", "gRPC")
Rel(api, analytics, "Calls", "REST")
Rel(api, db, "Reads/Writes", "JDBC")
Rel(api, cache, "Reads/Writes", "Redis Protocol")

Rel(api, erp, "Syncs data", "REST")
Rel(api, oms, "Updates order status", "REST")

@enduml

Edit Plantuml in VPasCode

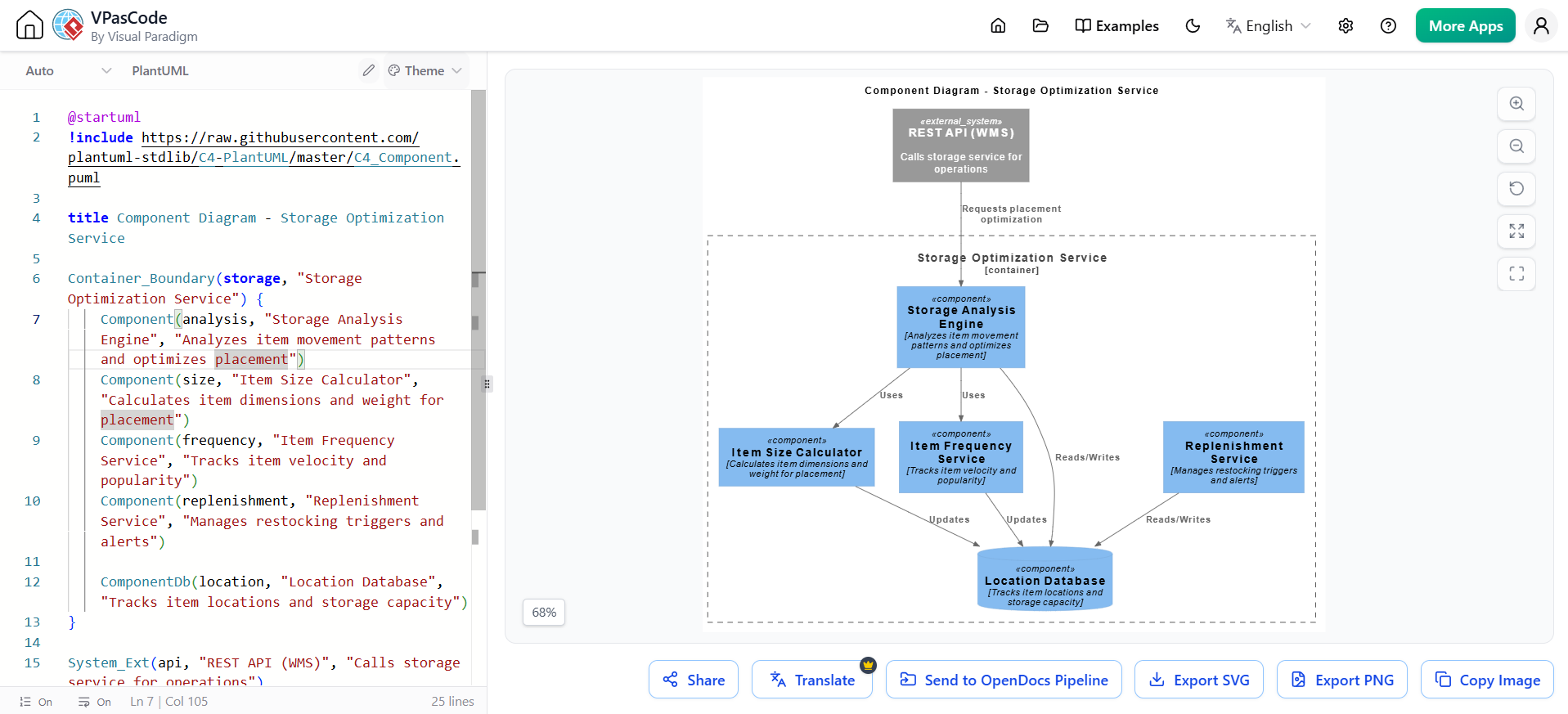

Example Component Diagram (PlantUML)

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Component.puml

title Component Diagram - Storage Optimization Service

Container_Boundary(storage, "Storage Optimization Service") {
    Component(analysis, "Storage Analysis Engine", "Analyzes item movement patterns and optimizes placement")
    Component(size, "Item Size Calculator", "Calculates item dimensions and weight for placement")
    Component(frequency, "Item Frequency Service", "Tracks item velocity and popularity")
    Component(replenishment, "Replenishment Service", "Manages restocking triggers and alerts")

    ComponentDb(location, "Location Database", "Tracks item locations and storage capacity")
}

System_Ext(api, "REST API (WMS)", "Calls storage service for operations")

Rel(api, analysis, "Requests placement optimization")
Rel(analysis, size, "Uses")
Rel(analysis, frequency, "Uses")
Rel(analysis, location, "Reads/Writes")
Rel(size, location, "Updates")
Rel(frequency, location, "Updates")
Rel(replenishment, location, "Reads/Writes")

@enduml

Edit Plantuml in VPasCode

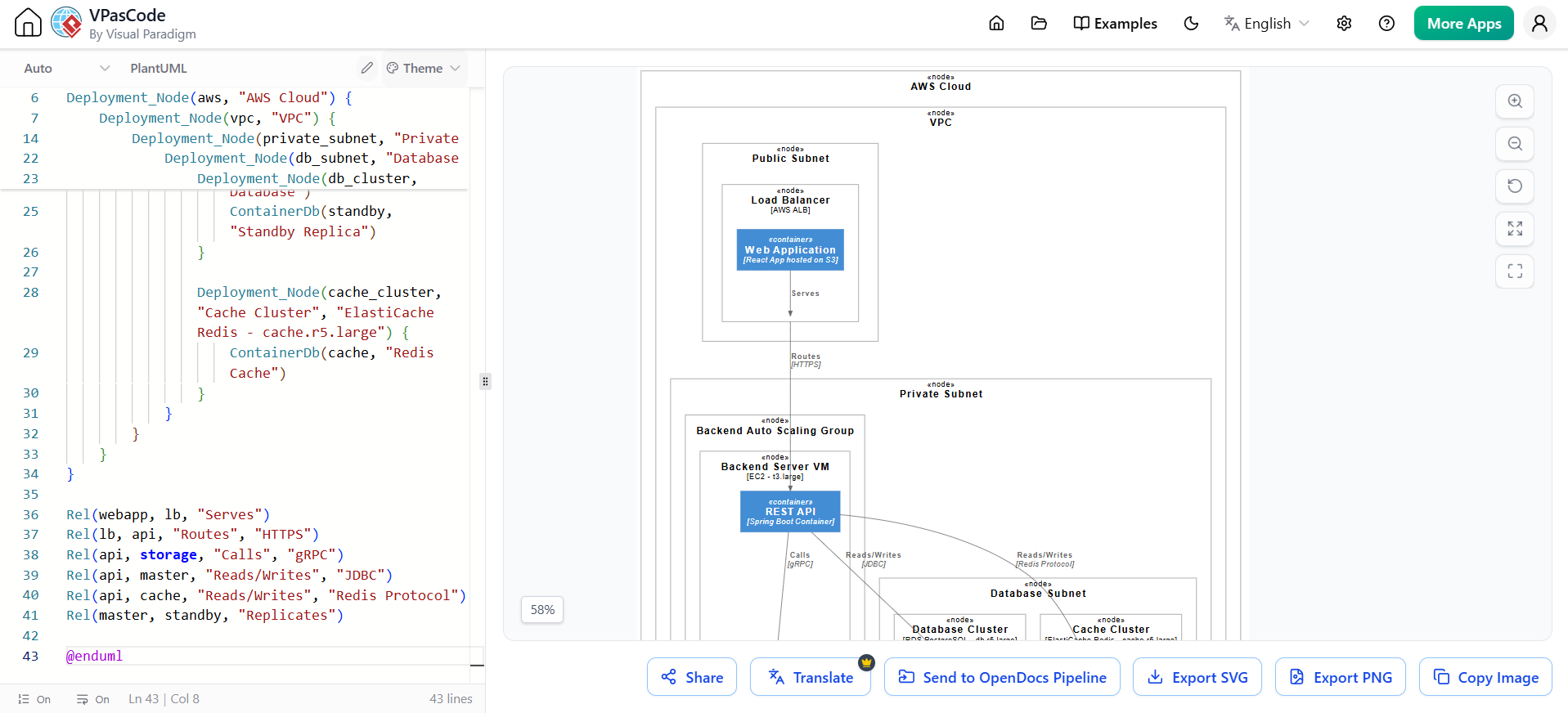

Example Deployment Diagram (PlantUML)

@startuml
!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Deployment.puml

title Deployment Diagram - Warehouse Management System

Deployment_Node(aws, "AWS Cloud") {
    Deployment_Node(vpc, "VPC") {
        Deployment_Node(public_subnet, "Public Subnet") {
            Deployment_Node(lb, "Load Balancer", "AWS ALB") {
                Container(webapp, "Web Application", "React App hosted on S3")
            }
        }

        Deployment_Node(private_subnet, "Private Subnet") {
            Deployment_Node(backend_asg, "Backend Auto Scaling Group") {
                Deployment_Node(backend_vm, "Backend Server VM", "EC2 - t3.large") {
                    Container(api, "REST API", "Spring Boot Container")
                    Container(storage, "Storage Optimization", "Spring Boot Container")
                }
            }

            Deployment_Node(db_subnet, "Database Subnet") {
                Deployment_Node(db_cluster, "Database Cluster", "RDS PostgreSQL - db.r5.large") {
                    ContainerDb(master, "Primary Database")
                    ContainerDb(standby, "Standby Replica")
                }

                Deployment_Node(cache_cluster, "Cache Cluster", "ElastiCache Redis - cache.r5.large") {
                    ContainerDb(cache, "Redis Cache")
                }
            }
        }
    }
}

Rel(webapp, lb, "Serves")
Rel(lb, api, "Routes", "HTTPS")
Rel(api, storage, "Calls", "gRPC")
Rel(api, master, "Reads/Writes", "JDBC")
Rel(api, cache, "Reads/Writes", "Redis Protocol")
Rel(master, standby, "Replicates")

@enduml

Edit Plantuml in VPasCode

Step 3: Refine and Enrich Relationships

Goal: Transform the initial C4 model into a precise, maintainable architecture with proper relationships.

Key Relationship Patterns:

AI-Suggested Refinements:

• Commonality Extraction: Identifying redundant steps → suggest «include» relationships

• Conditional Logic Branching: Detecting “if-then” scenarios → suggest «extend» relationships

• Actor Generalization: Finding overlapping responsibilities → suggest hierarchy

• Complexity Decomposition: Identifying overly large use cases → break into sub-diagrams

Key Insight: The AI removes the mechanical work of drawing arrows and spotting patterns, while your domain knowledge ensures relationships make real business sense.

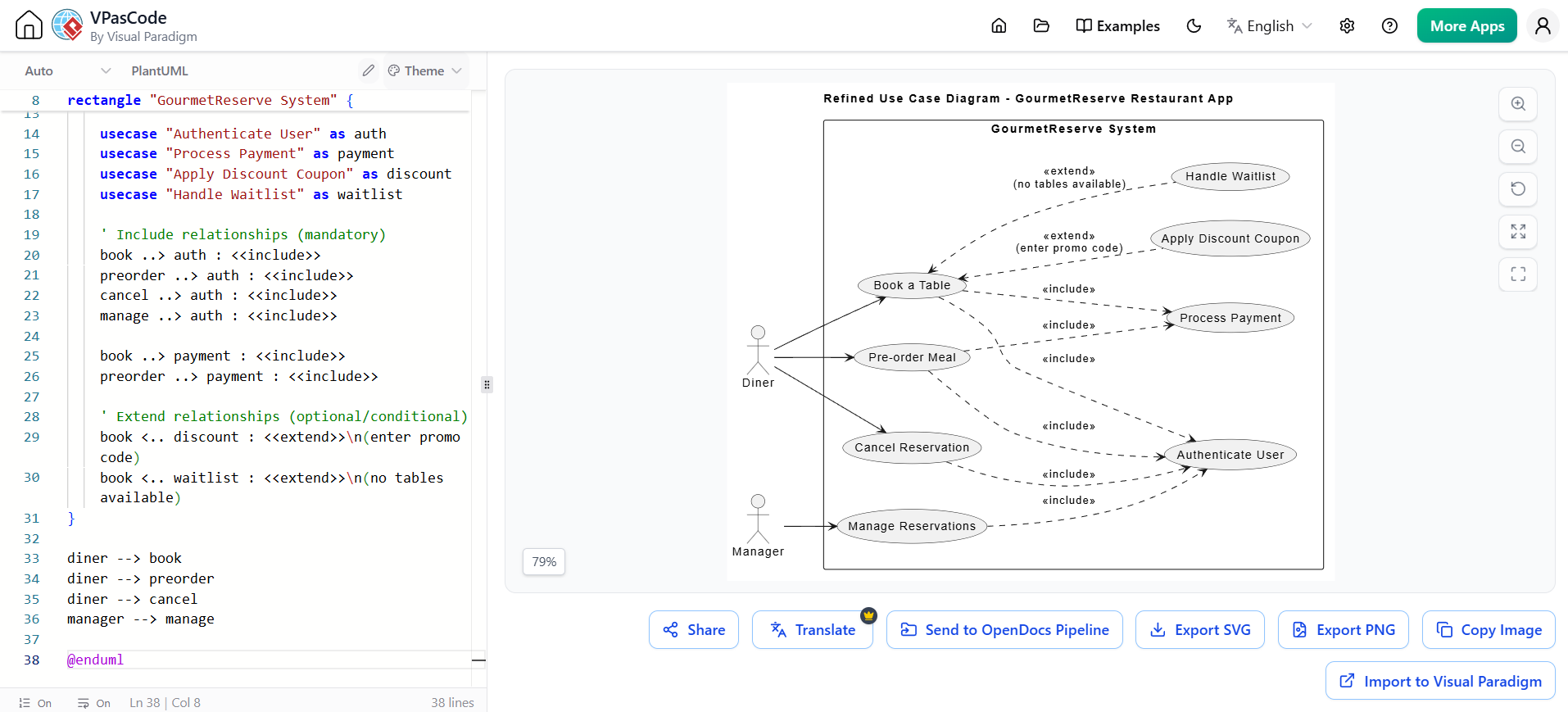

Example Use Case Diagram with Refined Relationships

@startuml
title Refined Use Case Diagram - GourmetReserve Restaurant App

left to right direction
actor "Diner" as diner
actor "Manager" as manager

rectangle "GourmetReserve System" {
    usecase "Book a Table" as book
    usecase "Pre-order Meal" as preorder
    usecase "Cancel Reservation" as cancel
    usecase "Manage Reservations" as manage

    usecase "Authenticate User" as auth
    usecase "Process Payment" as payment
    usecase "Apply Discount Coupon" as discount
    usecase "Handle Waitlist" as waitlist

    ' Include relationships (mandatory)
    book ..> auth : <<include>>
    preorder ..> auth : <<include>>
    cancel ..> auth : <<include>>
    manage ..> auth : <<include>>

    book ..> payment : <<include>>
    preorder ..> payment : <<include>>

    ' Extend relationships (optional/conditional)
    book <.. discount : <<extend>>\n(enter promo code)
    book <.. waitlist : <<extend>>\n(no tables available)
}

diner --> book
diner --> preorder
diner --> cancel
manager --> manage

@enduml

Edit Plantuml in VPasCode

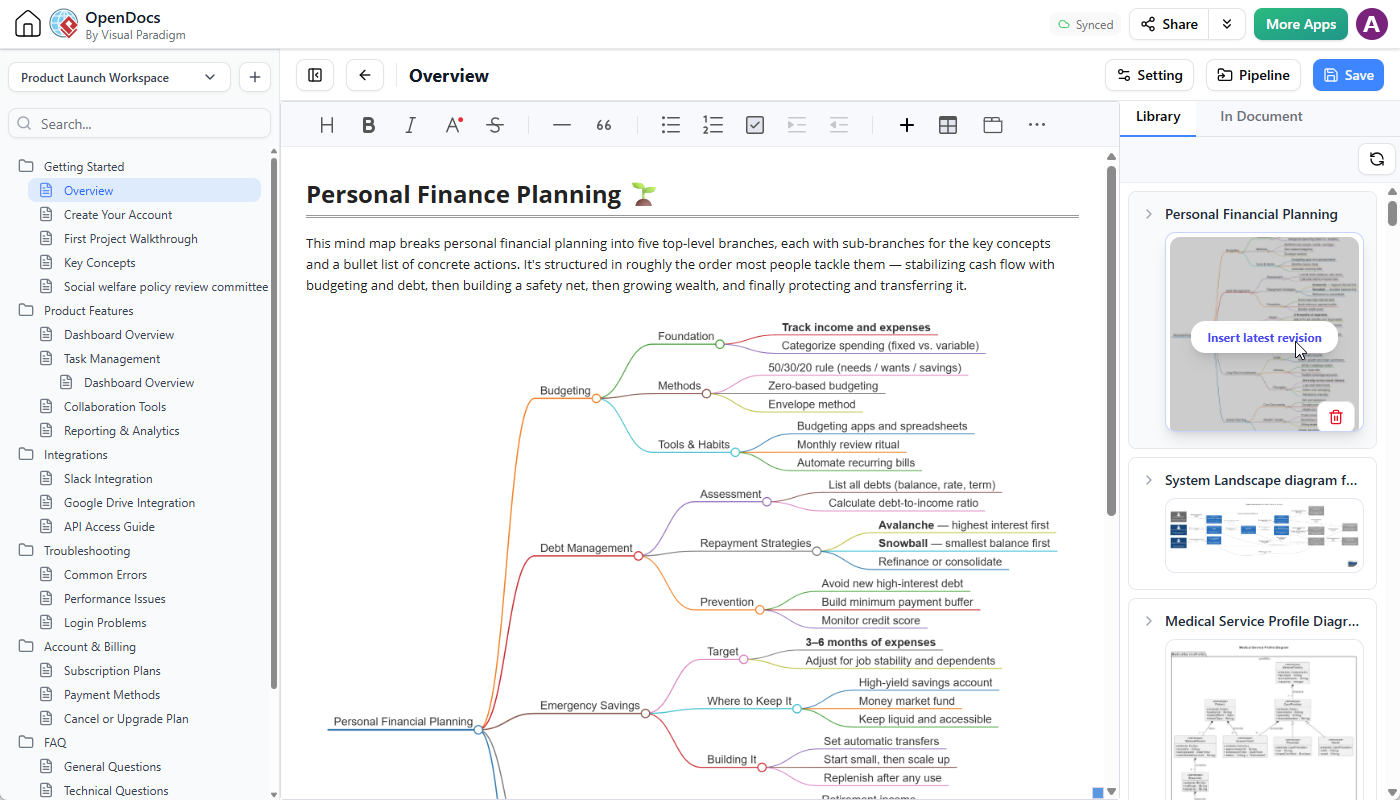

Step 4: OpenDocs – The Living Documentation Hub

Goal: Compile and publish living documentation where diagrams auto-update when source models change.

Workflow:

1. Open your technical manual in the OpenDocs document editor

2. Position cursor at the desired insertion point

3. Insert Pipeline Artifact:

   • Toolbar → Insert → Pipeline (left sidebar)

   • Browse the shared team collection

   • Filter by comment, date, or source platform

4. Render inline: The diagram appears instantly with full resolution and interactive capabilities

5. Write surrounding context using Markdown with live preview:

   • Rich text editing

   • Tables, code blocks, hierarchical folders

   • All while diagrams stay interactive

6. Manage Updates:

   • A floating Revision Indicator (🔄) appears next to embedded diagrams when newer Pipeline versions exist

   • Click the indicator to view chronological timestamps, commit notes, and source platform side-by-side

   • Swap versions to update your master document instantly

   • Previous versions remain accessible for audit trails or rollback scenarios

💡 Key Concept: Unlike standard text platforms where images are static snapshots, embedded visuals in OpenDocs remain live vectors. Users can click the element directly inside the document to open the source model and update it.

Example OpenDocs Content Structure

📁 Project Documentation
├── 📄 01 - Executive Summary
│   └── [AI-Generated Stakeholder Summary with System Context Diagram]
├── 📄 02 - Architecture Overview
│   ├── [C4 Context Diagram - Live]
│   ├── [C4 Container Diagram - Live]
│   └── Technology Stack Decisions
├── 📄 03 - Detailed Design
│   ├── [Component Diagrams - Live]
│   ├── [Sequence Diagrams - Live]
│   └── API Specifications
├── 📄 04 - Deployment Architecture
│   ├── [Deployment Diagram - Live]
│   └── Infrastructure Requirements
└── 📄 05 - Quality Assurance
    ├── [Test Cases from AI Generator]
    └── Coverage Metrics

Step 5: Quality Assurance and Testing

Goal: Automatically generate traceable test cases from your models.

AI-Generated Test Assets:

Example AI-Generated Test Cases:

TC-001 – Happy Path – No Deposit Required
Priority: High
Preconditions: Diner logged in (Gold loyalty), tables available, non-peak hours, party size 4
Steps:
  1. Search tables → select slot
  2. Review summary (no deposit shown)
  3. Confirm booking
Expected: Reservation confirmed, confirmation sent, no payment screen
Trace: Main flow steps 1–7, Decision Table Rule R1

TC-002 – Deposit Required – Payment Fails
Priority: High
Preconditions: Party size 10, peak hours, non-Gold, valid card but insufficient funds
Steps:
  1. Select slot → proceed to payment
  2. Enter card → submit
Expected: Error message "Payment declined", booking not created, return to slot selection
Trace: Decision Table Rule R5, Exception flow 4b

Step 6: Synchronization and Continuous Updates

Goal: Maintain a single source of truth across all artifacts.

The Closed-Loop Workflow:

Bidirectional Sync Benefits:

• Update a class in Desktop → refreshes in OpenDocs automatically

• Refine a prompt in the Chatbot → push changes back to Studios

• Single-account synchronization

• Version history and full traceability

• Zero manual rework

Part 3: Guidelines and Best Practices

1. AI Chatbot Best Practices

Effective Prompting Techniques:

Iterative Refinement Commands:

"Add a retry loop if OTP validation fails (max 3 attempts)"
"Insert two-factor step only if user has 2FA enabled (use opt fragment)"
"Show parallel messages: after payment success, notify customer and update inventory simultaneously"
"Change the PaymentGateway lifeline to show a timeout after 30 seconds"
"Add a self-message on OrderService to calculate total before calling PaymentGateway"

2. C4 Modeling Best Practices

Layer-Specific Guidelines:

General C4 Principles:

• Each level should provide a different perspective, not just more detail

• Diagrams should be self-explanatory with minimal text

• Maintain consistency of terminology across all levels

• Use color coding to differentiate system vs. external components

3. Pipeline Best Practices

Metadata Management:

Version Management:

• Review revisions before swapping in documents

• Keep previous versions accessible for audit trails

• Use the Revision Indicator (🔄) to identify outdated diagrams

• Batch updates when possible to maintain document coherence

4. OpenDocs Best Practices

Documentation Structure:

JIT (Just-in-Time) Embedding Pathways:

1. Ad Hoc Embedding: Click Insert > Diagram directly within a document page

2. AI-Driven Generation: Use natural language to create diagrams inside the text narrative

3. Central Asset Pipeline: Push from Desktop/Online to Pipeline; pull into documents

5. Quality Assurance Best Practices

Traceability Requirements:

Test Coverage Metrics:

• Monitor completeness via Project Dashboard

• Track coverage across: use cases, decision tables, scenarios (happy path, alternatives, exceptions, boundary cases)

• Risk-based prioritization of remaining test cases

6. Reporting and Documentation Best Practices

AI-Generated Report Structure:

Part 4: End-to-End Workflow Example

Scenario: Building a Warehouse Management System

Step 1: AI Chatbot – Ideation

Prompt: "Create a C4 System Context diagram for a Warehouse Management System
that integrates with ERP and Order Management"

Output: Initial Context diagram showing users (Warehouse Staff, Manager, Logistics) and external systems (ERP, OMS).

Step 2: C4-PlantUML Studio – Guided Refinement

• Define problem statement with AI Assist

• Generate Container Diagram: Web App (React), Storage Optimization Service (Spring Boot), Inventory Database (PostgreSQL)

• Generate Component Diagram: Storage Analysis Engine, Item Size Calculator, Item Frequency Service, Replenishment Service

• Generate Deployment Diagram: AWS architecture with EC2, RDS, ElastiCache

• Add Dynamic Views: Sequence diagrams for inventory movement tracking

Step 3: Relationship Refinement
AI identifies and suggests:

• «include» → Authenticate User for all use cases

• «include» → Process Payment for Book a Table and Pre-order Meal

• «extend» → Apply Discount Coupon (conditional on promo code)

• «extend» → Handle Waitlist (conditional on no tables available)

Step 4: OpenDocs – Living Documentation

• Insert all Pipeline artifacts into documentation pages

• Write Markdown explanations with embedded live diagrams

• Add test cases automatically generated from use cases and decision tables

• Publish to stakeholder portal via secure sharing link

Step 5: Synchronization

• Two weeks later, engineering alters the storage optimization algorithm

• Architect edits the diagram in VP Desktop

• OpenDocs flags sync change to authoring team

• Team swaps to new revision without breaking manual formatting

• All stakeholders see updated documentation immediately

Part 5: Summary and Key Takeaways

The Value Proposition

Visual Paradigm’s AI ecosystem transforms fragmented “Concept-to-Docs” workflows into a unified automated pipeline where visual models and documentation evolve together as a single source of truth.

Key Benefits:

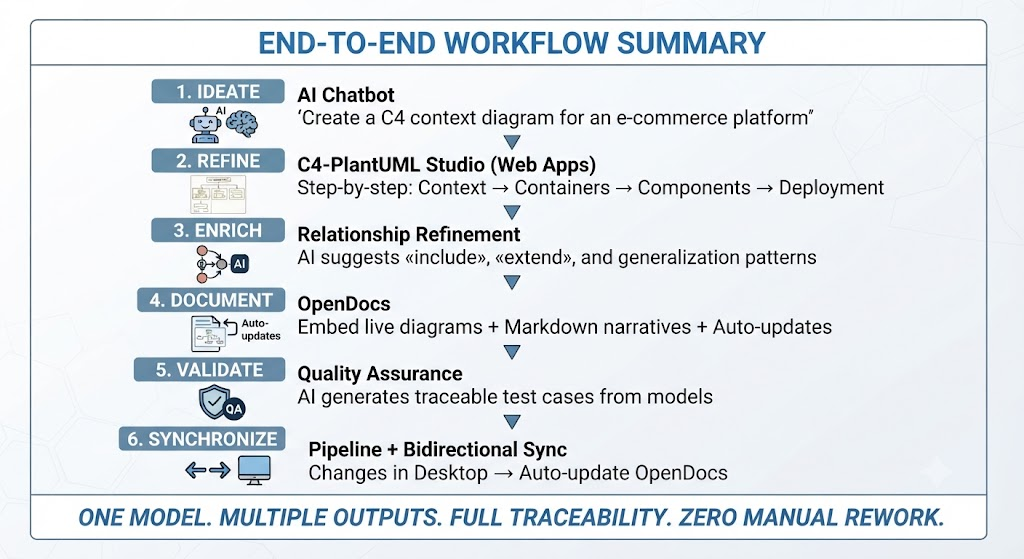

Final Workflow Summary

Quick Reference: Which Tool for Which Task

Appendix: PlantUML Code Snippets Quick Reference

C4 Context

!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Context.puml
Person(user, "User", "Description")
System(system, "System Name", "Description")
System_Ext(external, "External System", "Description")
Rel(user, system, "Uses", "Protocol")

Edit Plantuml in VPasCode

C4 Container

!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Container.puml
Container(container, "Container Name", "Technology", "Description")
ContainerDb(db, "Database", "PostgreSQL", "Stores data")

Edit Plantuml in VPasCode

C4 Component

!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Component.puml
Component(component, "Component Name", "Description")

Edit Plantuml in VPasCode

C4 Deployment

!include https://raw.githubusercontent.com/plantuml-stdlib/C4-PlantUML/master/C4_Deployment.puml
Deployment_Node(node, "Node Name", "Technology")

Edit Plantuml in VPasCode

Sequence Diagram

actor "Actor Name" as actor
participant "Participant" as participant
actor -> participant: Message
activate participant
participant --> actor: Return
deactivate participant

Edit Plantuml in VPasCode

Use Case Diagram

actor "User" as user
usecase "Use Case" as uc
user --> uc
uc ..> included : <<include>>
uc <.. extended : <<extend>>

Edit Plantuml in VPasCode

Conclusion

Visual Paradigm’s AI-powered ecosystem represents a significant leap forward in how technical teams manage complexity. By integrating AI-driven ideation, structured C4 modeling, and living documentation into a single pipeline, it eliminates the traditional friction between design and documentation.

Whether you are brainstorming a new microservice architecture, refining enterprise-level deployment strategies, or ensuring your onboarding docs stay current, this workflow ensures that your visual models and textual explanations remain synchronized, accurate, and accessible. Start with the AI Chatbot for rapid ideation, use C4-PlantUML Studio for structured refinement, and complete the loop with OpenDocs for living documentation that automatically stays synchronized with your evolving architecture.
