Step-by-Step Enterprise Architecture Tutorial with TOGAF

A Comprehensive Guide to Developing Enterprise Architecture Using TOGAF ADM and Visual Paradigm

Introduction to TOGAF

TOGAF (The Open Group Architecture Framework) is a globally recognized enterprise architecture framework that provides methods and tools for assisting in the acceptance, production, use, and maintenance of an enterprise architecture.

Key Benefits of TOGAF:

✅ Iterative process model supported by best practices
✅ Re-usable architecture assets to accelerate development
✅ Standardized methodology for consistent results
✅ Scalable approach suitable for organizations of any size

TOGAF is based on an iterative process model supported by best practices and a re-usable set of existing architecture assets, enabling organizations to transform their enterprises in a controlled manner in response to business goals and opportunities.

TOGAF ADM for EA Development

The Architecture Development Method (ADM) is central to TOGAF. It describes a method for developing and managing the lifecycle of enterprise architecture and forms the core of the framework.

The ADM integrates:

Elements of TOGAF described in official documentation
Other available architectural assets
Business and IT needs of the organization

The TOGAF Architecture Development Method (ADM) provides a tested and repeatable process for developing architectures. Each phase contains an iterative (continuous) sequence of steps to develop an enterprise-wide Architecture.

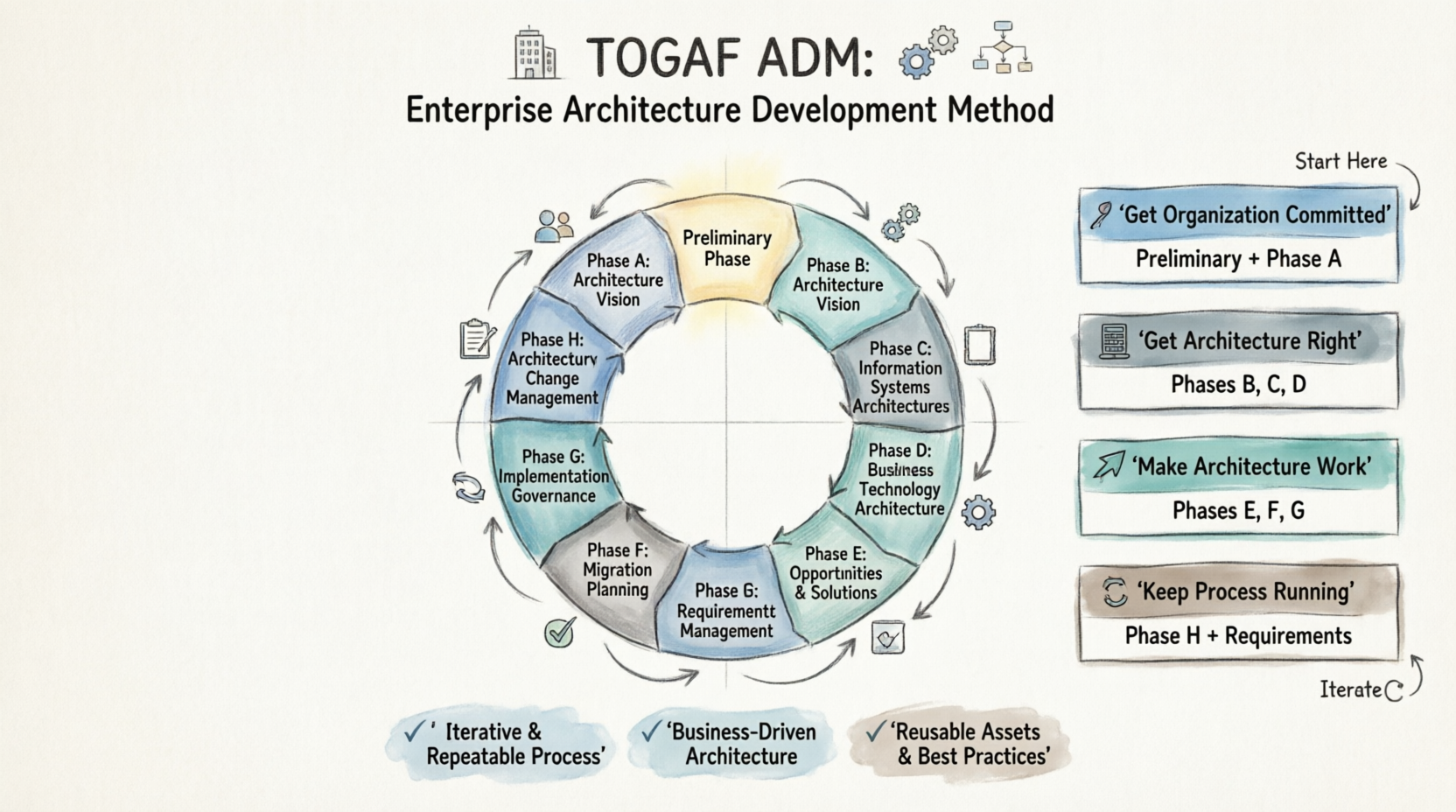

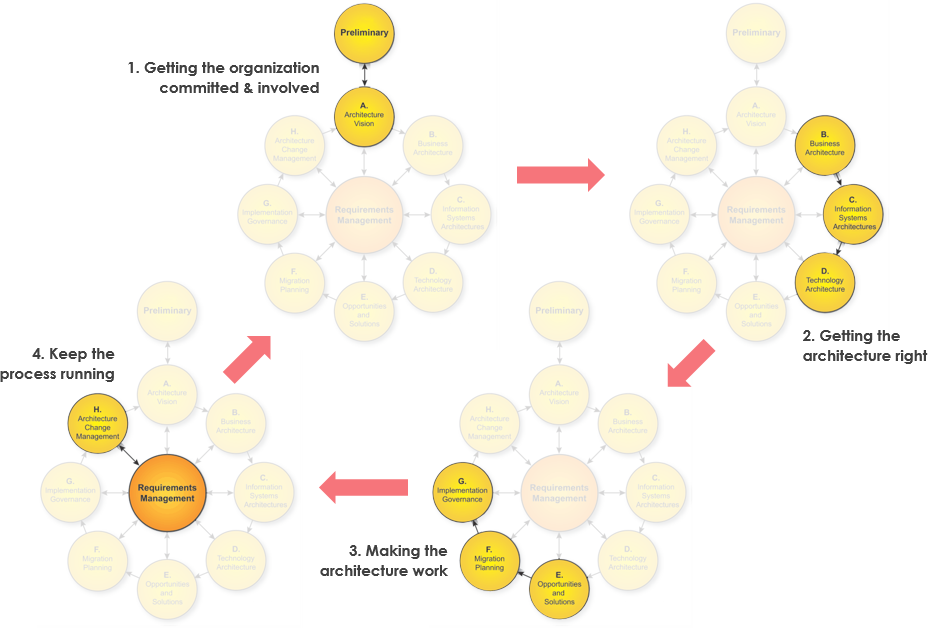

ADM Phase Groupings:

🎯 Getting the Organization Committed and Involved

Preliminary Phase: Preparation and framework definition
Phase A: Architecture Vision: Scope definition and stakeholder alignment

🏗️ Getting the Architecture Right

Phase B: Business Architecture: Business processes and capabilities
Phase C: Information Systems Architectures: Data and Application architectures
Phase D: Technology Architecture: Infrastructure and technical standards

🚀 Making the Architecture Work

Phase E: Opportunities & Solutions: Implementation planning
Phase F: Migration Planning: Transition architecture sequencing
Phase G: Implementation Governance: Oversight and compliance

🔄 Keeping the Process Running

Phase H: Architecture Change Management: Change control procedures
Requirements Management: Continuous requirements governance

Development Phases of Architecture Development Method

The TOGAF Architecture Development Method (ADM) provides a tested and repeatable process for developing architectures. The ADM includes:

Establishing an architecture framework
Developing architecture content
Transitioning architectures
Governing the realization of architecture

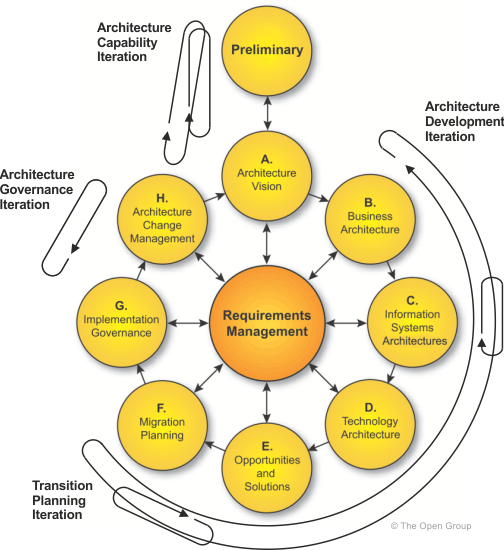

All activities are carried out within an iterative cycle of continuous architecture definition and realization.

Detailed Phase Descriptions:

Phase	Name	Primary Focus
Preliminary	Preparation	Define organization-specific framework and principles
A	Architecture Vision	Define scope, stakeholders, and obtain approvals
B	Business Architecture	Develop business processes supporting the vision
C	Information Systems Architectures	Develop Data and Application architectures
D	Technology Architecture	Define infrastructure and technical standards
E	Opportunities & Solutions	Identify delivery vehicles and implementation options
F	Migration Planning	Create detailed transition sequences and plans
G	Implementation Governance	Provide architectural oversight during implementation
H	Architecture Change Management	Manage changes to the deployed architecture
Requirements Mgmt	Requirements Management	Govern requirements throughout the ADM cycle

Deep Dive: Phase B – Business Architecture

To understand how to adapt ADM for EA development, let’s examine Phase B: Business Architecture as a practical example.

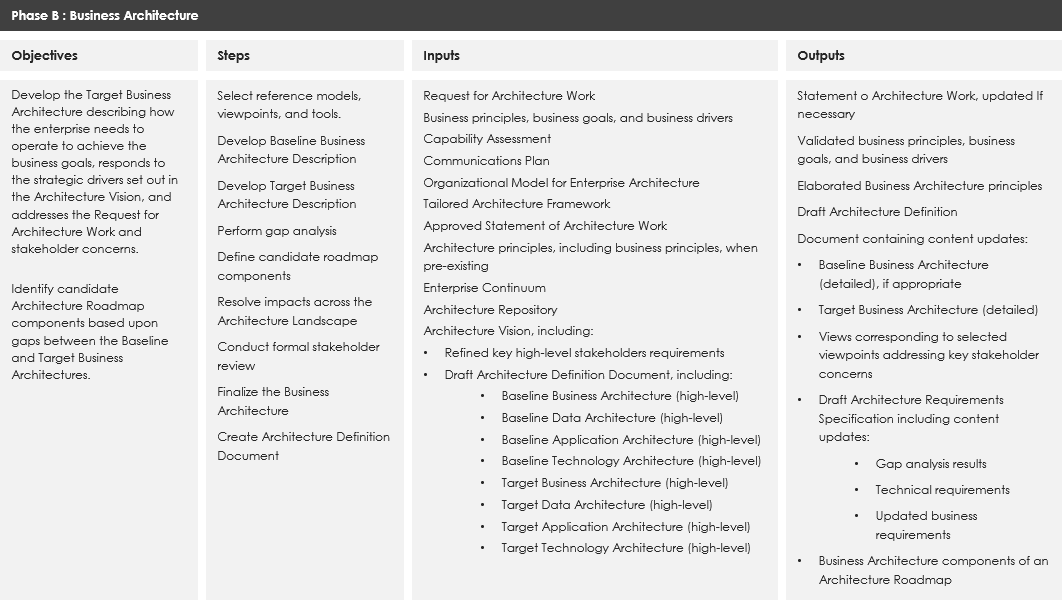

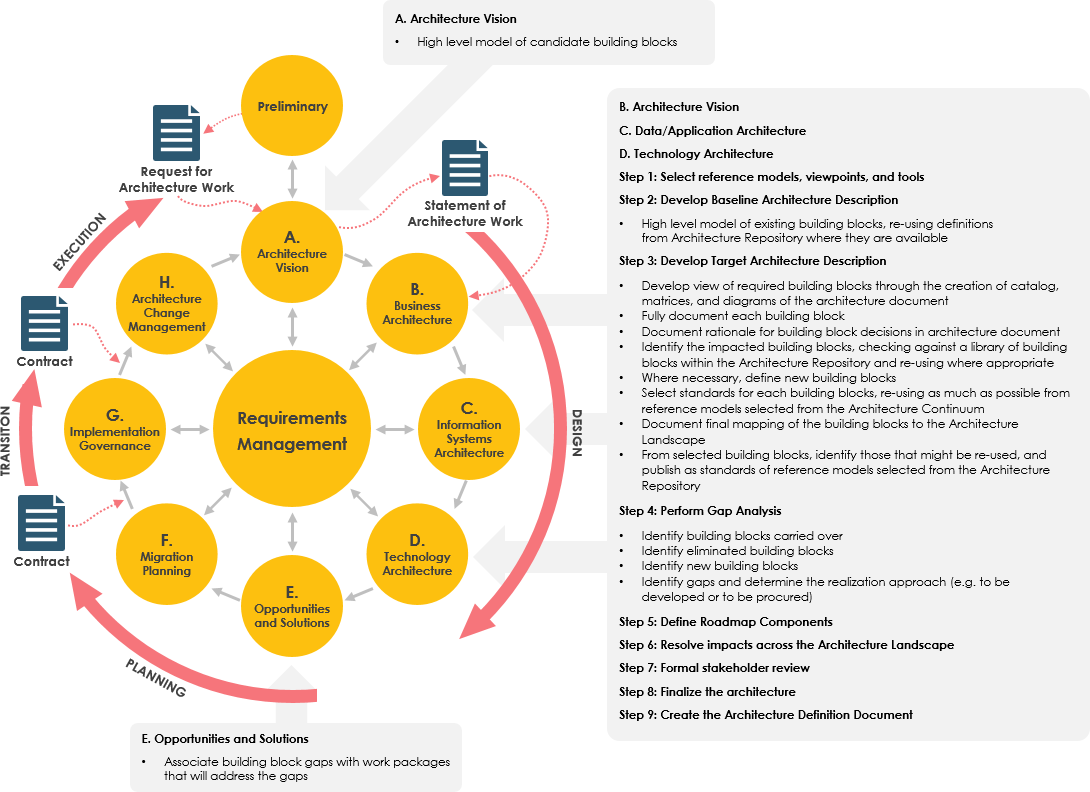

Phase B Workflow (9 Steps):

How to Conduct Development Phase B:

Review Phase Objectives: Understand the goals of Business Architecture development
Reference Prior Work: Consult documentation from Preliminary Phase and Phase A
Execute the 9 Steps: Follow the structured workflow shown in the cheatsheet
Create/Refine Deliverables: Produce new artifacts or iteratively improve existing documentation
Validate Against Objectives: Ensure outputs fulfill the phase’s defined goals

Getting Started with Visual Paradigm

“Enterprise Architecture is essential to every business, yet it’s not easy to master.”

Visual Paradigm provides an intuitive TOGAF ADM process navigator that acts like a personal tutor, guiding you through instructions and ADM examples.

What You’ll Do:

Follow on-screen instructions
Fill in structured forms
Draw ArchiMate 3.0 diagrams
Generate professional deliverables automatically

Key Visual Paradigm Features:

🧭 ADM Process Navigator

Step-by-step guidance through each ADM activity
Activity-by-activity progression with clear instructions

📋 Deliverable Creation

Guided creation of artifacts with contextual help
Automatic generation upon phase completion

🗄️ Architecture Repository

Automatic archiving of deliverables
Centralized asset management

🎓 Learning Support

Built-in samples and case studies
No formal training required

🛠️ Comprehensive Tooling

ArchiMate 3 diagram tool (The Open Group certified)
Implementation Plan Diagrams
Migration Roadmaps
Maturity Analysis (Radar Charts)
PERT Charts, RACI Charts
Implementation Factor Assessment & Deduction Matrix
Consolidated Gaps, Solutions, & Dependencies Matrix

Learn more about ArchiMate tools

Working Through the Preliminary Phase

Step 1: Project Preparation

Create a new project to avoid impacting production data:

Project > New

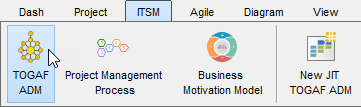

Step 2: Access the ADM Navigator

ITSM > TOGAF ADM

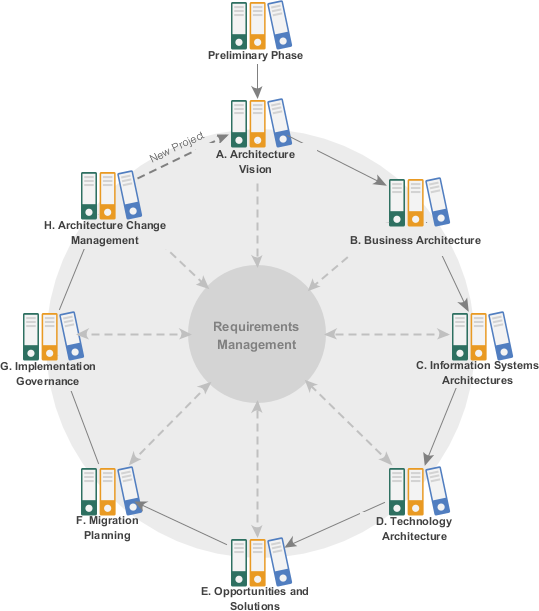

You’ll see the ADM cycle interface. Double-click any phase to view its activities.

Step 3: Launch the Preliminary Phase

Double-click Preliminary Phase in the ADM cycle

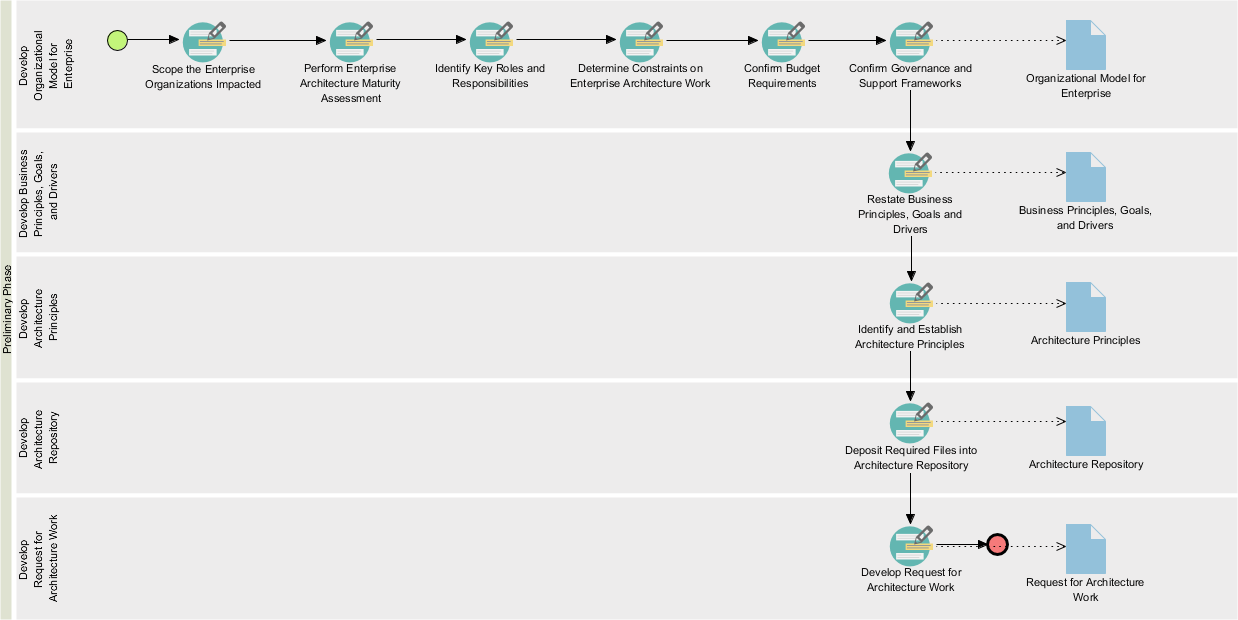

View the process diagram containing required activities:

Understanding the Activity Interface

Each activity contains connected shapes representing the workflow. Follow the arrow connectors to perform activities in the correct sequence.

Open an Activity: Double-click Scope the Enterprise Organizations Impacted

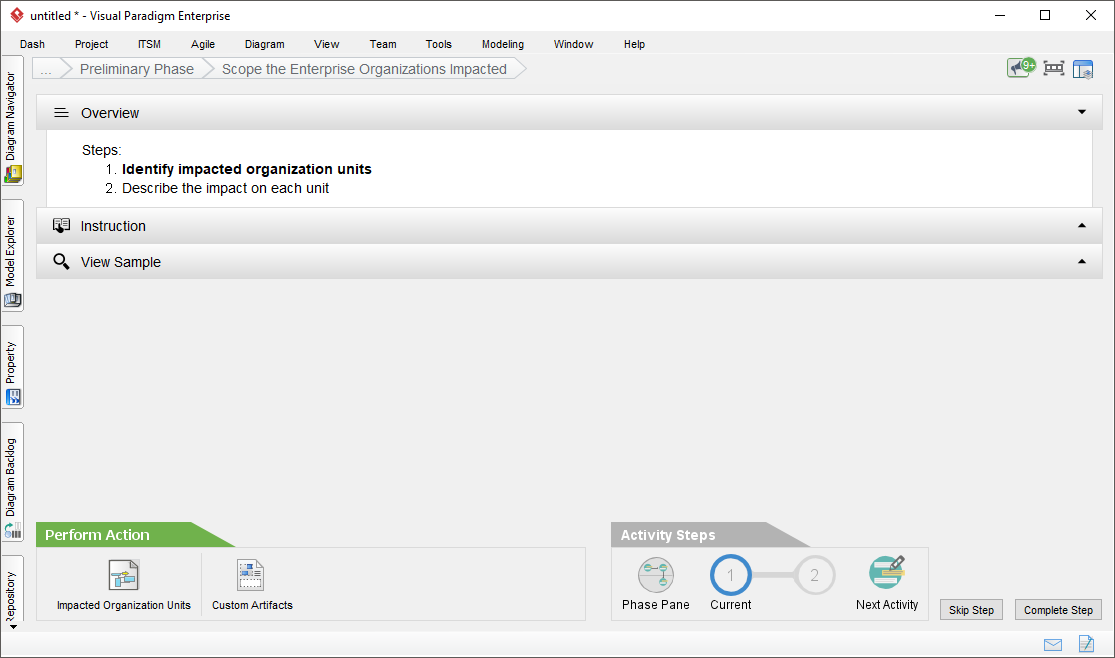

Activity Screen Components:

Component	Description
Overview	Lists required steps; bold text indicates current step. Click Complete Step to progress.
Instruction	Expandable pane with contextual guidance: purpose, actions, expected outcomes.
View Sample	Displays example artifacts (diagrams, forms) for reference and inspiration.
Perform Action	Interactive buttons to execute required tasks. Use Custom Artifacts to add supplementary content.
Activity Steps	Visual progress tracker showing completion status.

Step-by-Step Execution Example:

Step 1: Create Impacted Organization Diagram

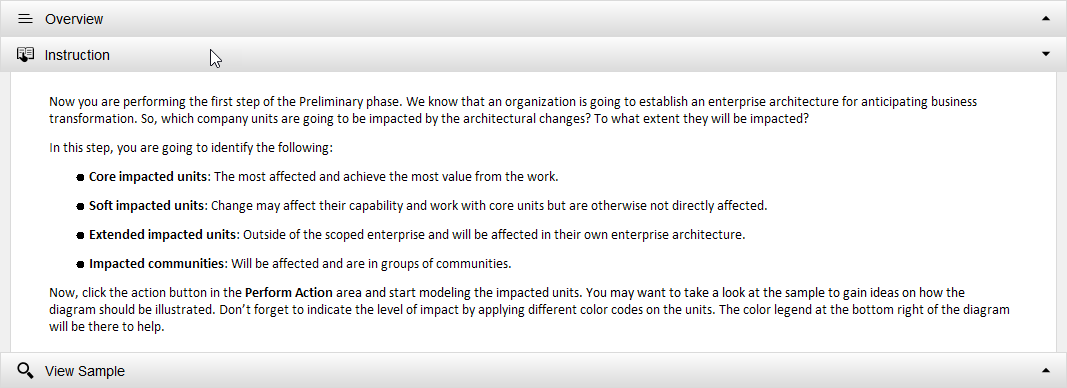

Read Instructions: Expand the Instruction pane for guidance

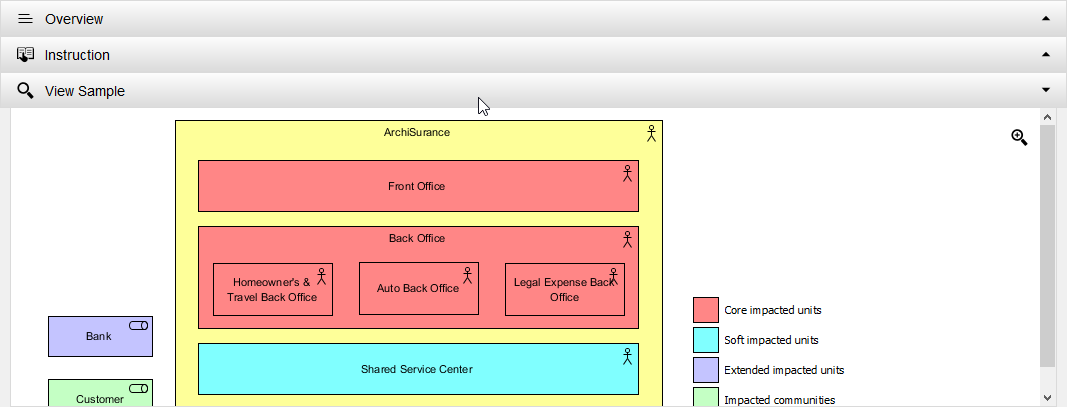

Review Samples: Expand View Sample to see example ArchiMate diagrams

Launch Action: Click Impacted Organization Units

💡 Tip: Use the Custom Artifacts button to add optional diagrams or text that will be included in final deliverables.

Draw the Diagram:

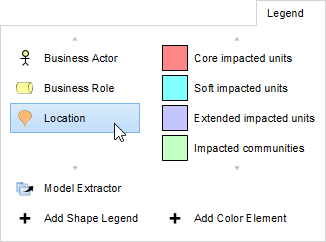

- Select Location from the legend (bottom-right)

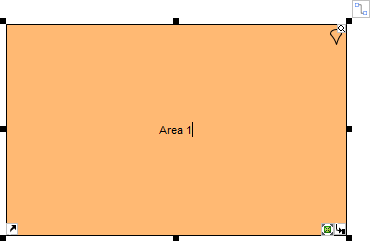

Draw and name your first location (e.g., Area 1)

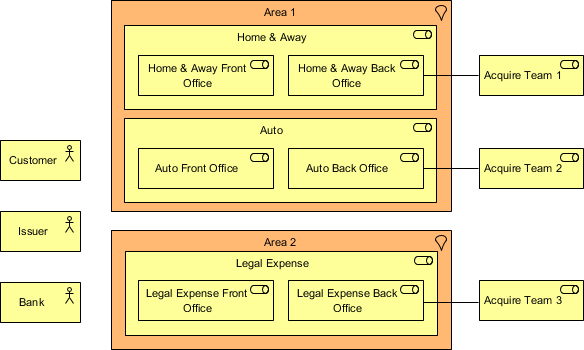

Continue building your organizational structure:

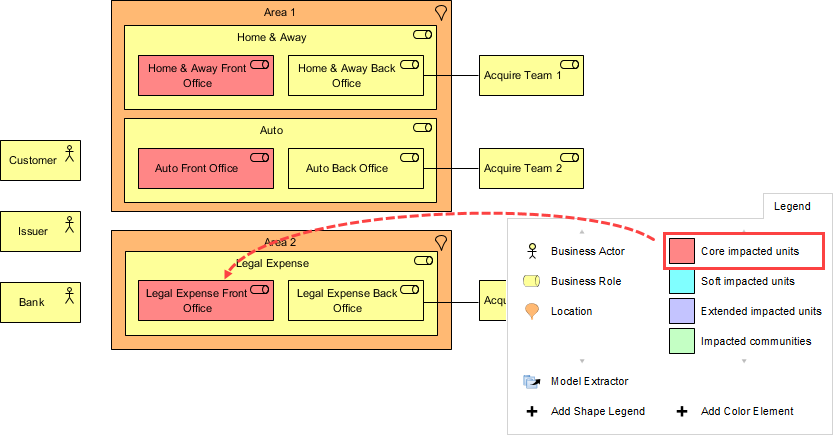

Apply Impact Color Coding:
- Click Core impacted units in legend
- Click on units with core impact to apply coloring

Complete the Diagram:

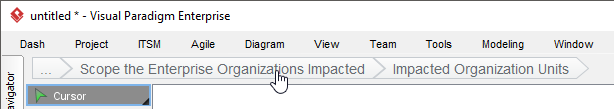

Return to Activity: Click the breadcrumb navigation

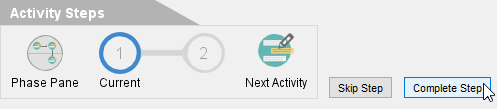

Complete the Step: Click Complete Step at bottom-right

Step 2: Describe Impacts in Detail

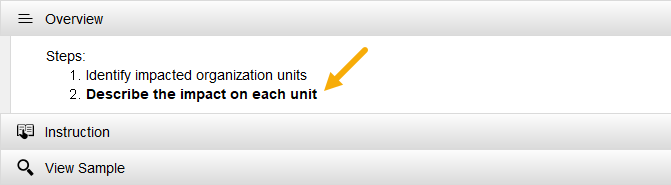

You’ll advance to Step 2 automatically:

Click Description of Impacts under Perform Action:

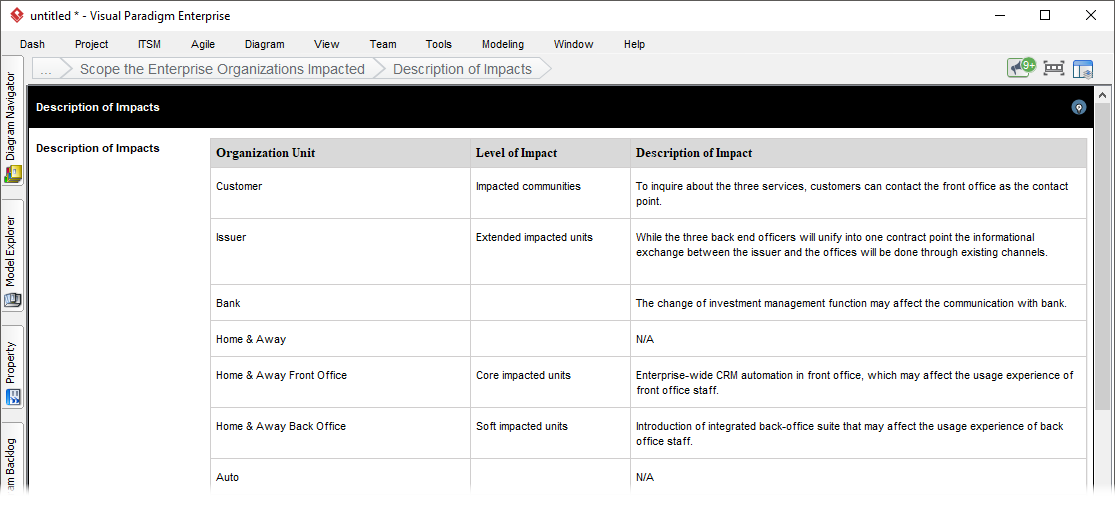

Complete the impact description form:

Sample Impact Table:

Organization Unit	Level of Impact	Description of Impact
Customer	Impacted communities	To inquire about the three services, customers can contact the front office as the contact point.
Issuer	Extended impacted units	While the three back end officers will unify into one contract point the informational exchange between the issuer and the offices will be done through existing channels.
Bank	—	The change in investment management function may affect communication with the bank.
Home & Away Front Office	Core impacted units	Enterprise-wide CRM automation in the front office, which may affect the user experience of the front office staff.
Auto Front Office	Core impacted units	ArchiSurance is going to provide a one-stop-shop solution for its customers by unifying the three front offices into one single point of contact for all three major types of products and services.
Legal Expense Back Office	Soft impacted units	Introduction of integrated back-office suite that may affect the user experience of back-office staff.

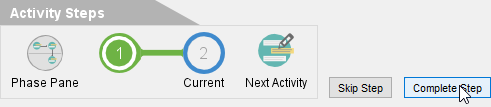

Return via breadcrumb and click Complete Step:

Navigating Between Activities

After completing steps, you have two options:

Next Activity: Proceed linearly through the workflow
Phase Pane: Return to the phase process map

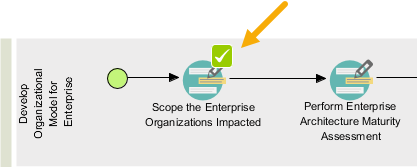

Completed activities display a checkmark ✓ for easy progress tracking:

Performing Maturity Assessment

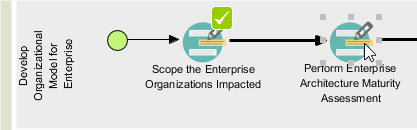

Open Perform Enterprise Architecture Maturity Assessment:

Click Architecture Maturity Assessment:

Create a radar chart for maturity analysis:
- Rename factors by double-clicking (e.g., Goal, Organization, Strategy)
- Add new factors via right-click → Add Variable

Complete subsequent steps for gap analysis and resolution planning.

Generating ADM Deliverables

Once all activities in a deliverable lane are complete, generate professional documentation automatically.

How to Generate:

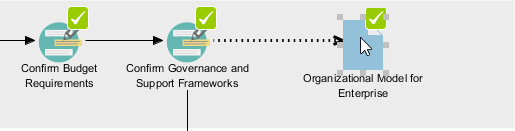

Locate the document shape on the right-hand side of the completed lane
Double-click the document shape

Provide a filename and confirm

Generated Deliverable Contents:

✅ All diagrams created during the phase
✅ Completed forms and data entries
✅ Pre-filled contextual content
✅ Professional formatting and structure

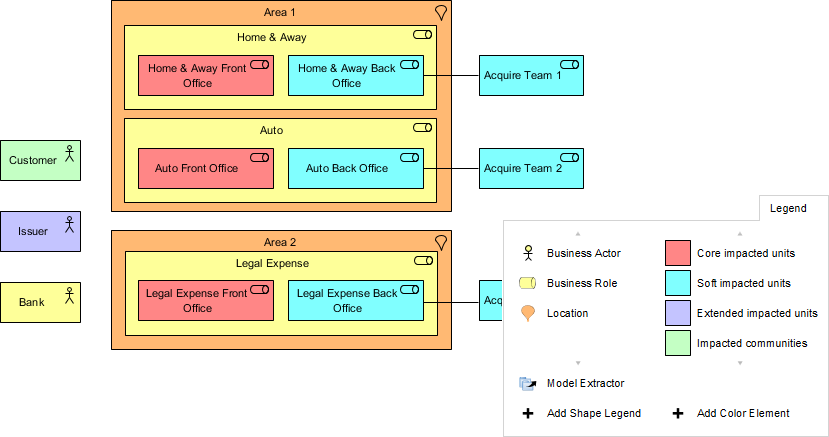

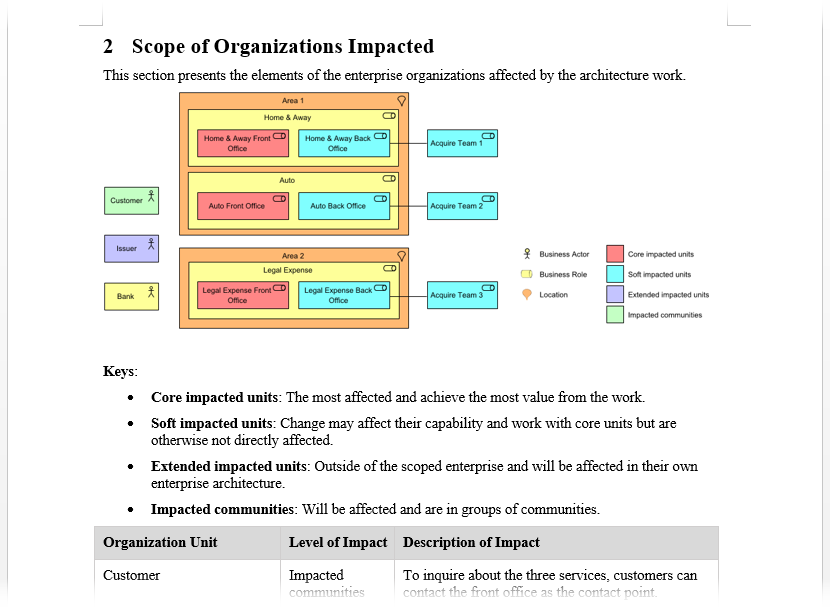

Sample Output – ArchiMate Diagram:

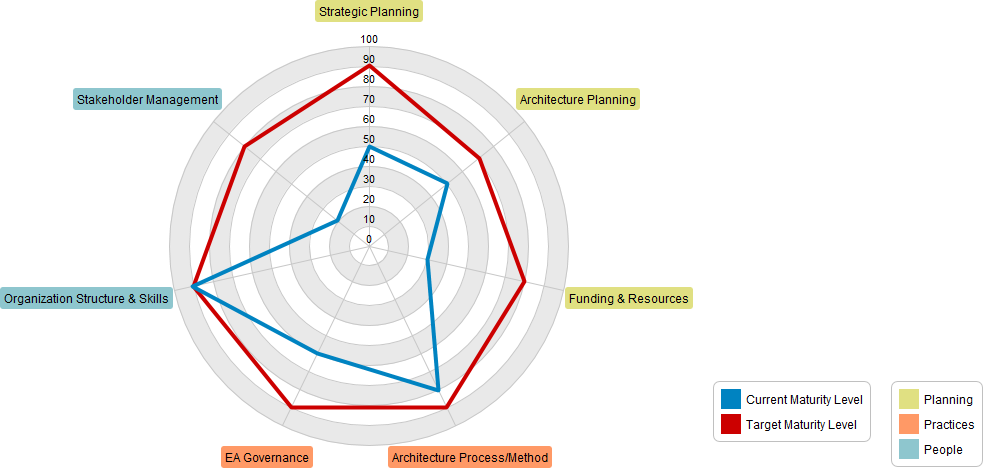

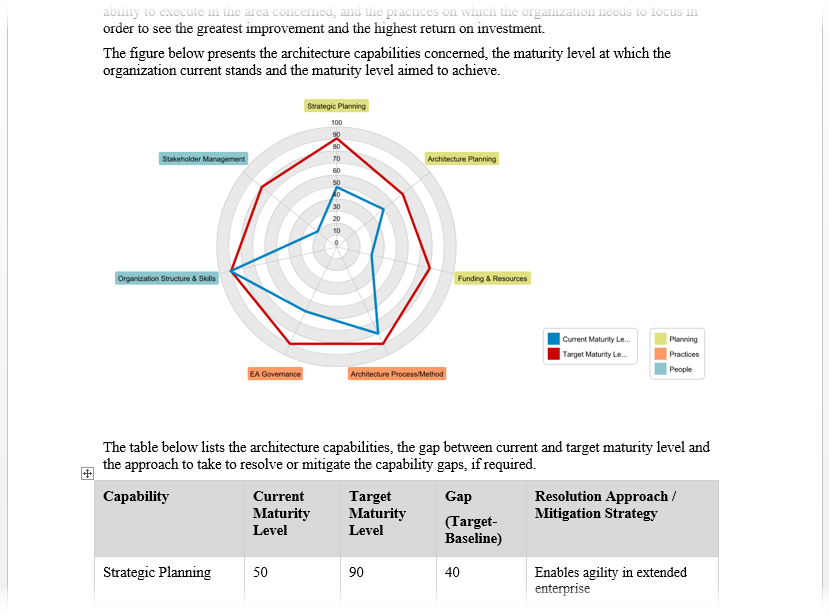

Sample Output – Maturity Radar Chart:

Using the Architecture Repository

The Architecture Repository serves as a centralized holding area for all architectural assets within your enterprise.

Key Capabilities:

🗂️ Automatic archiving of generated deliverables
📁 Organized storage by architecture domain
🔍 Easy retrieval of historical artifacts
📤 Drag-and-drop file management

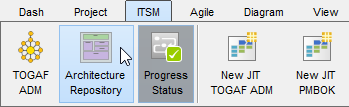

Accessing the Repository:

ITSM > Architecture Repository

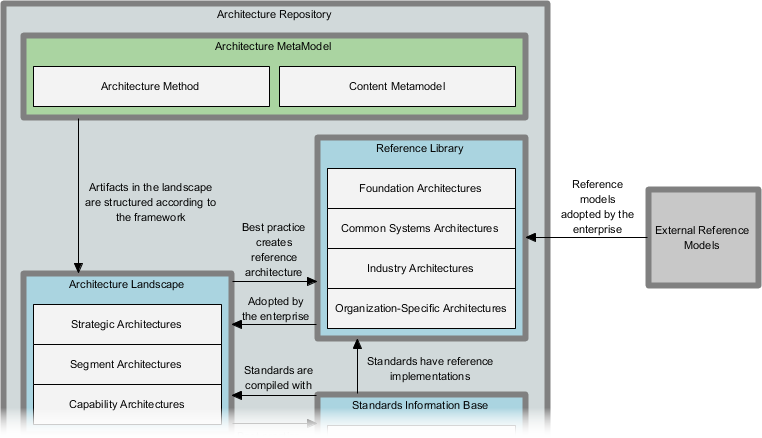

Repository Structure:

When ADM deliverable activities are complete, documents are automatically archived under Organization-Specific Architectures. Double-click to open drawers and retrieve deliverables.

Managing Custom Files:

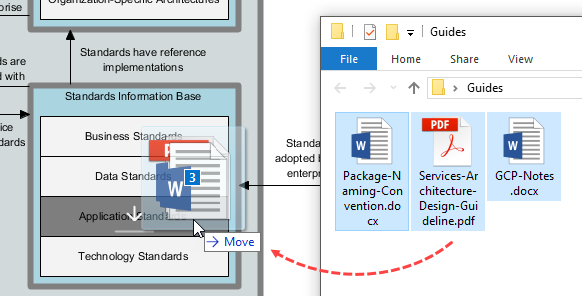

Simply drag files from your system and drop them into the target repository drawer:

Best Practices & Tips

🎯 For Successful TOGAF ADM Implementation:

Start Small: Begin with a pilot project to validate your approach
Engage Stakeholders Early: Secure commitment during Preliminary Phase and Phase A
Leverage Reusable Assets: Build a library of patterns, models, and templates
Maintain Traceability: Link requirements to architecture components throughout the cycle
Iterate Frequently: Use ADM’s iterative nature to incorporate feedback continuously
Document Decisions: Capture rationale for architectural choices in the repository
Govern Rigorously: Apply Phase G oversight consistently during implementation

💡 Visual Paradigm Pro Tips:

Use View Sample liberally when unfamiliar with diagram types
Customize deliverables with Custom Artifacts for organization-specific content
Archive working documents early to maintain repository integrity
Leverage breadcrumb navigation for efficient workflow management
Export deliverables in multiple formats for stakeholder distribution

🔄 Managing Iterations:

Remember that ADM is inherently iterative. You may:

Cycle between phases as new information emerges
Revisit earlier phases when scope changes
Run parallel ADM cycles for different architecture domains
Use Requirements Management as the continuous thread connecting all phases
