Mastering Object-Oriented Design with CRC Cards: A Beginner-Friendly Case Study

In this article, we’ll walk through a step-by-step introduction to CRC cards (Class–Responsibility–Collaborator) using a real-world, beginner-friendly example: a Library Book Borrowing System. Whether you’re just starting your journey into software design or leading a team workshop, CRC cards offer a simple, powerful, and collaborative way to model object-oriented systems.

🎯 What Are CRC Cards?

CRC cards are a lightweight, physical (or digital) modeling technique used in object-oriented design. Each card represents a class and contains three key elements:

Field	Description
Class	The name of the class (e.g., `Book`)
Responsibilities	What the class knows or does
Collaborators	Other classes this class needs to work with

They’re especially effective for brainstorming, designing, and validating class structures early in development — before writing a single line of code.

📚 Case Study: Library Book Borrowing System

Let’s imagine a small public library where members can:

Search for books by title
Borrow available books (up to a limit)
Return books when done

The system must track:

Which books are borrowed
By whom
When they are due

We’ll use the CRC card method to discover and refine the classes in this system — step by step.

✅ Step 1: Find Candidate Classes (Brainstorm Nouns)

Start by reading the scenario and pulling out nouns — these are potential classes.

From the description, we identify:

Library
Member (or Patron)
Book
Loan (or Borrowing)
DueDate (possibly too small)
LibraryCard (might be part of Member)

We filter and keep only the most meaningful ones:

✅ Member, Book, Loan

⚠️ Note: Don’t worry about getting all classes right at first — that’s the beauty of CRC cards. You’ll discover missing ones through role-play!

✏️ Step 2: Create Initial CRC Cards

Now, we assign responsibilities and collaborators to each class.

📘 Class: Book

Responsibilities	Collaborators
Know its title	—
Know its author	—
Know its ISBN	—
Know if it is currently available	Loan
Be borrowed	Loan
Be returned	Loan

💬 The Book doesn’t “know” who borrowed it — it only knows whether it has an active loan.

👤 Class: Member

Responsibilities	Collaborators
Know name	—
Know member ID	—
Know how many books are currently borrowed	Loan
Borrow a book (if allowed)	Book, Loan
Return a book	Book, Loan
Check if borrowing limit is reached	Loan

💬 The Member manages its own borrowing behavior and checks limits via the Loan class.

📅 Class: Loan

Responsibilities	Collaborators
Record which book was borrowed	Book
Record which member borrowed it	Member
Record borrow date	—
Calculate due date	—
Know if it is overdue	—
Mark as returned	Book

💬 The Loan class holds the relationship between a Member and a Book, including timing details.

🎭 Step 3: Role-Play a Scenario — “Borrow a Book”

Now comes the fun part: role-playing the scenario as if the cards were real objects.

📖 Scenario: Curtis wants to borrow “Clean Code”, which is available.

Let’s walk through it step by step:

Member (Curtis) says: “I want to borrow ‘Clean Code’.”
→ First checks: “Do I have fewer than 3 books already?”
→ Asks Loan: “How many active loans do I have?”
Loan responds: “You have 1 active loan → you can borrow.”
Member searches for the book: “Where is ‘Clean Code’?”
→ Asks Book: “Are you available?”
Book checks: “Do I have an active (not returned) Loan?”
→ Asks Loan: “Is there an active loan for me?”
Loan replies: “No — you’re available!”
Member creates a new Loan object:
- Links to this Book and Member
- Sets borrow date = today
- Calculates due date = today + 14 days
Book is updated: “Now I have an active loan → I’m no longer available.”

✅ Result: The borrowing process feels natural, distributed, and logical.

🔄 Step 4: Another Scenario — “Return a Book”

📖 Scenario: Curtis returns “Clean Code”

Member (Curtis) says: “I want to return ‘Clean Code’.”
Member finds the matching Loan (likely by querying Loan with the book and member).
Loan marks itself as returned.
Loan tells Book: “You are now available again.”

✅ Clean, clear, and cohesive — no class is doing work outside its responsibility.

🔍 Step 5: Refine & Add Missing Classes

After role-playing, we notice a gap:

❓ Who finds the book by title?

Currently, Member is asking Book directly — but Book doesn’t know how to search!
We need a central coordinator.

➕ New Class: Library

Responsibilities	Collaborators
Add a new book to the collection	Book
Find book by title	Book
Register a new member	Member
Process book borrowing request	Member, Book, Loan
Process book return	Member, Book, Loan
Know all current loans	Loan

💬 The Library acts as the central hub — it knows all books, all members, and all loans.

✨ Updated Flow: “Borrow a Book” with Library

Member → Library: “Find book titled ‘Clean Code’.”
Library searches its collection and returns the Book (or null if not found).
Member now knows the book exists → asks Library: “Can I borrow this book?”
Library checks:
- Is the book available? (via Book.isAvailable())
- Is the member under the borrowing limit? (via Loan.countActiveLoans(member))
If yes → Library creates a new Loan and updates both Book and Loan.
Book becomes unavailable; Loan tracks the relationship.

✅ Now the flow makes sense — the Library handles discovery and coordination.

🧩 Final CRC Cards Summary (Simplified for Beginners)

Class	Key Responsibilities	Key Collaborators
Library	Manages books, members, loans; handles borrowing/returning	Book, Member, Loan
Member	Knows personal info; initiates borrow/return	Library, Loan
Book	Stores metadata; tracks availability	Library, Loan
Loan	Tracks borrowing history; calculates due dates; manages return status	Member, Book, Library

✅ Design Principle: Each class has one clear purpose, and responsibilities are cohesive and well-distributed.

🌟 Why CRC Cards Work So Well (Beginner Takeaways)

Benefit	Explanation
Responsibility-Driven Design	Forces you to think: “What does this class know or do?” instead of just storing data.
Natural Discovery of Missing Classes	Role-playing reveals gaps (like the missing `Library`) — no guesswork needed.
Immediate Feedback via Role-Play	If a flow feels awkward, you know the responsibility is in the wrong place.
Low-Ceremony & Collaborative	No complex tools — just index cards, sticky notes, or a whiteboard. Great for teams.
Bridges Requirements to Code	Turns user stories into real class interactions.

🛠️ Quick Tips for Your First CRC Session

Use physical cards (3×5 index cards or sticky notes) — it’s more engaging.
One class per card — keep it simple.
Write large and legible — others should read it easily.
Role-play out loud — pass cards around like real objects.
Start with 3–6 core scenarios (e.g., borrow, return, search).
Don’t aim for perfection — the goal is iteration, not a final design. Refine as you go.
Use simple, domain-specific names — avoid technical jargon. Use “Member” instead of “Patron” if your team agrees.
Invite everyone to participate — even non-programmers can help spot missing responsibilities.
Sketch a simple class diagram afterward — to visualize relationships and confirm consistency.
Keep it fun — treat it like a game. The more engaged your team, the better the results.

🔄 Try It Yourself: Next Domains to Explore

Once you’ve mastered the library system, try applying CRC cards to other beginner-friendly domains:

☕ Coffee Shop Order System

Classes: Customer, Order, MenuItem, Barista, CashRegister
Scenarios: Place order → Add drink → Apply discount → Pay → Print receipt

🪙 Vending Machine

Classes: VendingMachine, Product, Coin, Dispenser, ChangeCalculator
Scenarios: Insert coin → Select item → Dispense product → Return change

🎮 Quiz Game

Classes: Quiz, Question, Player, ScoreTracker, GameSession
Scenarios: Start quiz → Answer question → Check correctness → Show final score

🚗 Parking Garage

Classes: Garage, Car, ParkingSpot, Ticket, Gate
Scenarios: Enter garage → Park car → Exit → Pay fee → Get ticket

Each of these systems builds on the same principles:

Identify nouns → assign responsibilities → role-play → refine → repeat.

📌 Final Thoughts: CRC Cards Are More Than a Technique — They’re a Mindset

The real power of CRC cards isn’t in the cards themselves — it’s in the conversation they spark.

When you write a card and say, “Who does this?” or “Who does it need to talk to?”, you’re already thinking like an object-oriented designer.

🔥 Pro Tip: Use CRC cards during sprint planning, tech spikes, or even in interviews to demonstrate your design thinking.

They’re not just for developers — they’re for anyone involved in building software: product managers, designers, testers, and students.

📎 Want More?

👉 Download a printable CRC card template (PDF or digital) to use in your next workshop.
👉 Try a live CRC session with a teammate — assign roles: “You’re the Member,” “You’re the Book,” etc.
👉 Share your results — post your cards on social media with #CRCcards or #OODesignJourney.

🏁 Conclusion

The Library Book Borrowing System is one of the most classic and effective CRC card examples — not because it’s complex, but because it’s simple, relatable, and revealing.

By following just five steps — brainstorming, card creation, role-playing, refining, and iterating — you can:

Discover classes naturally
Assign responsibilities clearly
Spot design flaws early
Build a shared mental model as a team

And best of all? You don’t need to be a senior developer to do it.
You just need curiosity, a few cards, and a willingness to play.

🚀 How Visual Paradigm’s AI-Powered CRC Tool Streamlines the Design Process

Creating effective CRC (Class–Responsibility–Collaborator) cards is a cornerstone of object-oriented design — but it’s often time-consuming, especially during early brainstorming or team workshops. That’s where Visual Paradigm’s AI-powered CRC card generator transforms the experience from tedious to transformative.

Instead of starting from scratch — listing classes, guessing responsibilities, and mapping collaborators — Visual Paradigm’s AI does the heavy lifting intelligently, giving you a smart, structured foundation to build upon. Here’s how it supercharges every step of the CRC design process:

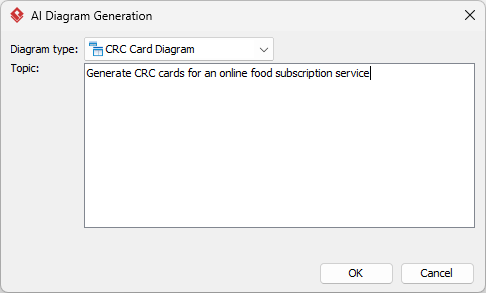

✅ 1. Instant Brainstorming with Natural Language Input

No more blank cards or endless debate about “what should the class be?”
Just describe your system in plain English — like:

“I’m building a library system where members can borrow books, return them, and search by title. Each book has a title, author, and ISBN. There’s a borrowing limit of 3 books.”

Visual Paradigm’s AI instantly analyzes your input and suggests:

Candidate classes: Member, Book, Loan, Library
Responsibilities: e.g., “Check if book is available”, “Calculate due date”
Collaborators: e.g., Book collaborates with Loan, Member talks to Library

👉 Result: Within seconds, you have a fully populated initial CRC card diagram — no guesswork, no wasted time.

✅ 2. Smart Suggestions That Match Real-World Design Principles

Unlike generic AI tools that spit out random class names, Visual Paradigm’s AI understands object-oriented design patterns and responsibility-driven thinking.

For example, when you mention “borrowing,” the AI:

Suggests a Loan class (not just a Borrowing or Transaction)
Assigns meaningful responsibilities like “Record borrow date”, “Mark as returned”
Proposes correct collaborators: Book, Member, and Library

This isn’t just automation — it’s AI-guided design wisdom that helps beginners learn best practices while experts save time.

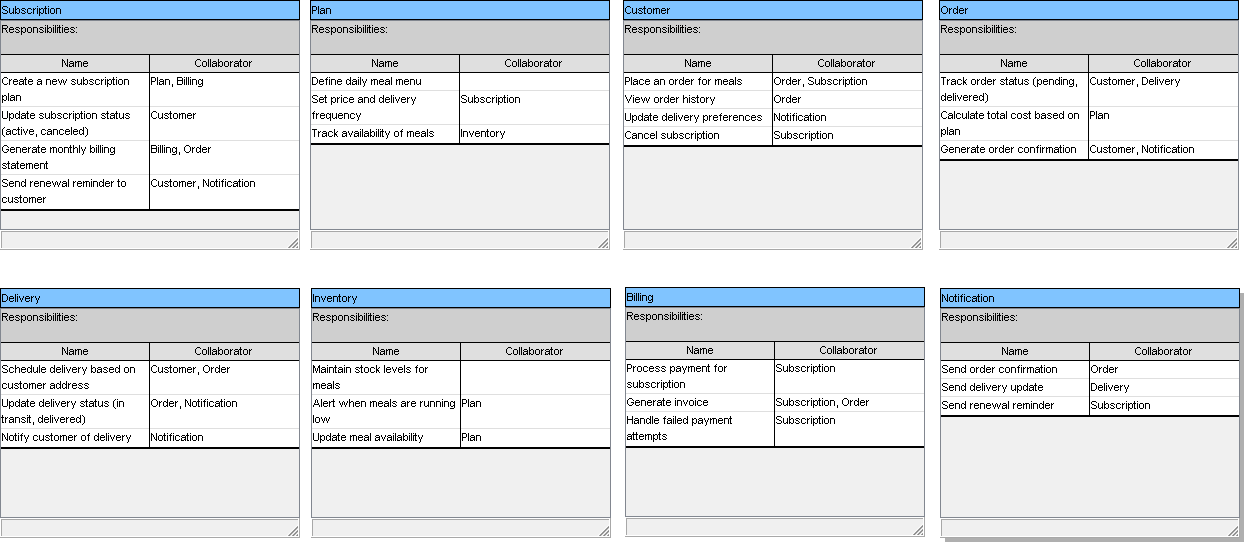

✅ 3. Seamless Transition from Sketch to Professional Model

The AI doesn’t just generate a rough sketch. It creates a fully editable, native Visual Paradigm diagram — meaning you can:

Drag and drop cards to reorganize the layout
Edit responsibilities and collaborators in real time
Add icons, colors, or notes for clarity
Link cards to use cases, requirements, or code

💡 Pro Tip: Use the “Refine with AI” feature to ask:

“Suggest better responsibilities for the Member class based on borrowing rules.”
The AI will re-suggest more accurate or complete actions — like “Check if borrowing limit is reached” — helping you avoid common design flaws.

✅ 4. Role-Play Simulation Built-In (Yes, Really!)

One of the most powerful features? Visual Paradigm allows you to simulate scenarios directly in the diagram.

After generating the CRC cards, you can:

Click on a scenario (e.g., “Borrow a book”)
Use the AI to walk through the flow step-by-step
See which classes interact, in what order, and what responsibilities are triggered

This turns abstract cards into living design stories, making it easy to spot:

Misplaced responsibilities
Missing classes (like Library)
Broken collaboration chains

🔍 Example: The AI flags: “The Member class is trying to find a book — but no class handles search. Suggest adding a Library class.”
→ Instant insight. No guesswork.

✅ 5. Traceability & Integration with Full Development Workflows

The real power of Visual Paradigm’s AI CRC tool isn’t just in creating diagrams — it’s in connecting them to real development.

Once your CRC diagram is refined:

Generate UML Class Diagrams with one click
Export code skeletons (Java, C#, Python, etc.)
Link to requirements or user stories in your project
Share with team members via real-time collaboration

This means your CRC cards aren’t just a brainstorming artifact — they’re the starting point of your actual software design.

✅ 6. Perfect for Teams, Workshops, and Learning

Whether you’re:

A student learning OOP for the first time
A team lead running a design sprint
A developer prototyping a new feature

Visual Paradigm’s AI CRC tool adapts to your needs:

Use it in VP Desktop for deep editing and integration
Try it in VP Online for quick collaboration
Use the AI chat interface to ask questions like:

“What should the Loan class know?”
“Who should handle book availability checks?”

It’s like having a senior designer in your pocket — always ready to help you think clearly, organize responsibilities, and avoid design anti-patterns.

🎯 Summary: Why Visual Paradigm’s AI CRC Tool Is a Game-Changer

Feature	Benefit
Natural language input	Start with a story — get a design
Smart, context-aware suggestions	Avoid common design mistakes
Fully editable native diagram	Refine, organize, and polish
Scenario simulation & role-play	Test logic before coding
Traceability to code & requirements	Design → Implementation in one flow
Team collaboration & sharing	Work together in real time

📌 Final Thought

“Good design isn’t about speed — it’s about clarity. And Visual Paradigm’s AI CRC tool gives you both.”

Instead of spending hours debating “who should do what,” you spend time thinking, refining, and validating your design — with confidence.

With Visual Paradigm, you’re not just using AI to draw diagrams.
You’re using AI to think better.

👉 Ready to experience the future of CRC design?
Start your free trial of Visual Paradigm today and turn your next idea into a smart, professional, AI-assisted CRC card diagram — in minutes.

🌟 No more blank cards. No more guesswork. Just clear, powerful design — powered by AI.

✅ Now it’s your turn: Grab some sticky notes, pick a simple system (like a coffee shop or vending machine), and try the CRC method.

📌 Remember: Good design isn’t about writing perfect code — it’s about asking the right questions.

And with CRC cards, you’re already asking them.

📌 Bonus: Printable CRC Card Template (Text Version)

┌────────────────────┐
│    [CLASS NAME]    │
├────────────────────┤
│ Responsibilities:  │
│ -                  │
│ -                  │
│ -                  │
├────────────────────┤
│ Collaborators:     │
│ -                  │
│ -                  │
└────────────────────┘

Print this on 3×5 cards or use it in a digital tool like Miro, Figma, or Google Slides.

📚 Next Step?
Want a full walkthrough of the Coffee Shop Order System using the same CRC style?
👉 Just say the word — I’ll send you the next case study, step by step, with cards, scenarios, and role-play!

Happy designing! 🎮🧩💻

How to Draw CRC Cards in Visual Paradigm: This step-by-step guide provides instructions on creating CRC cards using the software’s dedicated diagramming tools.
Understanding CRC Card Diagrams in Visual Paradigm: An overview that explains how these diagrams are used to model object-oriented systems and their interactions.
How to Create a CRC Card Diagram in Visual Paradigm: A detailed tutorial found on the Community Circle covering the creation and customization of CRC diagrams.
Introduction to CRC Diagrams in Visual Paradigm: A comprehensive guide focused on utilizing CRC diagrams for object-oriented design and broader system modeling.
Generating CRC Cards from Class Diagrams: This community discussion explores methods for leveraging existing class diagrams to automatically generate cards through reverse engineering.
Synchronizing CRC Cards with Class Diagrams: A technical resource discussing bidirectional modeling to ensure design consistency between cards and class models.
Introduction to CRC Card Diagrams (PDF Guide): A downloadable technical resource that explains the core concepts and applications of CRC cards in system analysis.
Establishing Links Between CRC Cards and Class Diagrams: This article highlights techniques for maintaining traceability and linkage between different modeling levels.
CRC Card Template in Visual Paradigm Gallery: A resource featuring a downloadable template designed to support early-stage object-oriented design.
Moving CRC Cards Between Diagrams: A guide detailing how to transfer cards across different diagrams while maintaining data consistency.
