Introduction to BPMN: Data and Artifacts: A Comprehensive Guide

Business Process Model and Notation (BPMN) provides powerful mechanisms for modeling not just process flow, but also the data and contextual information that drive business processes. This guide explores BPMN’s data modeling capabilities and artifact notations.

Introduction

One of the common characteristics of traditional modeling techniques is to allow the modeling of data to be created, read, and updated during the execution of a process. A classical example would be Data Flow Diagram (DFD). Although BPMN is not primarily designed for data modeling, there is still a set of notations that lets you model the data involved in a business process.

BPMN also provides several artifact notations that allow modelers to describe a business process in more detail. For example, group objects can be used to group related activities, and text annotation objects can be used to explain flow objects in more detail.

BPMN Data example

Figure 1: Example of BPMN data objects integrated within a process flow

BPMN Data Elements

Overview of Data Modeling in BPMN

Very often, when a business process is executed, data may be produced either during or after the process. For example, a successful execution of the “Place Order” task will produce data such as a purchase order, invoice, receipt, etc. In BPMN, data can be modeled using several types of “data” objects:

Element	Symbol	Description	Usage
Data Object	📄	Represents information relevant to the process	Shows data created, updated, or consumed by activities
Data Input	📥	Data required before an activity can start	Specifies prerequisites for task execution
Data Output	📤	Data produced after an activity completes	Indicates deliverables or results
Data Store	🗄️	Persistent storage for data	Represents databases, files, or repositories

Visual Representation

Data objects appear as documents with a folded corner. Associations (dotted lines) connect data objects to activities, showing whether data is read from or written to the object:

Input Association (arrow pointing to activity): Data is read/consumed
Output Association (arrow pointing from activity): Data is created/updated
Bidirectional Association: Data is both read and updated

Data Object States and Lifecycle Management

Understanding Data States

A purchase order has a life cycle within the process, from creation to completion. BPMN allows modelers to define states for data objects to track their progression through the process.

Common states include:

Create: Initial instantiation of the data object
To be Assigned: Waiting for resource allocation
To be Delivered: Ready for fulfillment
Completed: Final state after successful processing

Managing State Transitions

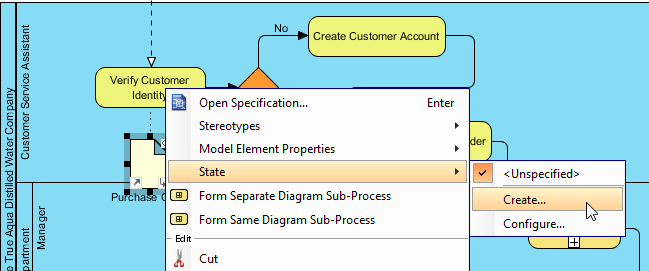

Create data object state

Figure 2: Creating a state for a data object

To model state changes:

Right-click on the data object
Select State > Create… from the popup menu
Enter the state name (e.g., “Create”, “To be Assigned”)
The state tag appears alongside the data object name

Reusing Data Objects Across States

When the same logical data object appears at multiple points in a process with different states:

Reference to existing model element

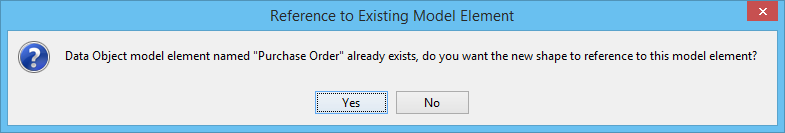

Figure 3: Referencing an existing data object

Key Steps:

Create a new data object with the exact same name as the existing one
When prompted, choose Yes to reference the existing model element
Assign a new state to reflect the data’s progression
The same logical object now appears with different states at different process points

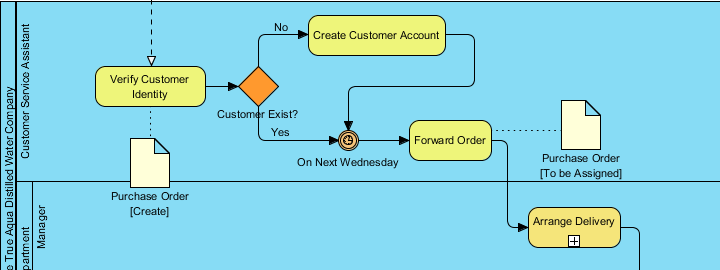

Data objects created

Figure 4: Same Purchase Order data object shown with multiple states

Artifact Notations

Artifacts provide additional contextual information without affecting process flow execution.

Groups

A group is a box with a dotted line border that provides modelers with a mechanism to group shapes by different categories.

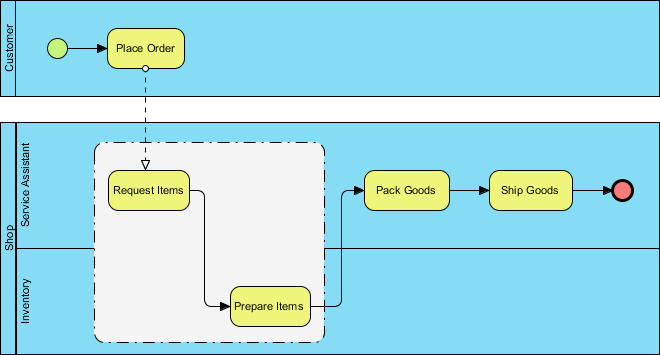

BPMN group example

Figure 5: Using groups to categorize related activities

Use Cases for Groups:

Organize activities by department or role
Highlight processes subject to specific regulations
Visually separate optional or parallel process branches
Improve diagram readability for stakeholders

Implementation:

Draw a group container around related elements
Label the group with a descriptive category name
Groups do not affect sequence flow or execution logic

Text Annotations

A text annotation can be used to add extra detail to flow objects in a BPD. It does not affect the flow, but it provides details about objects within a flow.

BPMN Text Annotation example

Figure 6: Text annotation providing contextual details

Best Practices for Annotations:

Keep text concise and focused on clarification
Use annotations for business rules, exceptions, or statistics
Connect annotations to specific elements using association lines
Avoid duplicating information already captured in element names

Case Study: True Aqua Distilled Water Company

Continuing from Parts I-III, we enhance the distilled water ordering process with data objects and annotations.

Step 1: Modeling Purchase Order Creation

The execution of the distilled water ordering process results in the production of a purchase order. We model this by creating a data object from the Verify Customer Identity task.

Using Resource Catalog

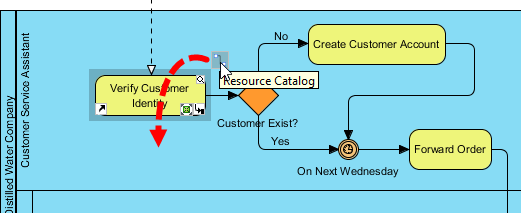

Figure 7: Accessing the Resource Catalog to add elements

To create data object

Figure 8: Selecting Data Object from the catalog

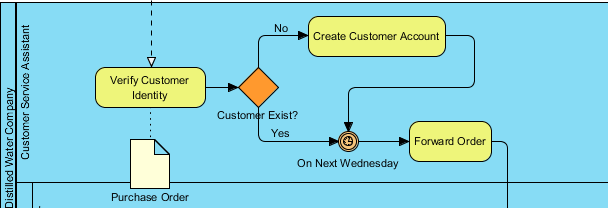

Data object created

Figure 9: Named “Purchase Order” data object attached to task

Step 2: Tracking State Progression

When the customer service assistant finishes the Forward Order task, the purchase order enters a new state.

Using Resource Catalog

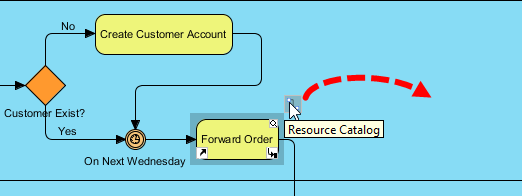

Figure 10: Creating another reference to the same data object

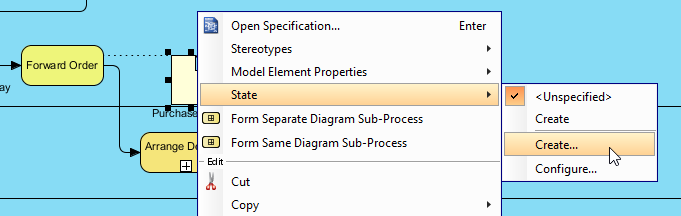

Create state

Figure 11: Adding the “To be Assigned” state

Step 3: Completing the Lifecycle

Continue modeling state changes through delivery:

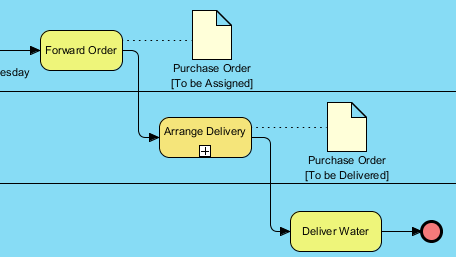

Data object created

Figure 12: Purchase Order with “To be Delivered” state

Updated business process diagram

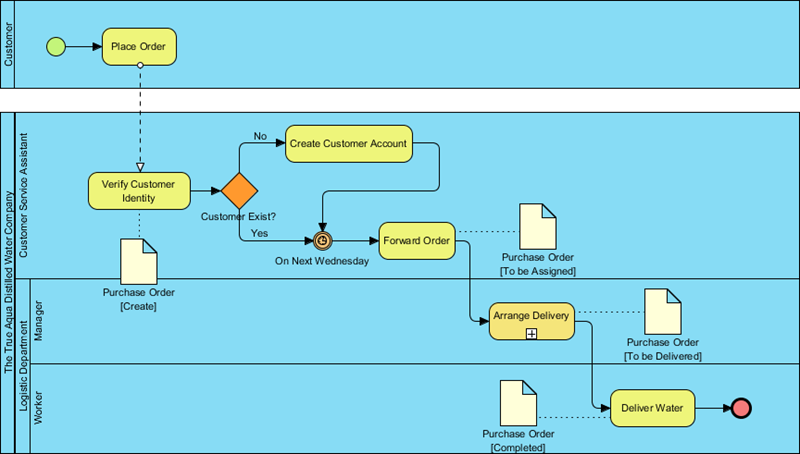

Figure 13: Full lifecycle with “Completed” state

Step 4: Adding Contextual Annotations

Some order requests are made by phone call, others by email. We document this using a text annotation.

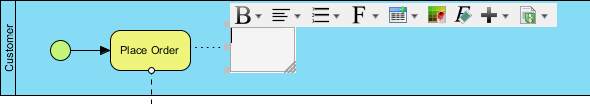

Creating text annotation

Figure 14: Attaching annotation to Place Order task

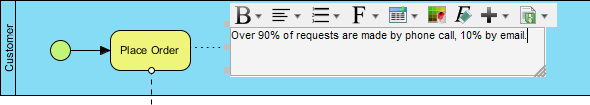

Entering annotation text

Figure 15: Entering statistical detail in annotation

Final Diagram

Completed business process diagram

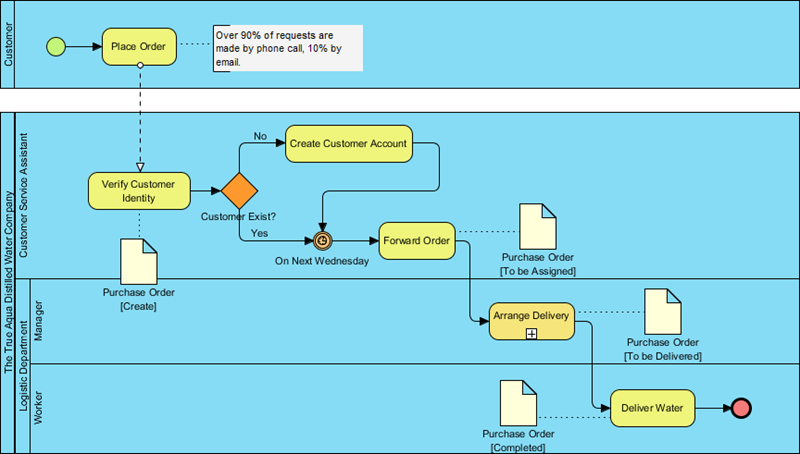

Figure 16: Complete BPMN diagram with data objects, states, and annotations

Key Concepts Summary

Core Principles

✅ Data Objects Represent Information Flow: They show what data is created, consumed, or stored during process execution.

✅ States Track Data Lifecycle: Assigning states to data objects helps visualize progression and business rules.

✅ Reference, Don’t Duplicate: Use the same-named data objects with different states to represent one logical entity evolving through the process.

✅ Artifacts Enhance Clarity: Groups and annotations provide context without altering executable logic.

✅ Associations Show Relationships: Dotted lines connect data to activities, indicating read/write operations.

BPMN Data Element Quick Reference

Data Object          : 📄 Information created/used in process
Data Input           : 📥 Prerequisite data for activity start
Data Output          : 📤 Resulting data after activity completion
Data Store           : 🗄️ Persistent repository (database, file)
Association          : ⤏ Dotted line showing data-activity relationship
Group                : ▦ Dotted container for visual organization
Text Annotation      : 📝 Explanatory note attached to elements

Best Practices

For Data Modeling

Name data objects clearly: Use business terminology (e.g., “Purchase Order” not “Data1”)
Limit states to meaningful transitions: Avoid over-complicating with trivial state changes
Show only relevant data: Include data objects that impact process decisions or outputs
Use data stores for persistence: Distinguish transient data objects from stored records

For Artifacts

Use groups strategically: Group by organizational unit, regulation, or process phase
Keep annotations concise: Focus on exceptions, statistics, or clarifications
Position artifacts for readability: Avoid cluttering sequence flows
Document business rules externally: Use annotations to reference, not replace, detailed rule specifications

For Diagram Maintenance

Consistent naming conventions: Ensure data object names match across states
Version control annotations: Update text annotations when business rules change
Validate associations: Confirm arrows correctly indicate data flow direction
Review with stakeholders: Ensure data modeling reflects actual business operations

References

BPMN Official Specification: The official resource for Business Process Model and Notation standards, maintained by the Object Management Group (OMG), providing authoritative documentation on BPMN syntax, semantics, and modeling guidelines.

Introduction to BPMN Part IV – Data and Artifacts (PDF): Downloadable PDF version of this tutorial covering BPMN data objects, states, groups, and text annotations with step-by-step case study instructions.
Visual Paradigm Enterprise Edition: Comprehensive BPMN modeling solution with advanced collaboration, simulation, and code generation features for large-scale enterprise process management.
Visual Paradigm Professional Edition: Full-featured BPMN tool supporting data modeling, artifacts, and integration with development workflows for professional business analysts.
Visual Paradigm Standard Edition: Core BPMN modeling capabilities including data objects, groups, and annotations for small to medium business process documentation.
Visual Paradigm Modeler Edition: Lightweight BPMN editor focused on diagram creation and basic data modeling for individual practitioners and small teams.
Part I – Introduction to BPMN: Foundational tutorial covering BPMN basics, core flow objects, and simple process modeling concepts for beginners.
Part II – Swimlanes: Intermediate guide to modeling organizational responsibilities using pools, lanes, and role-based process partitioning in BPMN.
Part III – Flow and Connecting Objects: Detailed exploration of sequence flows, message flows, gateways, and events for constructing complex process logic in BPMN diagrams.

This guide synthesizes BPMN 2.0 specification concepts with practical modeling techniques. For executable process automation, complement BPMN diagrams with detailed business rules and system integration specifications.
