📘 Comprehensive Guide to Agile Story Mapping in Visual Paradigm

Benefit	Explanation
Visualizes the Big Picture	See how features fit into the user’s real-world workflow.
Improves Prioritization	Focus on delivering value early with MVPs and iterative releases.
Reveals Gaps & Omissions	Missing steps? Incomplete flows? Easily spotted.
Enhances Collaboration	Great for backlog grooming, sprint planning, and stakeholder alignment.
Supports Release Planning	Slice across the map to define what goes into each release.

💡 It turns abstract backlogs into a living, breathing product roadmap.

---

🔹 How Visual Paradigm Implements Story Mapping

Visual Paradigm’s User Story Map is designed for agility, flexibility, and collaboration.

📌 Available Structures

Structure	Use Case	Recommended For
3-Level Structure Activities → Tasks → Stories	Small to medium projects	✅ Default & beginner-friendly
4-Level Structure Activities → Tasks → Epics → Stories	Medium to large/complex systems	🛠️ For detailed, enterprise-grade apps

⚠️ Note: Switching from 4-level to 3-level is irreversible if the map already contains content.

---

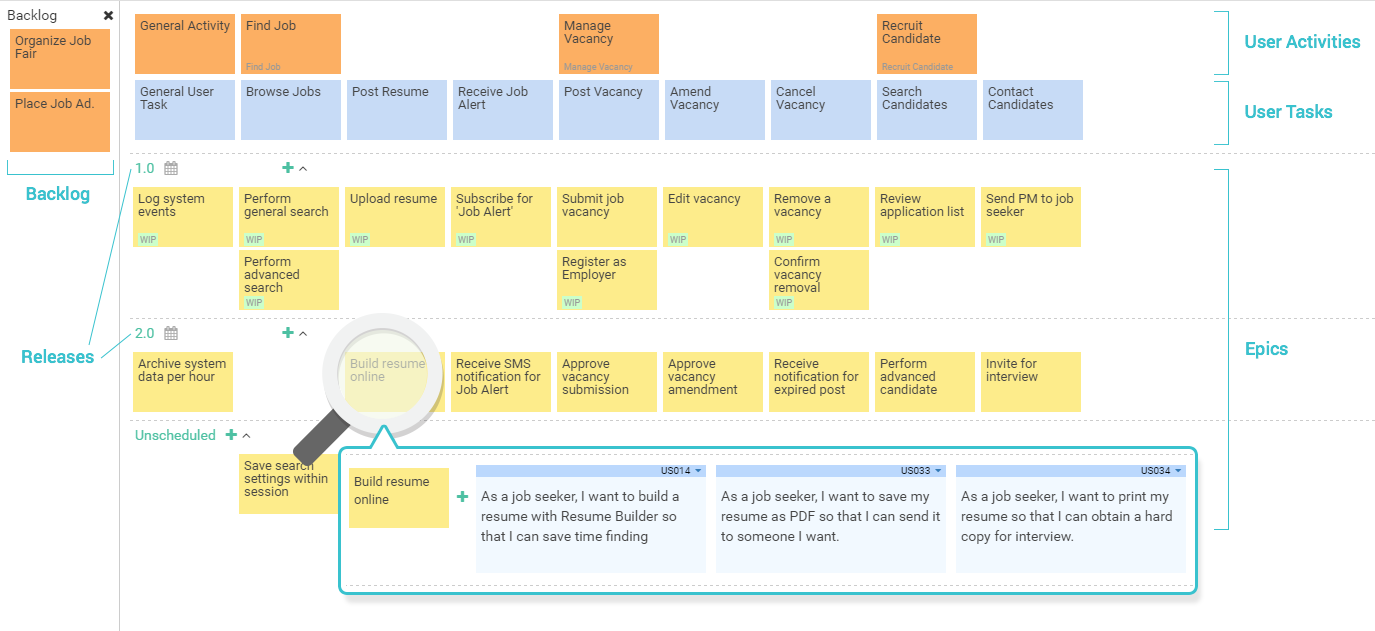

🔹 Core Elements of a Story Map

Element	Description	Example
User Activity (Spine)	High-level goal or major step in the user journey.	“Browse Products”, “Checkout”, “Track Order”
User Task	A concrete action to achieve an activity.	“Search for products”, “Add item to cart”
Epic (Optional 4th Level)	A large body of work that groups related stories.	“Implement Search Functionality”
User Story	Small, testable, INVEST-compliant story.	As a customer, I want to filter products by price so I can find affordable items.

✅ Best Practice: Use the 3C’s for writing effective user stories:

• Card: The story written on a card (title + description).

• Conversation: Discuss details with the team.

• Confirmation: Define acceptance criteria (tests).

---

🔹 Step-by-Step Guide: Creating a Story Map in Visual Paradigm

✅ Prerequisites: Visual Paradigm Desktop or VP Online (https://online.visual-paradigm.com)

---

✅ Step 1: Start a New Project

• Open Visual Paradigm (desktop or online).

• Create a new Agile Project or open an existing one.

---

✅ Step 2: Create a User Story Map

1. Go to Diagram > New.

2. Select User Story Map under the Agile or UeXceler category.

3. Click Create.

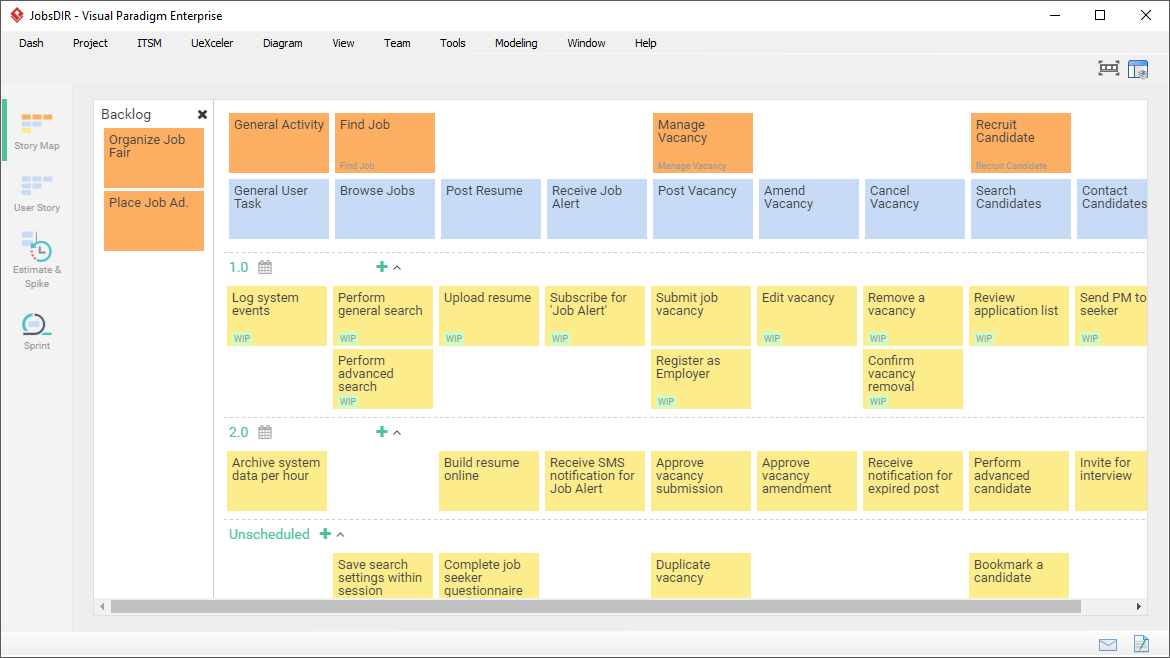

📌 The map appears with a default 3-level structure (Activities → Tasks → Stories).

---

✅ Step 3: Configure the Structure (Optional)

• Right-click the map → Configure Structure.

• Choose between:

  • 3-Level: Activities → Tasks → Stories

  • 4-Level: Activities → Tasks → Epics → Stories

• Click Apply.

🔄 You can change this anytime, but switching from 4-level to 3-level will merge Epics into Tasks.

---

✅ Step 4: Build the Backbone (User Journey)

• Drag and drop User Activities from the palette onto the top row.

• Arrange them left to right in the natural order of the user journey.

🔤 Example (E-commerce App):

1. Browse Products

2. Add to Cart

3. Checkout

4. Track Order

5. Leave Review

✅ Tip: Use drag-and-drop to reorder activities. The map auto-adjusts layout.

---

✅ Step 5: Break Down Activities into Tasks

• Click the “+” icon under each activity to add User Tasks.

• Add tasks that represent the steps the user takes to complete the activity.

Example: Under “Browse Products”

• Search for products

• Filter by category

• Sort by price

• View product details

🎯 Tip: Keep tasks actionable and atomic.

---

✅ Step 6: (Optional) Add Epics (4-Level Only)

• If using 4-level structure, expand each Task and add Epics.

• Use Epics to group large features.

Example: Under “Search for products”

• Epic: Implement Search with Filters

• Epic: Enable Autocomplete Suggestions

---

✅ Step 7: Add User Stories (Bottom Layer)

• Under each Epic or Task, add User Stories.

• Use the standard format:

As a [user], I want [feature] so that [benefit].

✅ Example:

• As a shopper, I want to filter products by price range so I can find affordable items.

• As a shopper, I want to sort products by rating so I can see popular choices.

📝 Pro Tip: Use inline editing (double-click) to quickly update story text.

---

✅ Step 8: Prioritize with Drag-and-Drop

• Left-to-right = Time/Importance
  (Most important steps on the left)

• Top-to-bottom = Detail & Priority

  • Higher-level items (Activities/Tasks) at the top

  • Most detailed stories at the bottom

✅ Drag stories, tasks, or activities to re-prioritize. The map automatically reorganizes.

🎯 Best Practice: Prioritize by value, not just effort. Ask: “Which step delivers the most value to the user?”

---

✅ Step 9: Define Release Slices (Horizontal Cuts)

• Imagine slicing the map horizontally across the columns.

• Each slice represents a release or iteration.

Example:

• Release 1 (MVP): Browse Products + Add to Cart

• Release 2: Checkout + Payment

• Release 3: Track Order + Leave Review

🛠️ How to do it:

• Use color-coding or tags to label each slice.

• Use sticky notes or text annotations to define release scope.

📊 Visual Tip: Use different background colors per release to make it clear.

---

✅ Step 10: Enhance with Visual & Collaboration Features

Feature	How to Use	Benefit
Drag & Drop	Reorder activities, tasks, stories	Fast, intuitive prioritization
Inline Editing	Double-click any card	Quick updates
Ad-hoc Add	Hover over a cell → “+” appears	Add stories on the fly
Automatic Layout	Auto-adjusts after edits	Clean, readable map
Color Coding / Tags	Assign colors to stories (e.g., high priority, blocked)	Visual status tracking
AI Assistance (v2024+)	Click “Generate Stories” → AI suggests stories based on tasks	Speeds up backlog creation
Import from Other Tools	Import from Use Case, BPMN, Mind Maps	Reuse existing models
Integration with Scrum Canvas	Link to Sprint Planning, Backlog Refinement	Full agile lifecycle support

---

🔹 Best Practices & Guidelines

Practice	Why It Matters
Start with the user journey	Focus on real user behavior, not technical features.
Keep activities high-level and user-focused	Avoid technical jargon. Use “As a user…” language.
Use 3-level structure for simplicity	Easier to manage; ideal for most teams.
Limit stories to 1 sprint	Ensure each story is small enough to be completed in a sprint.
Review and update regularly	The map evolves as the product grows.
Involve the whole team	Developers, QA, UX, POs — all perspectives matter.
Use the map in sprint planning & backlog grooming	It’s not just a planning tool — it’s a living document.

---

🔹 Real-World Example: E-Commerce App

Let’s walk through a 3-level story map for an e-commerce app:

Horizontal Axis (Journey)	Vertical Axis (Detail)
1. Browse Products • Search • Filter • Sort • View details	– As a shopper, I want to search products by name so I can find what I need. – As a shopper, I want to filter by category and price so I can narrow results.
2. Add to Cart • Select size/quantity • Add item	– As a shopper, I want to select product size and quantity before adding to cart.
3. Checkout • Enter shipping info • Choose payment method • Confirm order	– As a shopper, I want to enter my shipping address so I can receive my order.
4. Track Order • View status • Get notifications	– As a shopper, I want to track my order in real-time so I know when to expect delivery.
5. Leave Review • Rate product • Write feedback	– As a shopper, I want to rate and review a product so I help others make decisions.

🎯 Release Planning:

• MVP (Release 1): Browse Products + Add to Cart

• Release 2: Checkout + Payment

• Release 3: Track Order + Leave Review

---

🔹 Pro Tips & Advanced Features

• ✨ Use AI to Generate Stories: In newer versions, right-click a task → “Generate Stories” → AI suggests 5–10 relevant stories.

• 📥 Import from Use Cases: Reuse existing use case diagrams to jumpstart your story map.

• 📊 Export as PDF or Image: Share with stakeholders or include in sprint reviews.

• 🔄 Link to Backlog: Story Map can be linked to Scrum Board or Backlog in Visual Paradigm for seamless execution.

• 🧩 Use Templates: Save common story maps (e.g., login flow, onboarding) as templates for reuse.

---

🔹 Conclusion: Make Your Backlog Meaningful

User Story Mapping in Visual Paradigm transforms chaotic backlogs into strategic, visual roadmaps that:

• Align teams around user value

• Enable data-driven prioritization

• Support iterative delivery

• Foster transparency and collaboration

🏁 Final Thought:
A story map isn’t just a backlog—it’s a conversation starter, a planning tool, and a promise to deliver real user value.

---

✅ Start mapping today — turn your backlog into a masterpiece of user value.
✨ Your product journey begins with a single story, and ends with a map that guides the way.
